Survey Pro Reference Manual

R-88

Points on DTM Layer

Job View DTM Points….

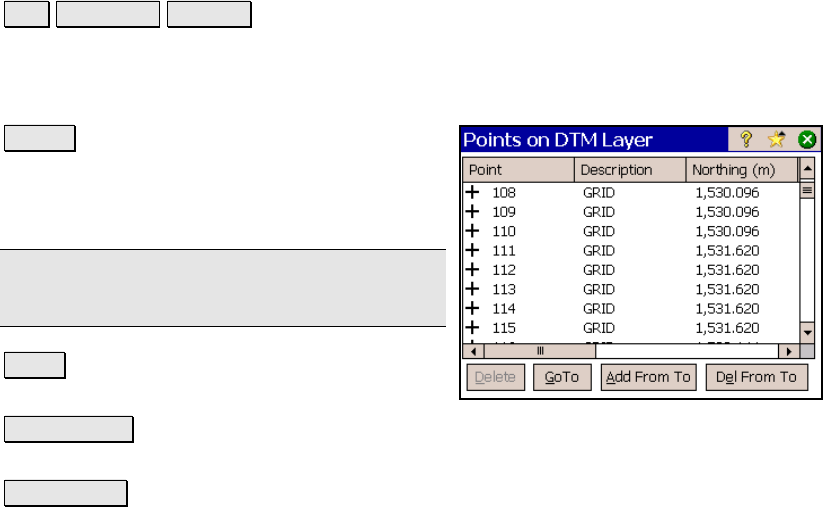

The Points on DTM Layer screen displays all the points on the DTM

layer and allows you to add points from another layer or delete (move)

points to a different layer.

Delete : will move the selected point(s) to the

Auxiliary layer. If the Auxiliary layer is not

specified, you will be prompted to select the

layer to move the points to.

Note: Points on a boundary or break-line

cannot be deleted.

GoTo : will quickly find and select the

specified point.

Add From To : opens the Select Point(s) screen where a point range

can be entered. The points will then be moved to the DTM layer.

Del From To : opens the Select Point(s) screen where a point range

can be entered. The points will then be moved to the Auxiliary layer.
