Survey Pro Reference Manual

R-76

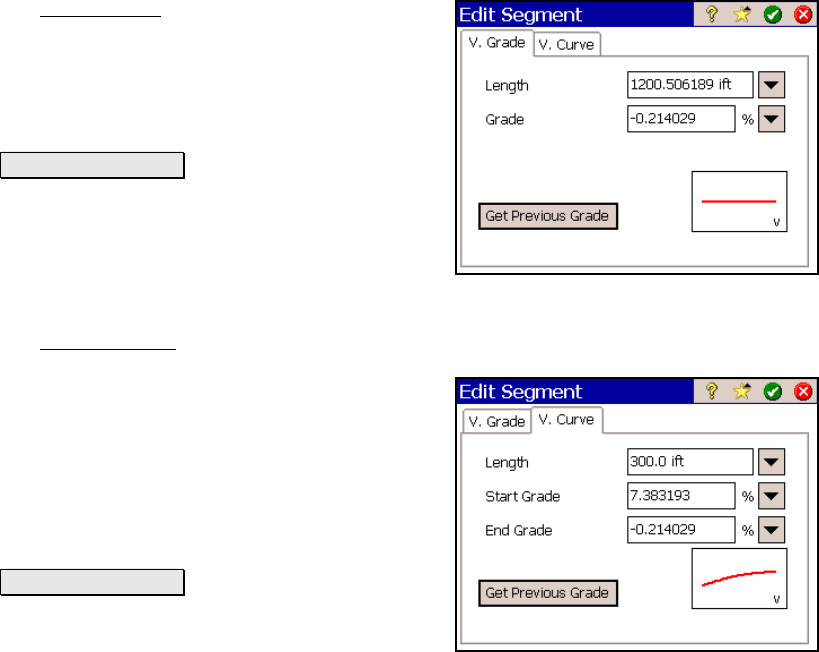

Edit Segment – Vertical Line Card (Grade)

The Vertical Line card is used to enter a

segment with any grade.

Length: is the horizontal length of the

segment.

Grade: is the grade (slope) of the segment.

Get Previous Grade : will automatically enter a

grade equal to the grade at the end of the

previous segment.

Edit Segment – Vertical Curve

The Vertical Curve card is used to enter a parabolic vertical curve to

the alignment.

Length: is the horizontal length of the vertical

curve.

Start Grade: is the starting grade of the

vertical curve.

End Grade: is the ending grade of the vertical

curve.

Get Previous Grade : will automatically enter a

Start Grade equal to the grade at the end of the

previous segment.
