Start Station: is the station on the alignment that corresponds with
the starting location or point.

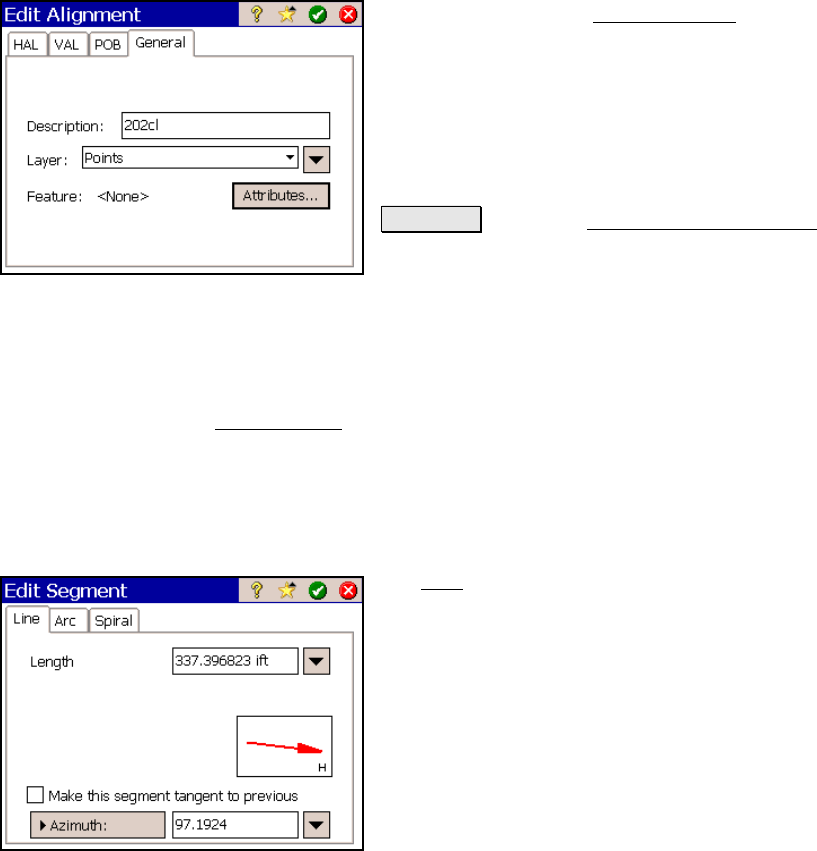

Edit Alignment Screen – General Tab
The General tab in the Edit Alignment screen
is used to describe the alignment and select the
layer where it is located.
Description: is the description of the
alignment.
Layer: is the layer where the alignment will be
located.
Attributes : opens the Point Feature Attributes
screen (Page R-63) where the feature attributes
for the alignment can be selected.
Edit Segment
The Edit Segment screen is accessed anytime an existing horizontal
or vertical segment is added or edited. A variety of segment editing
screens are possible depending on the type of segment being edited or
created. Each segment editor is discussed below.
Edit Segment – Line Card
The Line card is used to add a straight
horizontal line segment in the alignment.
Length: is the horizontal length of the line.
; Make this segment tangent to previous:
When checked, the specified line will be
tangent to the ending tangent of the previous
segment.
