Miscellaneous Screens

R-447

Edit Description List

(from any Description field), Edit Description List…

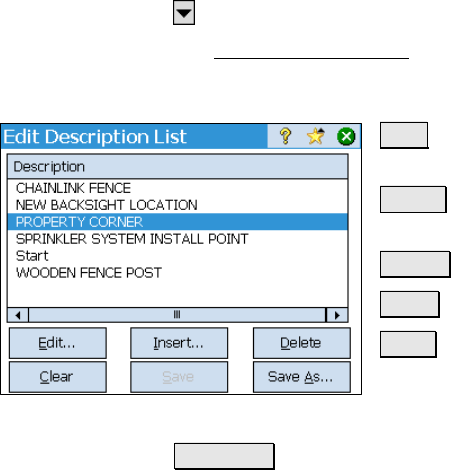

The Edit Description List

screen is used to modify the contents of the

drop-down description list, which is optionally displayed next to any

Description field. You can also save the list to a file.

Edit : Opens the selected description in a

screen where you can modify it.

Insert : Opens a screen where you can add a

new description.

Delete : Deletes the selected description.

Clear : Deletes all the descriptions in the list.

Save : Saves the list to the current description

text file. This is only available when the list

only contains the descriptions in the current

non-code description file.

Save As… : Saves the contents of the list to a new description text

file.
