Roads Menu

R-431

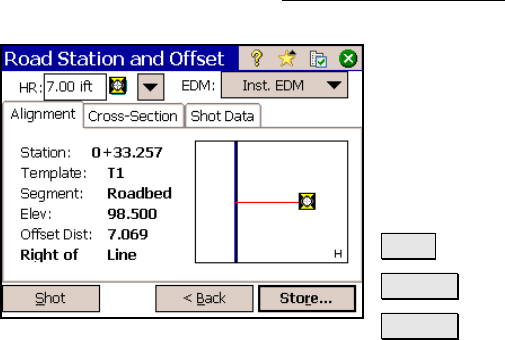

Road Station and Offset – Screen

Two

The second Road Station and Offset screen is used to take a shot to

the prism and view the data from various cards.

Height of Rod: is the length of the rod.

EDM: This button can be toggled to shoot in

various EDM modes. The options available

depend on the total station being used.

Consult the total station’s documentation for

more information on the EDM modes that it

supports.

Shot : takes a shot to the prism.

< Back : returns to the previous screen.

Store… : stores the stake point.

Alignment Card

Station: displays the station at the rod position.

Template: displays the name of the template that is used at the rod

position.

Segment: displays the name of the template’s segment at the rod

position.

Elev: displays the elevation at the rod position.

Offset Dist: displays the perpendicular offset from the centerline to

the rod position.

Right of Line / Left of Line / On Line: displays if the rod position is

to the right of the centerline, left of the centerline, or on the

centerline, respectively.
