Roads Menu

R-427

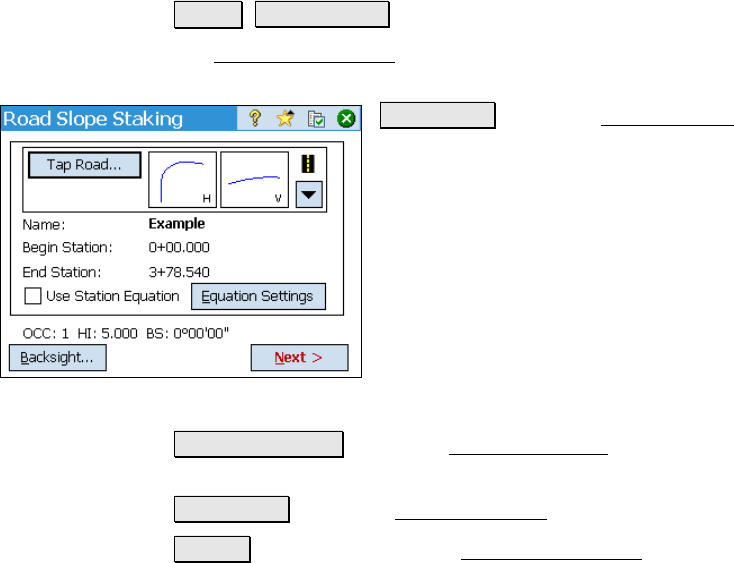

Road Slope Staking

Roads Slope Staking.

The Road Slope Staking screen is used to locate the catch point of the

road at any station.

Tap Road… : opens the Tap on a Road screen

where you can tap on any road in the job to

select it.

Name: displays the name of the selected road.

Begin Station: displays the station assigned to

the beginning of the road.

End Station: displays the final station in the

road.

Use Station Equation: When checked, the

current station equation will be applied to the

road.

Equation Settings : opens the Station Equation screen (Page R-433)

where a station equation can be configured.

Backsight… : opens the Backsight Setup screen (Page R-122).

Next > : takes you to the next Road Slope Staking screen where the

slope staking parameters are set up.
