Roads Menu

R-421

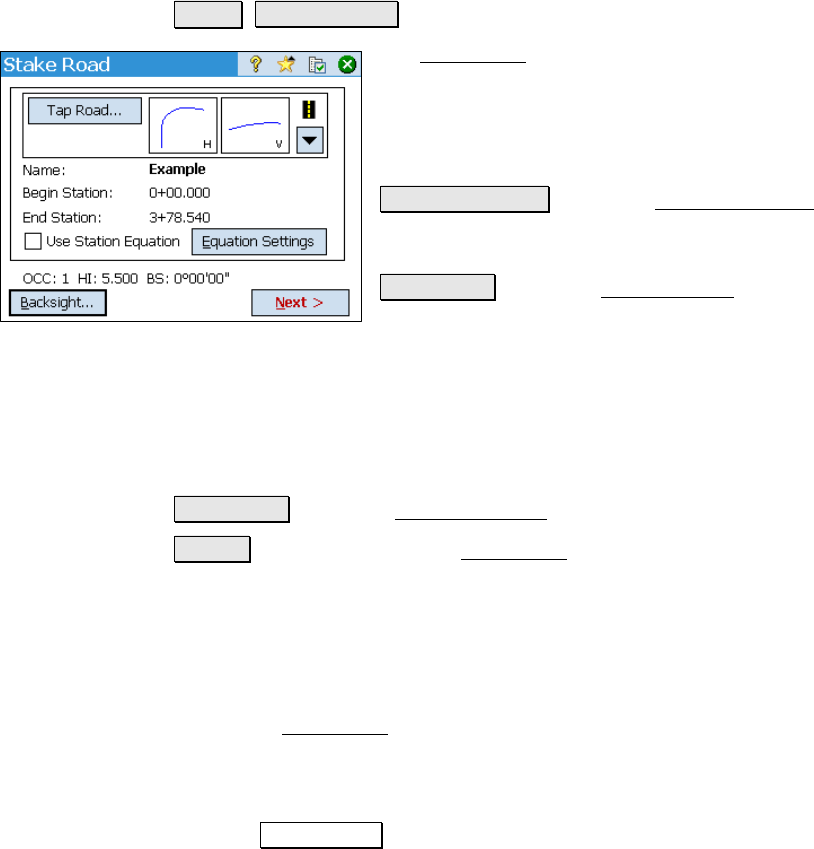

Road Stakeout

Roads Road Stakeout.

The Stake Road screen is used to stake any

segment of a road profile at any station.

Use Station Equation: When checked, the

current station equation will be applied to the

road.

Equation Settings : opens the Station Equation

screen (Page R-433) where a station equation

can be configured.

Tap Road… : opens the Tap on a Road screen

where you can tap on any road in the job to

select it.

Name: displays the name of the selected road.

Begin Station: displays the station assigned to the beginning of the

road.

End Station: displays the final station in the road.

Backsight… : opens the Backsight Setup screen (Page R-122).

Next > : takes you to the next Stake Road screen where a specific

point on the road can be selected to stake.

Stake Road – Screen Two

The second Stake Road screen displays a cross-sectional profile view

of the road at the current station. Any particular point on this view

can be selected and staked.

Station Interval: is the value that is added to the Station to Stake

after the Next Station button is pressed.
