Survey Pro Reference Manual

R-402

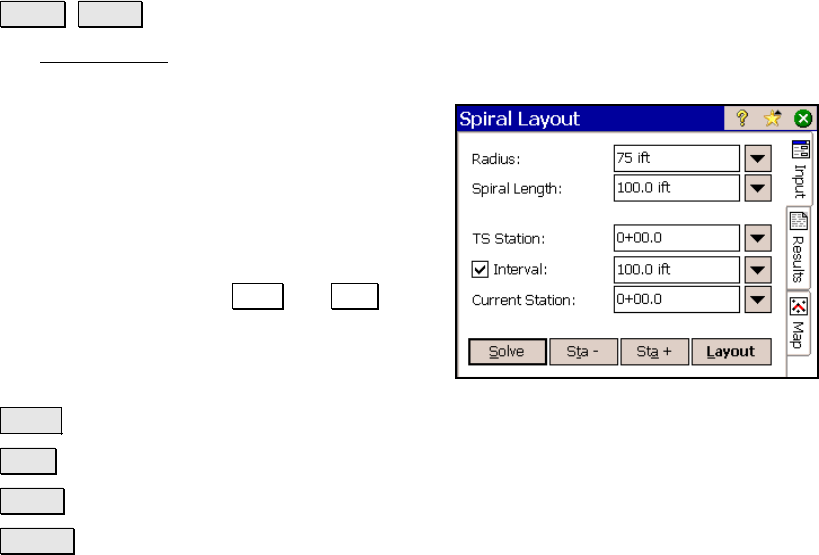

Spiral Layout

Curve Spiral.

The Spiral Layout screen is used to compute station locations on a

spiral curve.

Radius: is the radius of the circular curve.

Spiral Length: is the length along the spiral

curve from TS to SC.

TS station: is the station at the TS point.

; Interval: When checked, is the spiral arc

distance that is added or subtracted from the

Current Station using the Sta + and Sta –

buttons.

Current Station: is the station on the curve

that is computed.

Solve : solves and displays the details for the specified spiral curve.

Sta - : decreases the Current Station by the specified Interval.

Sta + : increases the Current Station by the specified Interval.

Layout : computes the location of the Current Station.

Results

Station: is the current station.

Deflection: is the horizontal angle to the current station as if

occupying the TS and backsighting the Spiral PI.

Long crd.: is the chord length from the TS to the current station.

Short crd.: is the chord length from the previous station to the

current station.
