Curve Layout

Curve Curve Layout.

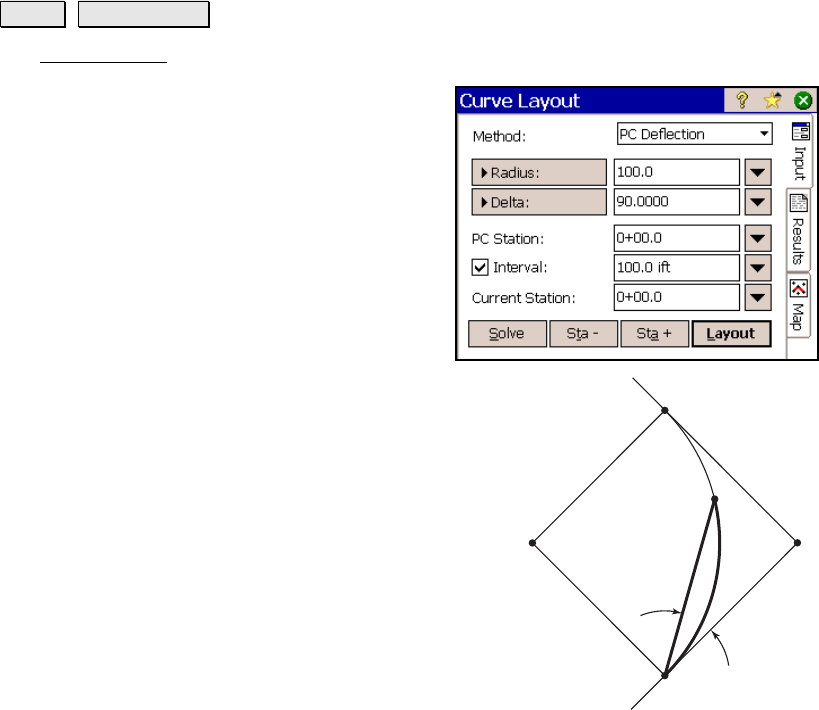

The Curve Layout screen is used to assist in the layout of a horizontal

curve by computing the direction and distance

to points on the curve using a variety of

methods.

Method: The method determines how the

points on the curve are laid out. Each method

is described below.

• PC Deflection: provides deflection angles and

distances to each station on the curve as if

occupying the PC and backsighting the PI.

The results are given in the following format:

o Station: is the current station on the

curve.

o Deflection: is the angle to turn to the

current station.

o Long chord: is the distance from the PC to

the current station.

o Short chord: is the distance from the

previous station to the current station.

Chord

Deflection

Current

Station

PC Deflection
