Cogo Menu

R-377

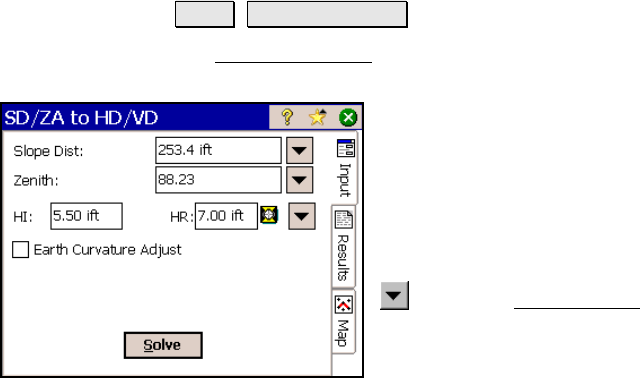

SD/ZA to HD/VD

Cogo SD/ZA to HD/VD.

The SD/ZA to HD/VD screen will convert a slope distance and zenith

angle to an equivalent horizontal distance and vertical distance.

Slope Dist: is the slope distance to be

converted.

Zenith: is the zenith angle to be converted.

HI: is the distance that the total station is

above the ground.

HR: is the length of the rod.

: opens the Smart Target options (Page R-

456).

; Earth Cur

vature Adjust: When checked, the

computed horizontal distance and vertical

distance will account for the curvature of the earth and refraction.
