Reference Manual

Stakeout Menu – GPS & Basic GPS Module
R-339

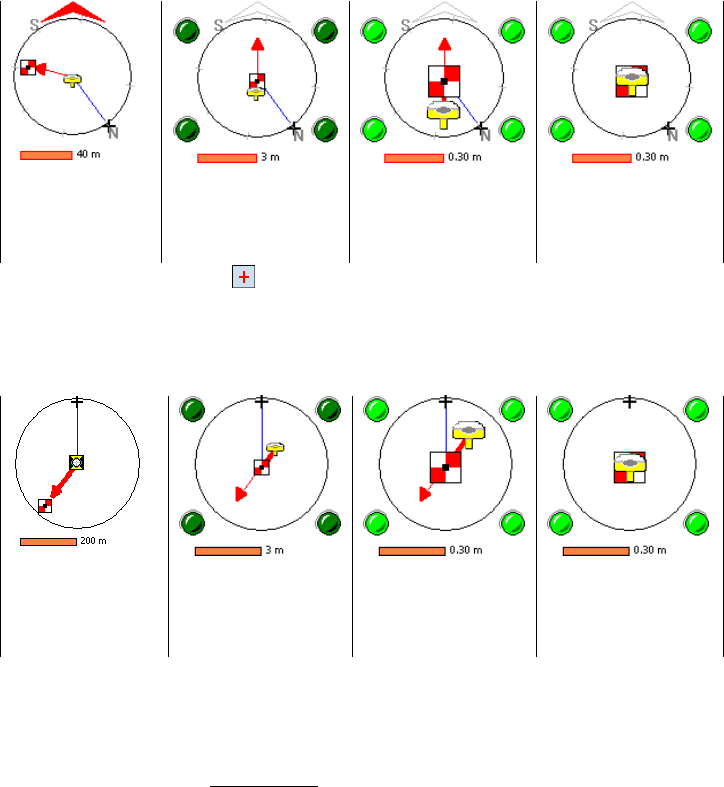

indicator will stop updating to assist you in more precisely locating
the design point as illustrated below.
Rover is greater
than 3 m (10 ft)
from the design
point.
Rover is between 0.3
and 3 m (1 and 10 ft),
from the design point.
Rover is within 0.3 m
(1 ft) of the design
point.
Rover is within the
horizontal tolerance
specified in the
stakeout settings
When using the method, your reference point or azimuth will
always appear at the top of the screen and that is the direction you
should be facing while navigating. Like with the other navigation
method, the graphic will change as you get closer to the design point.
Each graphic is shown below.
Rover is greater
than 3 m (10 ft)
from the design
point.
Rover is between 0.3
and 3 m (1 and 10 ft),
from the design point.
Rover is within 0.3 m
(1 ft) of the design
point.
Rover is within the
horizontal tolerance
specified in the
stakeout settings
GPS Status: displays the current solution type, the number of
satellites used, and the horizontal and vertical precision computed by
the receiver. When this area of the screen is tapped, the epoch count
stops and the GPS Status
screen opens (Page R-176).
Go SOUTH / NORTH: displays the distance the rover must move in a
south or north direction to reach the design point.
Go EAST / WEST: displays the distance the rover must move in an
east or west direction to reach the design point.
