Reference Manual

Survey Pro Reference Manual
R-330
Station Staking – Screen Two
Stakeout Station Staking Next >.

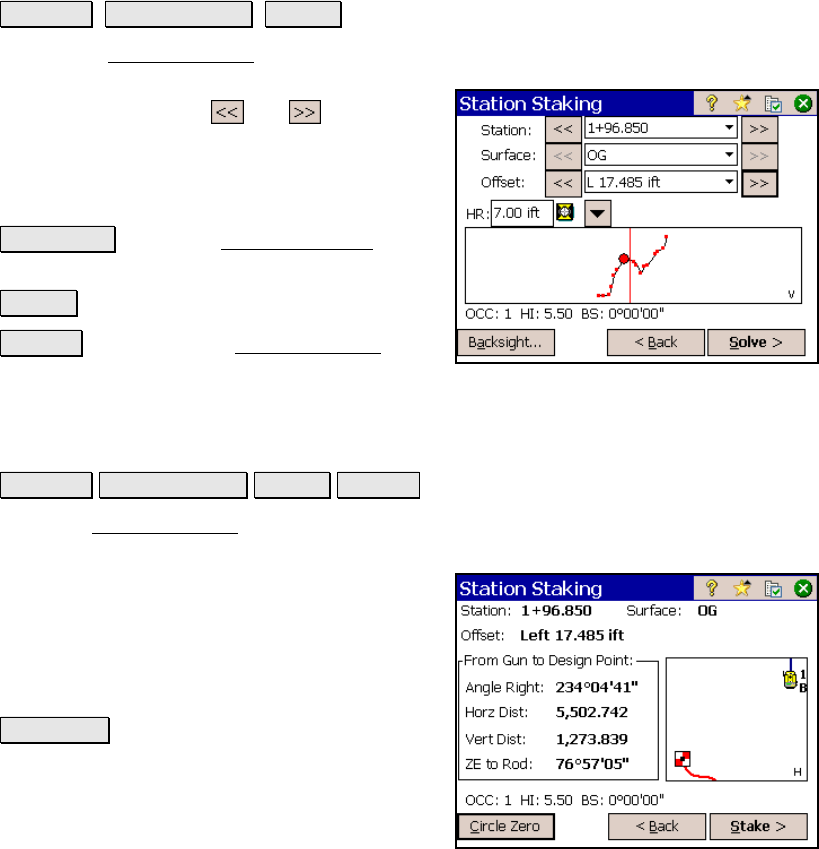

The second Station Staking screen is used to configure which Station,
Surface, and Offset you want to stake.
Use the corresponding
and buttons to
scroll the available Station, Surface, and Offset
that you want to stake.
Height of Rod: is the rod height.
Backsight… : opens the Backsight Setup screen
(Page R-122) where you can set your backsight.
< Back : returns to the previous screen.
Solve > : opens the next Station Staking
screen.
Station Staking – Screen Three
Stakeout Station Staking Next > Solve >.
The third Station Staking screen shows the direction and distance
information from the instrument to the selected stake point.
The Station, Surface, and Offset information is
displayed at the top of the screen.
From Gun to Design Point: lists the direction
and distance information used to aim the total
station toward the stake point.
Circle Zero : is used to modify the circle on the
total station so that the angle right reading
will be zero when it is facing toward the design
point, which can sometimes be easier than
turning to an obscure angle value. When this
button is tapped, the following actions will
occur:
