Reference Manual

Survey Pro Reference Manual
R-24
Export *.CR5 Coordinates

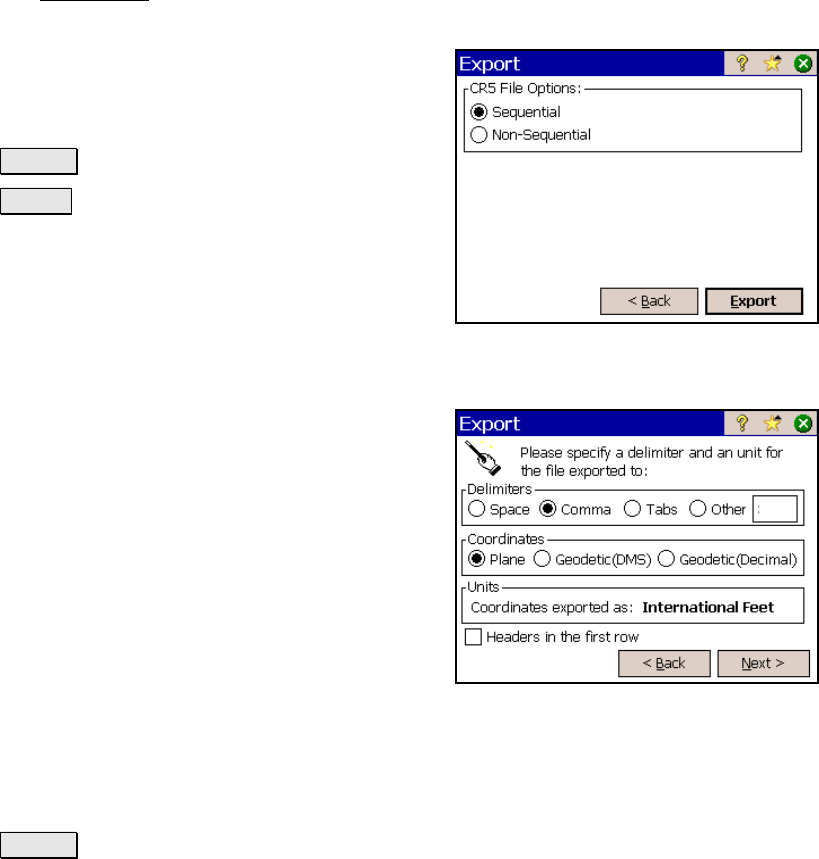

The Export CR5 dialog box will open when exporting coordinates to a
TDS CR5 coordinate file.
CR5 File Options: specifies if the resulting file
should be Sequential or Non-Sequential. (The
HP 48 data collector can only use sequential
coordinate files.)
< Back : returns to the previous screen.
Export : exports the selected coordinates to the
new CR5 file.
Export *.TXT Coordinates
Since the coordinates in an ASCII *.TXT file can be stored in a
variety of formats, two screens are used to define the format of the
resulting file.
Delimiters: is the character that separates
each column of text in the ASCII file.
Coordinates: is used to select if the resulting
coordinates should be plane coordinates,
geodetic coordinates in degrees-minutes-
seconds format, or geodetic coordinates in
decimal format.
Units: are the distance units that will be
written to the resulting TXT file. These units
are automatically set to the same units that
are set for the current job.
; Headers in the first row: When checked, a heading describing
each column is inserted in the first row. For example, the following
header could be inserted:
Name,Northing,Easting,Elevation,Description
< Back : returns to the previous screen.
