< Back : returns to the previous screen.
Store > : opens the next screen.

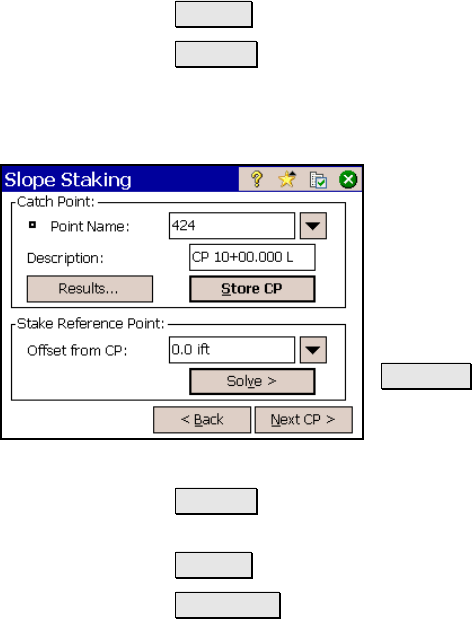

Slope Staking – Screen Five
The fifth screen is used to store a point for the
last shot taken from the previous screen, which
should be located at the catch point.
Point Name: is the name assigned to the
stored point.
Description: is the description assigned to the
stored point.
Store CP : stores the point.
Offset from CP: This field is used if you want
to stake another location that is at the specified
horizontal distance from the catch point away from the road.
Solve > : opens a new screen, described next, used to stake the point
at the offset specified above.
< Back : returns to the previous screen.
Next CP > : returns to the third slope staking screen where the
station to stake can be advanced and the next catch point can be
located.
