Survey Pro Reference Manual

R-250

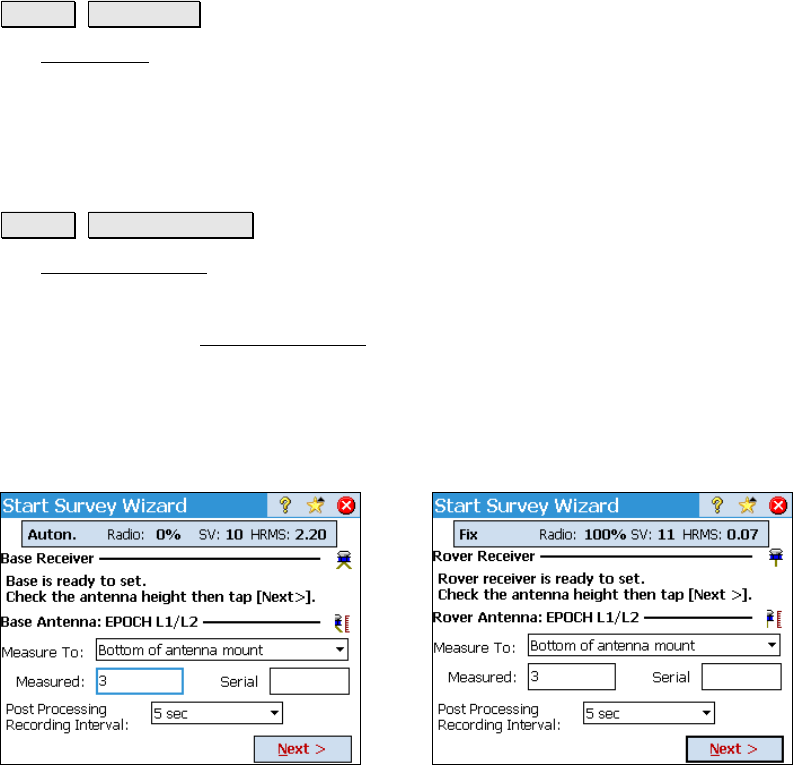

GPS Status

Survey GPS Status.

The GPS Status screens are described starting on Page 176.

Start GPS Survey

Survey Start GPS Survey.

The Start GPS Survey wizard is used to complete the setup necessary

for any RTK GPS Survey. It is opened from the main menu, or any

time you try to access data collection or stake out functions. The

steps to complete the Start GPS Survey

wizard will depend on what

you have already done in the job.

When connecting to the receivers by serial cable, Survey Pro will

detect if it is a base or rover and start the workflow accordingly.

When connecting to either receiver by Bluetooth, you are prompted

for which receiver you are connected to. Each screen is shown below.

Connected to Base Connected to Rover
