File Menu

R-11

Create a New Job 4 – (Imported

Control File)

This screen will only open when a control file is being imported.

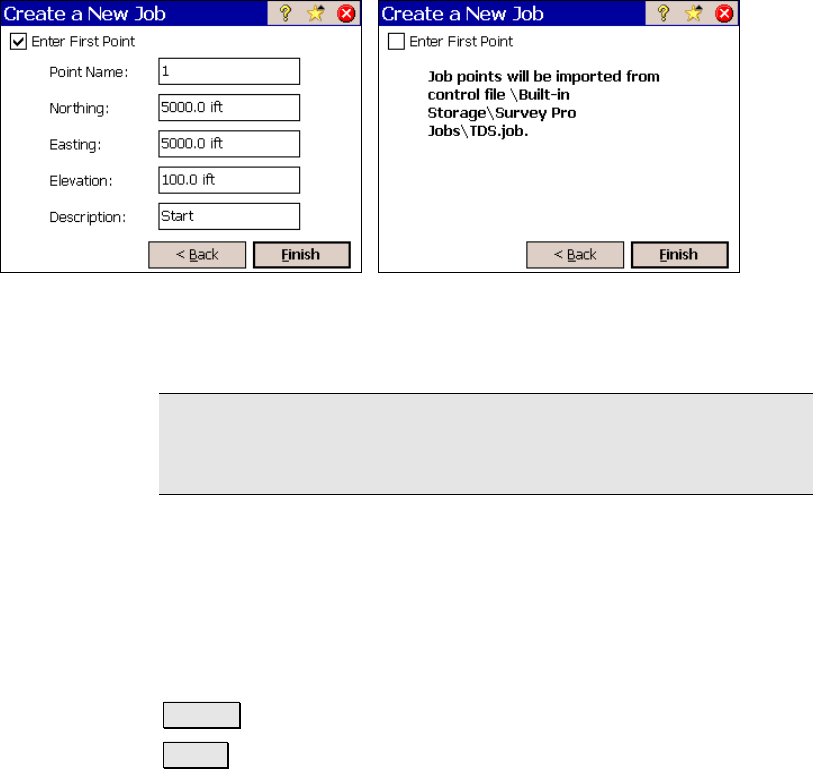

Screen when checkbox is unchecked. Screen when checkbox is checked.

Enter First Point: when this box is checked, the additional fields will

appear allowing you to create a new point.

Note: Although all new jobs must have at least one point, creating a

new point when importing a control file is optional since points are

already being loaded into the job in the form of control points.

Point Name: is the name of the initial point.

Northing: is the Y-coordinate of the initial point.

Easting: is the X-coordinate of the initial point.

Elevation: is the elevation of the initial point.

Description: is the description of the initial point.

< Back : returns you to the previous screen.

Finish : stores a new job file and raw data file using the specified

information.
