Survey Menu – Conventional Mode

R-163

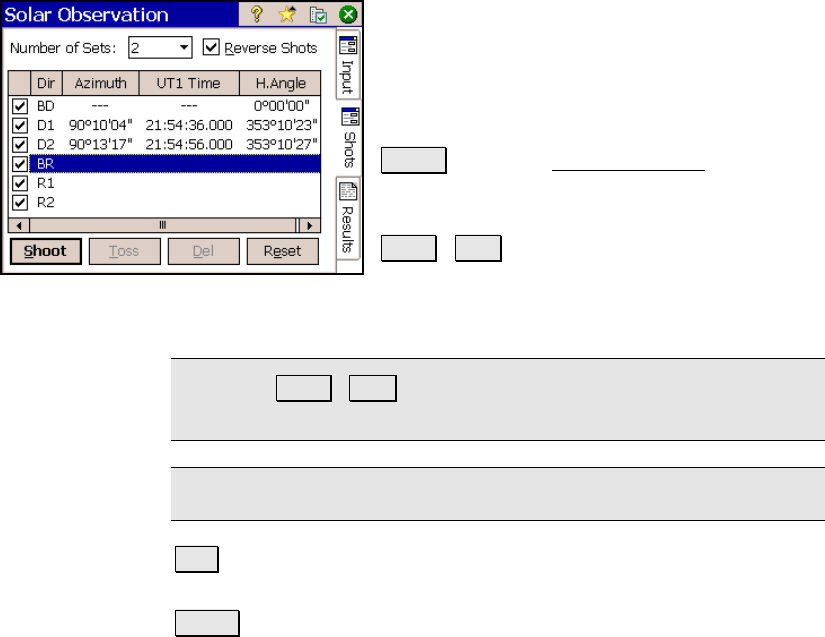

Shots

Number of sets: is the number of sets that will

be taken to the celestial object.

Reverse Shots ;: When checked, reverse

shots will be required with each set. When

unchecked, only direct shots are required.

Shoot : opens the Enter Shot Data screen,

described below, where the shot data is entered

for the selected observation.

Toss / Incl : will toggle the selected

observation so that it will be hidden or un-

hidden, respectively. When an observation is hidden, it will not be

used when calculating the final azimuth.

Note: The Toss / Incl buttons perform the same function as

checking / un-checking the checkbox in front of each observation.

Note: A backsight observation cannot be tossed.

Del : permanently deletes the most current observation if it is

selected allowing you to shoot that shot again.

Reset : permanently deletes all observations. A warning prompt will

appear before the observations are deleted.
