Record Mode

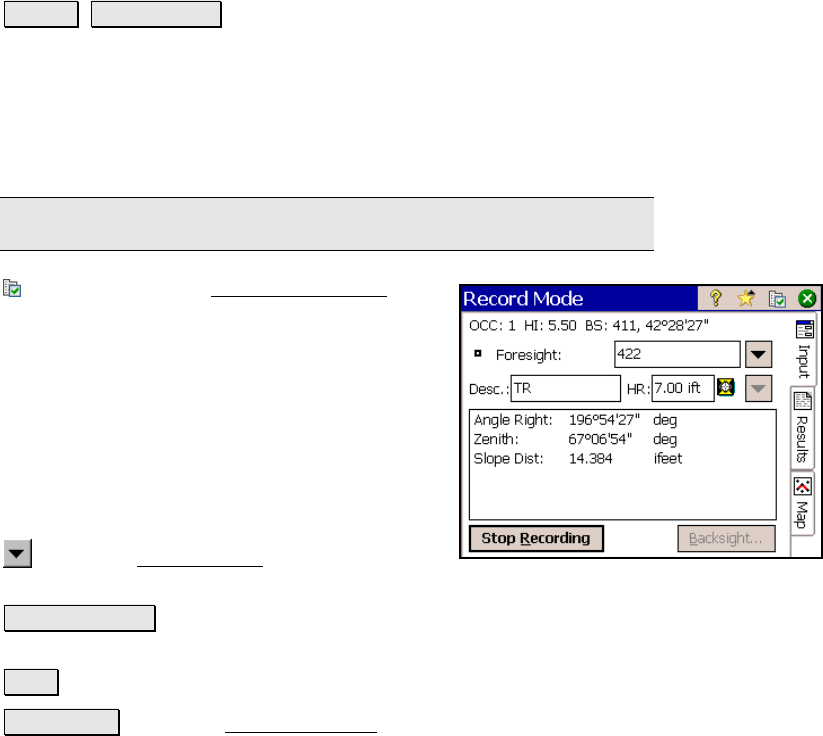

Survey Record Mode.

When running in Record Mode, all control of the total station is

performed from the total station’s keypad. The data collector will

simply log each shot that is taken from the total station.

This routine is typically used for topo work, where the total station

remains over a single occupy point during all shots.

Note: Not all total stations support record mode.

: is a shortcut to the Surveying Settings

screen (Page R-44).

Foresight: is the

point name that will be used

when storing the next point. Once a point is

stored, it will be incremented to the next

available point.

Description: is the description for all the shots

that are stored.

HR: is the length of the rod.

: opens the Smart Target options (Page R-

456).

Start Recording : starts recording all shots performed from the total

station.

Stop : stops record mode.

Backsight… : opens the Backsight Setup screen (Page R-122) where

the current backsight can be modified.
