Distance Offset Shot
Survey Distance Offset.

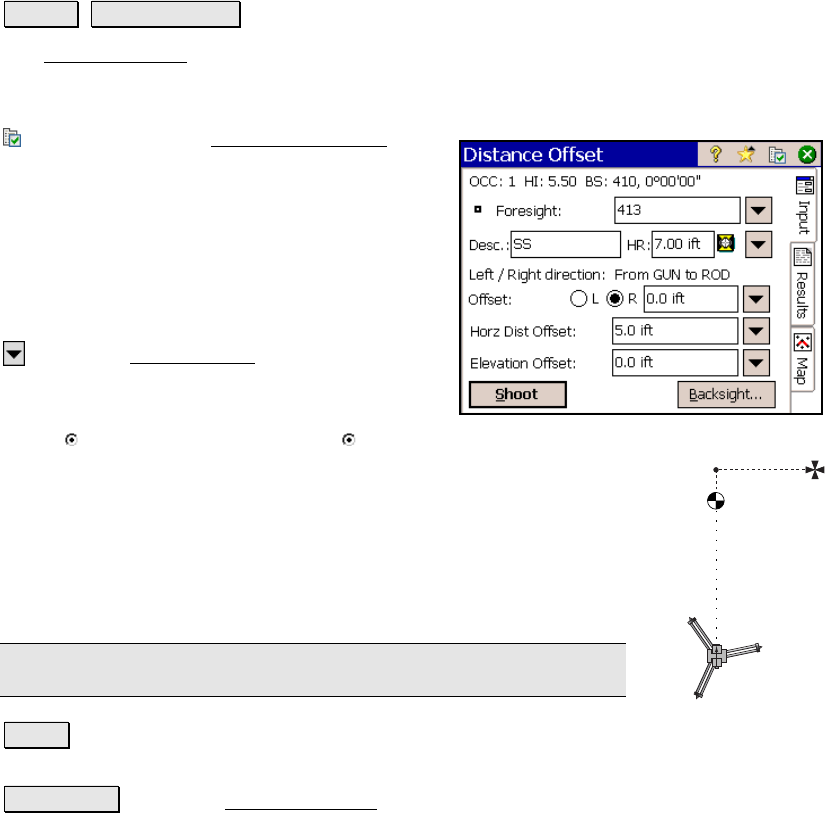

The Distance Offset screen is used to store a new point that is a
known distance away from the rod location. This screen is useful
when the rod cannot occupy the new point’s location.
: is a shortcut to the Surveying Settings
screens (Page R-44).
Foresight: is the point na
me that will be
stored.
Description: is the description for the offset
shot that is stored.
HR: is the length of the rod.
: opens the Smart Target options (Page R-
456).
Offs
et: is the offset distance that is to the left
(when
L is selected) or right (when R is selected) of the prism
from the total station’s point of view.
Horz Dist Offset: is the offset distance that is beyond the prism
(positive value) or in front of the prism (negative value) from the
total station’s point of view.
Elevation Offset: is the offset distance that is below the prism
(negative value) or above the prism (positive value).
Note: multiple offsets can be applied simultaneously.
Shoot : will take a shot to the prism, apply the offset(s) entered, and
then store the new point.
Backsight… : opens the Backsight Setup screen (Page R-122) where
the current backsight can be modified.
1_ft back
3_ft right
