Repetition Shots

Survey Repetition Shots.

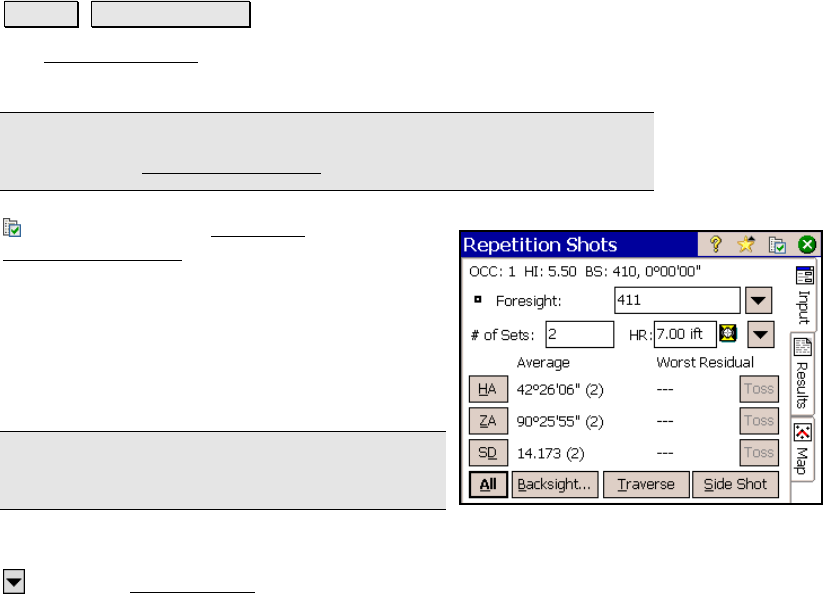

The Repetition Shots screen is used to perform side shots or traverse

shots using any number of repetitions.

Note: The sequence that the repetition shots are performed is

selected in the Repetition Settings screen (Page R-56).

: is a shortcut to the Surveying and

Repetition Settings

screens (Page R-44 and R-

56 respectively).

Foresight: is the name

of the point that will be

stored.

Number of Sets: is the desired number of sets

to shoot to the backsight and foresight.

Note: One set is equivalent to two shots to the

backsight and foresight point.

HR: is the rod height.

: opens the Smart Target options (Page R-456).

Average (of): shows the average angle or distance to the foresight

from all the shots taken. The value in parenthesis is the total

number of repetitions performed.

Worst Residual: displays the worst residual calculated from all the

sets of the selected measurement type.

Description: is the description for the point that is being stored. This

field appears prior to storing the new point.
