Backsight Solved
Survey Backsight Setup Solve….

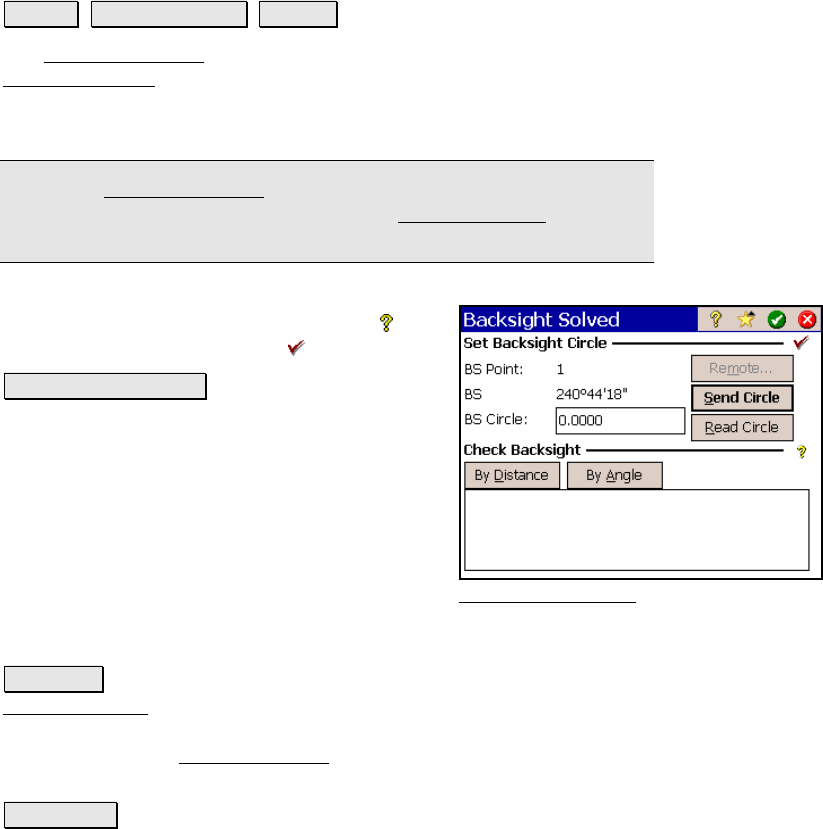

The Backsight Solved screen is automatically opened after solving the
Backsight Setup
screen. It is used to send or read the instrument’s
circle, optionally confirm the backsight location, and optionally store
a new point for the backsight location.
Note: The Backsight Solved screen will not open when the Use Classic
Backsight Setup checkbox is checked in the Survey Settings screen
(Page R-44).
Set Backsight Circle: Once the circle value of
the instrument has been set or read, the
symbol will be replaced with a
.
Store Backsight Point : This button is only
available when the backsight is defined by a
direction instead of a point and is used if you
want to take a shot and store a point for the
current backsight. Once stored, the button will
be replaced by the new point name.
BS Circle: This is the horizontal angle to set in
the instrument. This will usually be zero, but
when Survey with True Azimuths is enabled in the Surveying Settings
screen (Page R-44), this will be the computed azimuth to the current
backsight.
Remote… : when connected to a robotic total station, this opens the
Remote Control screen (Page R-166) to remotely aim the total station.
This is particularly useful when using a fixed backsight with a Smart
Target because the Remote Control
screen will then automatically
reflect the prism configuration at the backsight.
Send Circle : This will send the circle entered in the BS Circle field to
the instrument.
