Reference Manual

Job Menu – GPS Module
R-105

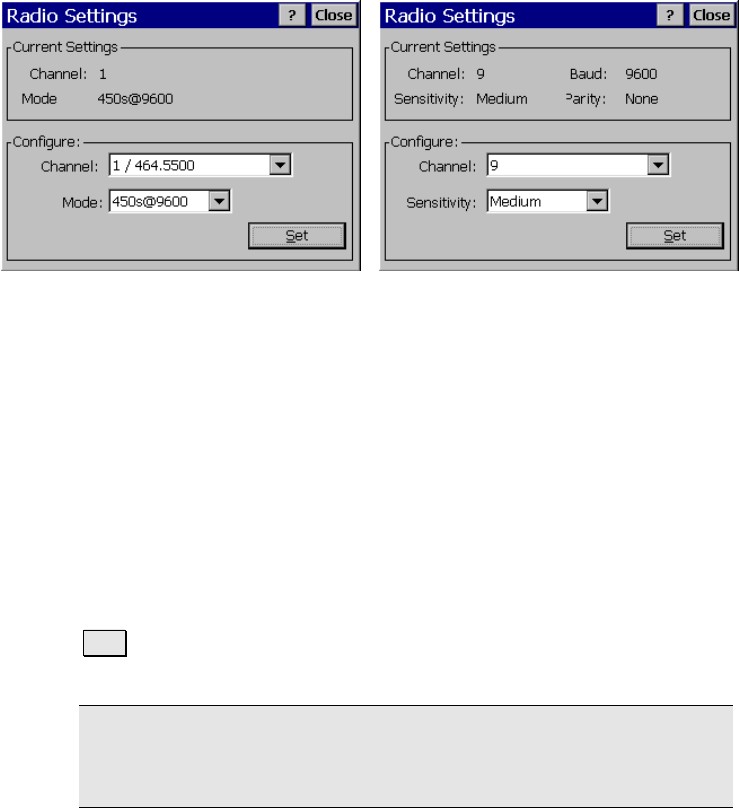

Trimble Internal Radio Pac Crest Radio
Channel: is where you select the channel the radio will use to
communicate with the other radio.
Sensitivity: is where you select the sensitivity of the radio.
Mode: is where you select the transmit format used by the base radio.
The rover radio must be listening for same format the base is
broadcasting.
Baud: displays the baud rate the radio is currently set to. There is
no way for Survey Pro to change this value, so you must set the
receiver to radio communications to match what you see here.
Parity: displays the parity the radio is currently set to.
Set : sends commands to the radio firmware to configure the settings
selected on this screen.
Note: some settings on the radio cannot be modified with Survey Pro.
To fully program the radio modems, you need to PC software that
should be supplied with the radio.
