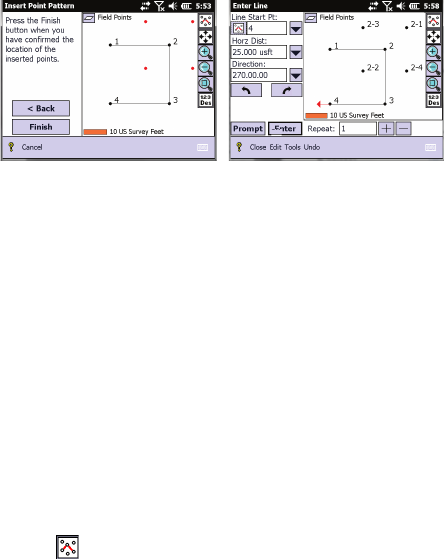

• Tap on the Finish button if you agree (below right),
otherwise tap <Back to redo the placement or select
another point pattern.
The points from the point pattern are named as follows:
<Anchor point name> - <order of creation in point pattern>
Example: “2-2” designates the 2nd point in the point pattern anchored to
point 2 in the plan.
NOTE: The same point pattern may be anchored to
different points in the plan, with different rotation values.
Deleting a Point
Pattern
Points belonging to a point pattern may be deleted
individually using the same procedure as the one used to
delete any other “normal” point.
You can also delete a point pattern in one operation, i.e. you
can delete all its points at once.
• Go to Plan and select Input Plan.
• Tap Edit, then Delete > Del. Pts Pattern.
• Tap on to be able to select a point pattern on the map
with the stylus.
• Tap on any point part of the pattern, including the anchor
point (a point part of the pattern will appear in red, the
anchor point in blue).
• Tap ok at the bottom of the screen. Layout Pro will
highlight all the points concerned, including the anchor
point (which however will NOT be deleted as a point).
• Tap on the Delete button if you agree.
