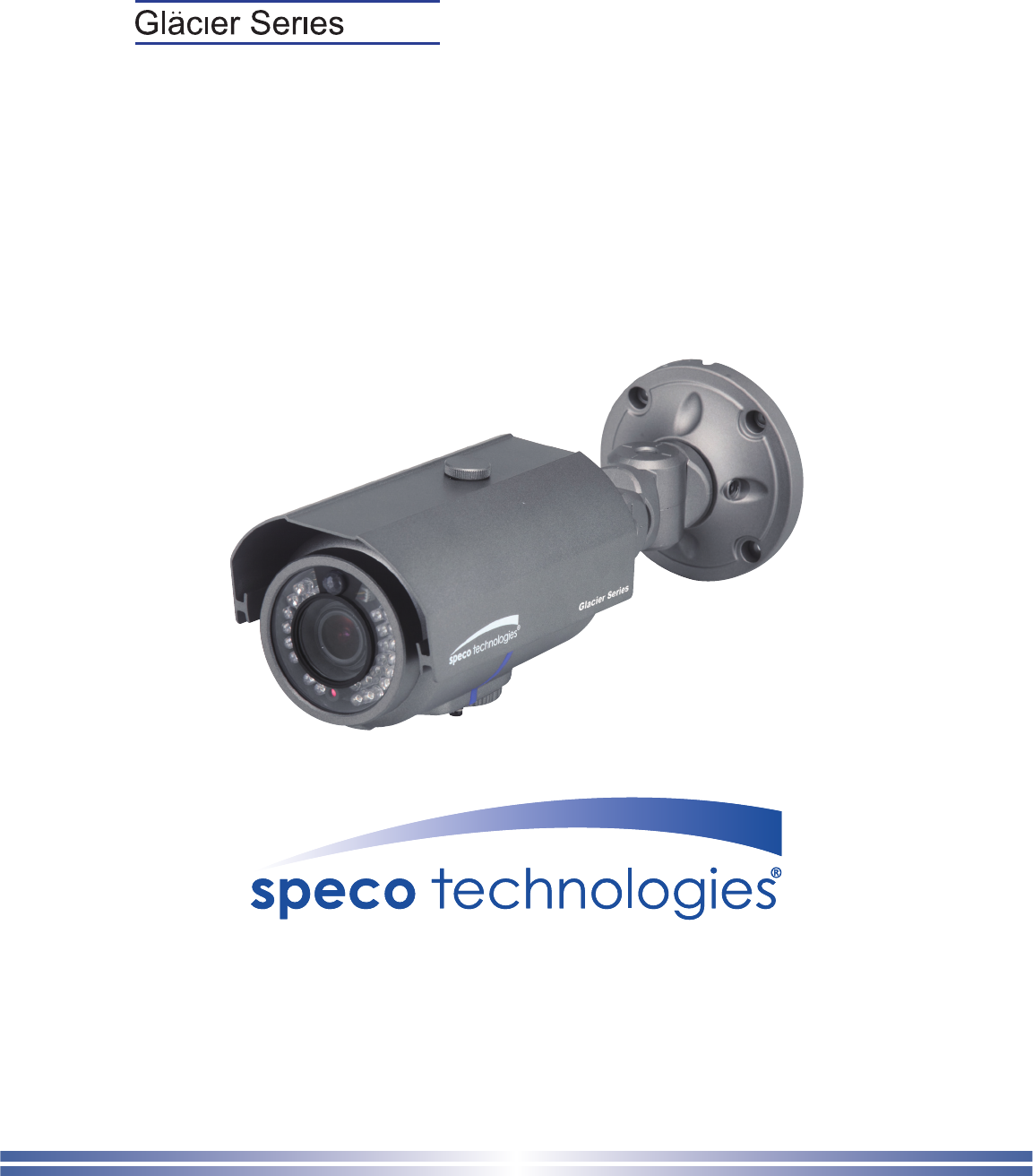

INSTRUCTION MANUAL PIR Sensor Camera HT5100BPVFG / HT5100BPVFGW HT5200BPVFG / HT5200BPVFGW Speco Technologies is constantly developing product improvements. We reserve the right to modify product design and specifications without notice and without incurring any obligation. 1 Rev.
Contents ◑ Contents....................................................... 1 ◑ Precautions.................................................. 2, 3 ◑ Safety Instructions....................................... 4 ◑ Package Contents........................................ 5 ◑ Camera Installation...................................... 6-8 ◑ Specifications............................................... 9,10 ◑ Camera Dimension...................................... 11 ◑ Features......................................
Precautions Do not install the camera in extreme temperature conditions. Only use the camera under conditions where temperatures are between -10°C and +50°C. Be especially careful to provide ventilation when operating under high temperatures. Never keep the camera pointed directly at strong light. It can cause malfunctions to occur. Do not install the camera under unstable lighting conditions. Severe lighting change or flicker can cause the camera to work improperly.
CAUTION CAUTION CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN RISK OF ELECTRIC SHOCK RISK OF DOELECTRIC NOT OPENSHOCKCAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT OPEN DO NOT REMOVE COVER(OR BACK). CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK USER-SERVICEABLE PARTS INSIDE. CAUTION:TO REDUCE THE RISK OF ELECTRIC NO SHOCK DO NOT REMOVE COVER(OR BACK). DO NOT REMOVE COVER(ORREFER BACK).SERVICING TO QUALIFIED SERVICE PERSONNEL. NO USER-SERVICEABLE PARTS INSIDE. NO USER-SERVICEABLE PARTS INSIDE.
Safety Instructions Precautions for use ◑ This camera should be installed by qualified personnel only ◑ There are no user serviceable parts inside ◑ Do not disassemble this camera other than to make initial adjustments ◑ Use a UL approved regulated 24 volt AC or 12 volt DC power supply ◑ Use appropriate low voltage power cable to prevent fire or electrical shock ◑ Please insure that your installation area can support the weight of the camera Please handle this camera carefully : ◑ Do not use a strong
Package Contents Please make sure that the following items are included in the Package: 1) HT5100BPVFG, HT5100BPVFGW, HT5200BPVFG, HT5200BPVFGW • 1 Video Test Connector, Power Jack • 1 Bracket Base • 2 Wrenches • Set Screw - 4 Tapping Screws 4x25 - 4 Hexagon Socket Screws M5x10 5
CAMERA INSTALLATION jvuulj{Gwv~lyGjhislG XUG~oluG|zpunGXYG}vs{zGkjGOGG\WWGhPG wGpGaylk jGaGORP kjGXY}GwGz YUG~oluG|zpunGY[G}vs{zGhjGO[WG}GhP ylkORP hjGY[} ishjraOTP wGz ZUGjvuulj{G}pklvGjhislG T jvuulj{GiujGjhislG{vG{olGiujGqhjrUG [UGjvuulj{GhGGOy GP T jGORGSGjvtPGGwGGGOTUGjvtPGG uGGGlGhGkGGtG kGG˄vu˅GGGU R wGhGkG jvtG
CAMERA INSTALLATION Compatibility 1) HT5100BPVFG, HT5100BPVFGW, HT5200BPVFG, HT5200BPVFGW CVCJBB INTJBS 7 INTCM
CAMERA INSTALLATION 1.
PIR Sensor Weatherproof Bullet Camera DC Auto Iris Varifocal Lens(2.8mm-12mm) ■ HT5100BPVFG ■ HT5100BPVFGW 600TV Lines DC Auto Iris Varifocal Lens(2.
PIR Sensor Weatherproof Bullet Camera DC Auto Iris Varifocal Lens (5mm-50mm) ■ HT5200BPVFG ■ HT5200BPVFGW 600TV Lines DC Auto Iris Varifocal Lens(5mm-50mm) True Day / Night Capability 850nm IR LEDs * 24pcs White LEDs * 6pcs Automatic Thermostatic Sensor Alarm Output SPECIFICATIONS MODEL Image Pick-Up Device TV System Total Pixels Effective Pixels Scanning Frequency Scanning System Synchronization Resolution Minimum Illumination S/N Ratio Video Output Electronic Shutter Speed OSD SSDR BLC Day & Night Gain
CAMERA DIMENSION 1) HT5100BPVFG, HT5100BPVFGW, HT5200BPVFG, HT5200BPVFGW 3.70” 4.17” 6.30” 11 9.
General Features ◑ Ultra High Sensitivity - The built-in high sensitivity COLOR CCD produces a clear image even in 0Lux(B/W, IR-LED ON)or lower illumination. ◑ 600TV Lines - By adopting a diagonal 6mm(1/3") 410,000 (NTSC) pixel, 470,000(PAL) pixel SONY CCD, the camera produces clear picture quality with a horizontal resolution of 600 TV lines for color and a horizontal resolution of 700TV lines for BW mode.
OSD Control Button 1. Type A, Type B, Type C of OSD button could be used when it needs to OSD control. 2. Type D is extra Option (wired Remote controller) ▲ Up button: Moves the cursor upwards. Use this button to select an item or adjust the parameters. ▼ Down button: Moves the cursor downwards. Use this button to select an item or adjust the parameters. ◀ Left button: Moves the cursor to the left. Use this button to select or adjust the parameters of the selected item.
● Menu Setup 1. Press the Function Setup switch. - Main setup menu is displayed on the monitor screen. MAIN SETUP 1.LENS 2.EXPOSURE 3.WHITE BAL 4.SSDR 5.BACKLIGHT 6.DNR3 7.DAY/NIGHT 8.SPECIAL 9.EXIT DC ATW OFF OFF ON AUTO SAVE 2. Select a desired function using the Function Setup switch. - Place the cursor over a desired item. 3. Set up a selected item by using the Function Setup switch. 4. To finish the setting, select 'EXIT' and press the Function Setup switch.
- FOCUS ADJ : To adjust the DC lens focus correctly, you must activate the Focus Settings mode under each lens menu. Activate the Focus Settings mode, adjust the lens focus, and then deactivate the settings mode. ☞ NOTE ■ If color rolling occurs when using a DC lens, set Shutter to Fixed (---). ● Exposure Setting MAIN SETUP 1.LENS 2.EXPOSURE 3.WHITE BAL DC ATW 1. When the SETUP menu screen is displayed, select 'EXPOSURE' by using the Function Setup Switch. 2.
◆ AGC(AUTO GAIN CONTROL) : The higher the gain level, the brighter the screen - but the higher the noise. * OFF : Deactivates the AGC function. * LOW : Allows automatic gain control from 5.3dB to 32dB. * HIGH : Allows automatic gain control from 5.3dB to 37dB. ◆ SENS-UP : When it is night or dark, the camera automatically detects the light level and maintains a clear picture if this mode is activated. * OFF : Deactivates the SENS-UP function. * AUTO : Activates the SENS-UP function.
※ Select one of the following 5 modes, as appropriate for your purpose. ◆ ATW : Select this when the color temperature is between 1,700˚K and 11,000˚K. ◆ OUTDOOR : Select this when the color temperature is between 1,700˚K and 11,000˚K. (sodium light inclusion) ◆ INDOOR : Select this when the color temperature is between 4,500˚K and 8,500˚K. ◆ MANUAL : Select this to fine-tune White Balance manually. Set White Balance first by using the ATW or AWC mode.
● Backlight Setting Unlike conventional cameras, the HT5100BPVFG and HT5200BPVFG are designed to deliver a distinctive subject and background at the same time, even when the subject is backlight, by using the features of the proprietary W-V DSP chip. 1. When the SETUP menu screen is displayed, select 'BACKLIGHT' by using the Function Setup switch so that the arrow indicates 'BACKLIGHT'. MAIN SETUP 1.LENS 2.EXPOSURE 3.WHITE BAL 4.SSDR 5.BACKLIGHT 6.DNR3 7.DAY/NIGHT 8.SPECIAL 9.
BLC SETUP LEVEL TOP BOTTOM LEFT RIGHT HLC SETUP LOW 38 109 54 121 LEVEL MIDDLE LIMITS NIGHT ONLY MASK COLOR BLACK MASK TONE 1 TOP 5 BOTTOM 120 LEFT 5 RIGHT 172 Press Set to Return Press Set to Return ☞ NOTE ■ Because there can be a difference in the effectiveness of HLC according to the amount of light area in the screen, optimize the installation angle for the best HLC performance. ■ When dark, the HLC is only activated when a bright light exceeding a specific size in NIGHT ONLY mode.
3. Set the DNR3 mode to 'ON' and press the Function Setup switch. Then you can adjust the noise reduction level. ☞ NOTE ■ You cannot set the DNR3 to ‘ON’ or ‘OFF’ when the AGC mode of the EXPOSURE menu is ‘OFF’. ■ When adjusting the noise reduction level in the DNR3 mode, remember that the higher the level set, the more the noise level will be reduced, as will the brightness of the image. ● Day/Night Setting You can display pictures in color or black and white. 1.
◆ AUTO : The mode is switched to 'Color' in a normal environment, but switches to 'B/W' mode when ambient illumination is low. To set up the switching time for AUTO mode, press the Function Setup switch. You can turn on or off the burst signal on B/W mode. AUTO SETUP - BURST MODE : You can turn on or off the burst signal 1.BURST MODE ON on B/W mode. 2.COLOR→B/W DURATION FAST - DURATION : You can select brightness of illumination DWELL TIME 3SEC about changing the day/night mode. 3.
2. Select a desired mode using the Function Setup switch. SPECIAL 1.IMAGE ADJ 2.CAM TITLE 3.SYNC 4.MOTION DET 5.PRIVACY 6.DIS 7.COMM ADJ 8.LANGUAGE 9.RETURN OFF INT OFF OFF OFF ENGLISH ◆ IMAGE ADJ. : 1) When the SETUP menu screen is displayed, select 'IMAGE ADJ' by using the Function Setup switch so that the arrow indicates 'IMAGE ADJ'. 2) Select a desired mode using the Function Setup switch. IMAGE SETUP 1.V-REV 2.H-REV 3.D-ZOOM 4.FONT COLOR 5.SHARPNESS 6.MONITOR 7.
☞ NOTE ■ When the V-REV or H-REV mode is enabled, the text on the screen does not flip. ■ If you increase the SHARPNESS level too high, the picture may become distorted or noise may appear. ◆ CAM TITLE : If you enter a title, the title will appear on the monitor. 1) If the SPECIAL menu screen is displayed, use the Function Setup switch so that the arrow indicates 'CAM TITLE'. CAMERA TITLE SETUP 2) Set it to 'ON' by using the Function Setup switch. ABCDEFGHIJKLM 3) Press the Function Setup switch.
☞ NOTE ■ When using AC power at 60Hz(NTSC), 50Hz(PAL), frequency, you can use the L/L type synchronization. ■ When the power is DC 12V, the SYNC menu is fixed to the ‘INT’ mode. ◆ MOTION DET :This product has a feature MOTION DET that allows you to observe movement of 1.SENSITIVITY AREA1 objects in 8 different areas on the screen, 2.AREA MODE ON and the words 'MOTION DETECTED' appear 3.SEL POS L-TOP 4.XPOS 3 on the screen when movement is detected. 5.YPOS 5 Activity can be monitor more efficiently. 6.
1) When the SPECIAL menu screen is displayed, press the Function Setup switch so that the arrow indicates 'PRIVACY'. 2) Set up the mode using the Function Setup switch. - AREA : You can select up to 12 PRIVACY areas. - MODE : Determines whether to use the area selected in the AREA. - MASK COLOR : Determine area color. You can select Green, Red, Blue, Black, White, Gray. - MASK TONE : Adjust the brightness of MASK COLOR. - TOP/BOTTOM/LEFT/RIGHT :Adjust the size and position of the selected area.
Automatic Thermostatic Sensor! 1. Power off under -40 degree, the camera becomes frozen 2. On power on, the first temperature sensor starts working and makes heater work. 3. When the internal temperature in camera goes up to -10 degree, the second temperature sensor starts working and Camera on. In this status the first and second temperature sensor work together. 4.
● Trouble Shooting PROBLEM Northing appears on the screen. POSSIBLE CAUSE ☞Check the power cable, power supply output and video connection between the camera and monitor. ☞Are the camera lens or the lens glass dirty? The image on the screen is dim. Clean the lens / glass with a soft clean cloth. ☞Adjust the monitor controls, as required. ☞If the camera is facing a very strong light, change the camera position. ☞Adjust the lens focus. The image on the screen is dark.
28
▶ MEMO 29
▶ MEMO 30
