INSTRUCTIONS FOR MODELS

92-TS-9000-02

For additional assistance or service please contact:

SPEAKMAN

800-537-2107

customerservice@speakman.com

www.speakman.com

TS-9000

TOOLS AND SUPPLIES

Phillips

Screwdriver

Adjustable

Wrench

Measuring

Tape

Needle

Nose Pliers

Flat Tip

Screwdriver

Thread Seal

Tape

This product is factory equipped with a specific

electric cord and plug to permit connection to a

proper electric circuit. Make sure that the product is

connected to an outlet having the same configuration

as the plug. No adapter should be used with this

product. Do not modify the plug provided — if it will

not fit the outlet, have the proper outlet installed by a

qualified electrician. If the product must be

reconnected for use on a different type of electric

circuit, the reconnection should be made by

qualified service personnel.

DANGER: Improper use of the grounding

plug can result in a risk of electric shock

This product MUST be used with a properly

grounded electrical outlet.

GROUNDING INSTRUCTIONS

IMPORTANT

• Close supervision is necessary when this product is

used by, on, or near children or individuals with

disabilities.

• Use this product only for its intended use as

described in this manual. Do not use attachments not

recommended by the manufacturer.

• Never operate this product if it has a damaged

cord or plug, if it is not working properly, if it has

been dropped or damaged, or dropped into water.

• Keep the cord away from heated surfaces.

• This appliance MUST be plugged directly into a

properly grounded electrical outlet. Extension cords

are NOT permitted. (See Grounding Instructions.)

• Do not throw cigarettes and/or other ignited

materials into toilet.

• This product is an electric appliance, avoid direct

contact with water or other liquids.

• Do not position the product on its side or upside

down while making electrical connections.

• It is not recommended to use other electric

appliances in the same outlet.

• Do NOT reuse any existing water supply hoses,

otherwise it might cause leakage, fire or electrical

shock. Installation of the bidet seat should include

specified components and new water supply hose.

WARNING: To reduce the risk of burns,

electrocution, fire, or injury to persons:

1 Year Limited Warranty

Warranty information can be found at:

www.speakman.com

WARRANTY

IMPORTANT

• Do not install or use the product in wet or damp

locations such as a steam room.

• Ensure the electrical outlet is positioned where it

will not come in contact with water.

• This product is to be used with an electrical system

rated at 110V-120V, 50/60Hz. The circuit must be

capable of supporting a minimum of 15A.

• It is recommended to unplug the unit during

thunderstorms to prevent electrical damage.

• Do not stand on product, seat or seat cover.

• Do not lean against the seat cover when using the

product.

• This product is equipped with a soft-closing seat

cover. Do not push the toilet seat closed, or damage

may occur.

• Do not use any caustic chemicals to clean this

product.

• Exposure to direct sunlight is not recommended.

• Do not connect water supply to a HOT water

supply. Make sure inlet water temperature is

between 37.4~95ºF.

• Do NOT expose the Bidet Seat or Toilet to freezing

conditions.

• If the unit will not be used for an extended period

of time, it is recommended to unplug the electrical

connection, turn of water supplies, and drain any

water present in the Bidet.

• If the unit is malfunctioning, unplug from electrical

connections, and turn OFF water supply.

CAUTION: Failure to follow the

instructions may cause bodily injury

or property damage.

1. Do not place or store product where it can fall or

be pulled into a tub or sink.

2. Do not place in or drop into water or other liquid.

3. Do not reach for a product that has fallen into

water. Unplug immediately.

4. Do not wash the main unit or electrical plug with

water or detergent.

5. Do not handle the electrical plug with wet hands.

6. Never block the outlet of the air dryer.

7. Never disassemble, repair or modify this product.

8. Ensure Power Cable is unplugged during the

installation and maintenance of the appliance.

DANGER: To reduce the risk of

electrocution:

SAFETY TIPS

IMPORTANT

When using electrical products, especially when

children are present, basic safety precautions

should always be followed, including the following:

• This product is not intended for children (without

proper adult supervision).

• This product is not intended for individuals with

reduced physical, sensory, or mental capabilities.

MAIN UNIT KNOB INSTRUCTIONS (KNOB ACTIVATION)

NOTE: The Cleaning Cycle will stop automatically when complete, or can be stopped at any time by pressing

the STOP button. The Drying Function will need to be manually activated if the Cleaning Function was stopped mid-cycle.

1. While seated, turn Cleaning Knob forward to

start rear cleaning function.

• Rear cleaning (about 2 minutes)

• Drying (about 2.5 minutes)

• Drying cycle will stop automatically when

completed.

2. During the rear cleaning process, turning the

knob forward will move the washing position further

forward.

REAR

CLEANING

KNOB

1. While seated, turn Cleaning Knob rearwards

to start front cleaning function.

• Front cleaning (about 2 minutes)

• Drying (about 2.5 minutes)

• Drying cycle will stop automatically when

completed.

2. During the front cleaning process, turning the

knob rearwards will move the washing position

further rearward.

FRONT

CLEANING

KNOB

Press the Activation Knob to Stop the function in

progress: Rear Cleaning, Front Cleaning, Drying or

Nozzle Cleaning Function.

STOP

KNOB

FRONT BACK

NOTE: The timing shown is the

Maximum Cycle Time

before the unit will switch

to the next function or turn OFF if it is

on the last function in that process.

User can press the Stop Button

or Press the Knob to stop

the cleaning function early.

INSTALL

MOUNTING

CARDBOARD

❸ SCREWS

❹ WASHER

❶ EXPANSION NUT

TOILET MOUNTING

HOLES

❷

BASE PLATE

THE BLACK LATCH

FACES FORWARD,

GROOVE UP

NOTE: This product has been tested for water flow before leaving the factory.

There may be a small amount of residual water still in the unit that spills out during installation.

IMPORTANT! Do NOT install unit where it may come in direct contact with water.

• Install the Expansion Nuts (1) into the Toilet Mounting Holes first, and then install Base Plate (2), Washer (3)

and Screws (4) in sequence according to the below illustration, then tighten.

BASE INSTALLATION

REMOVAL BUTTON

CLICK

• Main Unit Installation: Align Main Unit to Base Plate and slide it into the Base Plate. The components will

audibly "click" together when properly installed.

• Removal of Main Unit: Press the "Removal button", and pull out the Main Unit when a "click" sound is

heard.

NOTE: Once the Removal Button is pressed, you do not have to hold it in during the removal process.

MAIN UNIT INSTALLATION

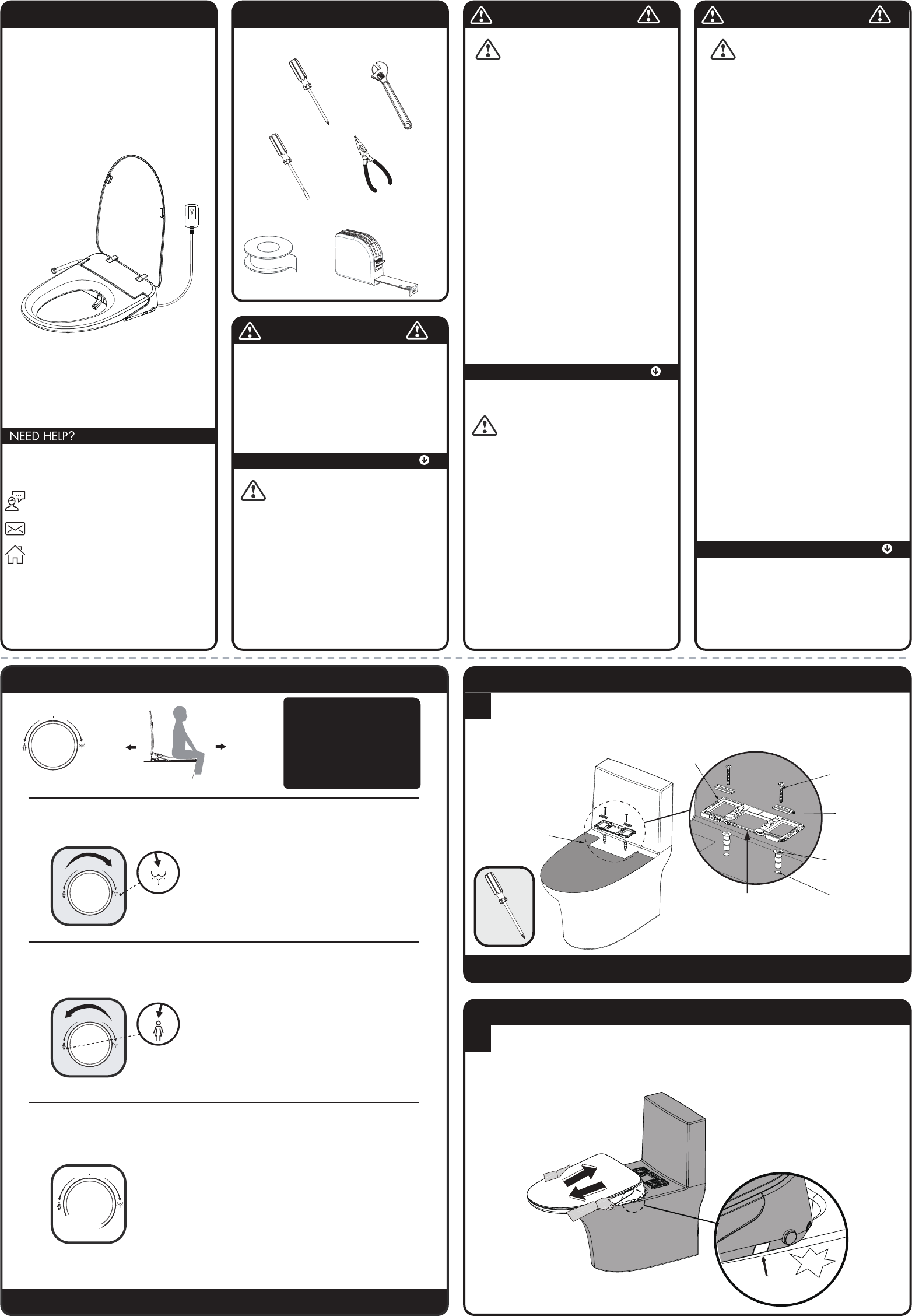

Summary of content (4 pages)
