User's Manual

Introduction

Physical Details

Front-mounted LEDs

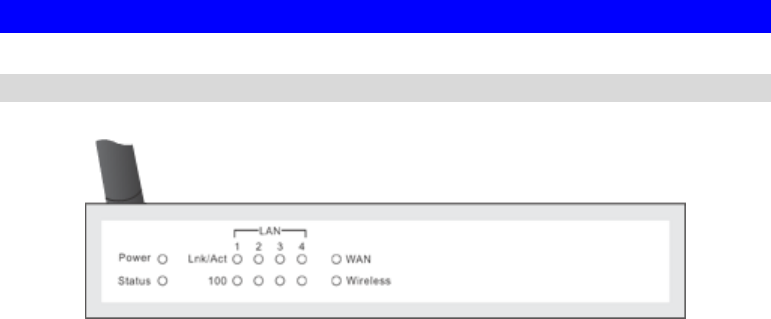

Figure 2: Front Panel

Power LED On - Power on.

Off - No power.

Status (Red)

LED

On - Error condition.

Off - Normal operation.

Blinking - This LED blinks during start up, and during a Firmware

Upgrade.

LAN LEDs

For each port, there are 2 LEDs

• Link/Act

• On - Corresponding LAN (hub) port is active.

• Off - No active connection on the corresponding LAN (hub) port.

• Flashing - Data is being transmitted or received via the

corresponding LAN (hub) port.

• 100

• On - Corresponding LAN (hub) port is using 100BaseT.

• Off - Corresponding LAN (hub) port connection is using

10BaseT, or no active connection.

WAN LED On - Connection to the Broadband Modem attached to the WAN

(Internet) port is established.

Off - No connection to the Broadband Modem.

Flashing - Data is being transmitted or received via the WAN port.

Wireless LED On - Wireless connection available; Wireless Access Point is ready for

use.

Off - No Wireless connection available.

Flashing - Data is being transmitted or received via the Wireless access

point. Data includes "network traffic" as well as user data.
