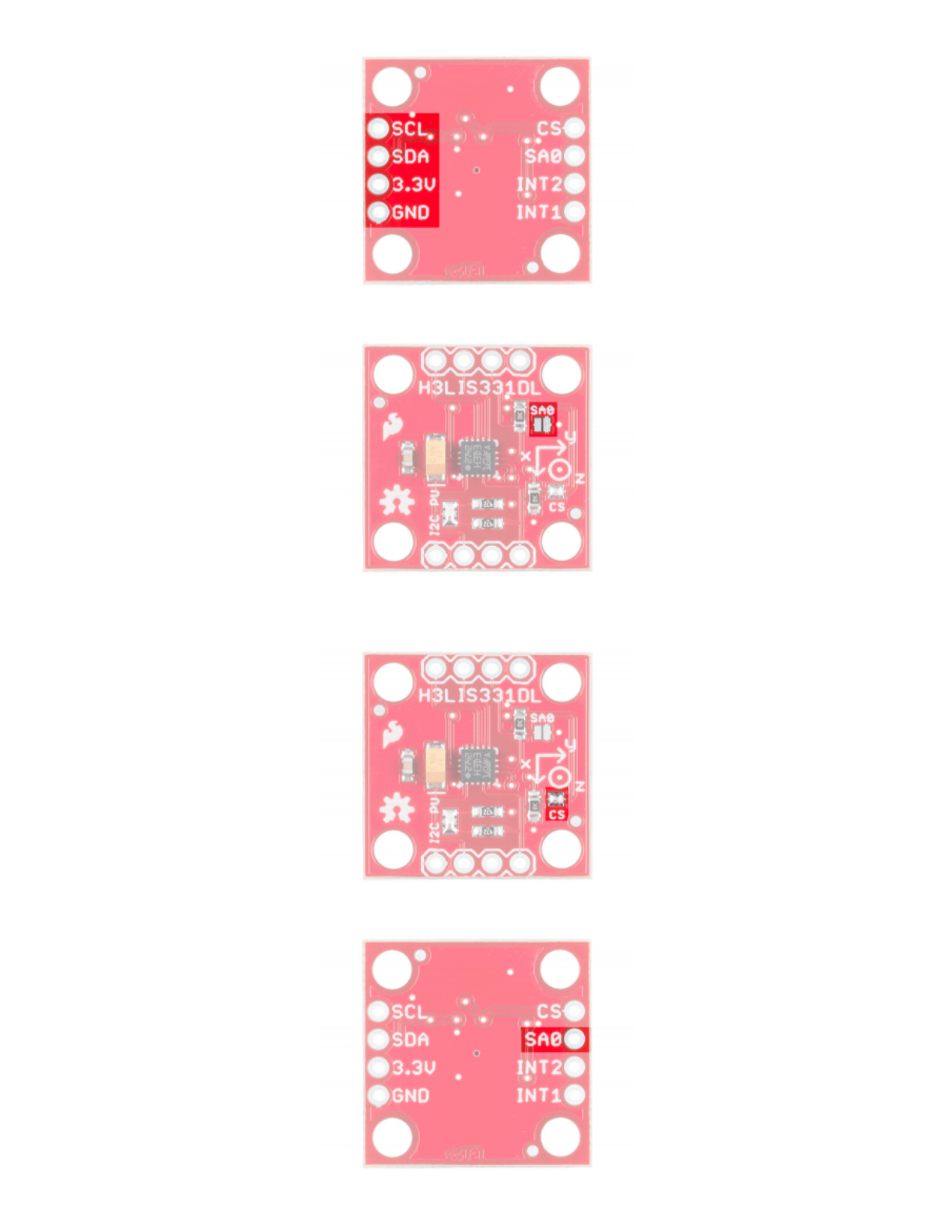

SA0 Jumper - Closing this jumper changes the I C address of the sensor from 0x19 to 0x18.
CS Jumper - Removing the solder from this jumper enables SPI mode. When the part’s CS line is low at boot, it enables SPI
mode.
SA0 Pin - When the chip is in SPI mode, this goes from being the address select pin to being the MISO pin.
