Notes
(1)
Light source: white LED
(2)
Light conditions: dark

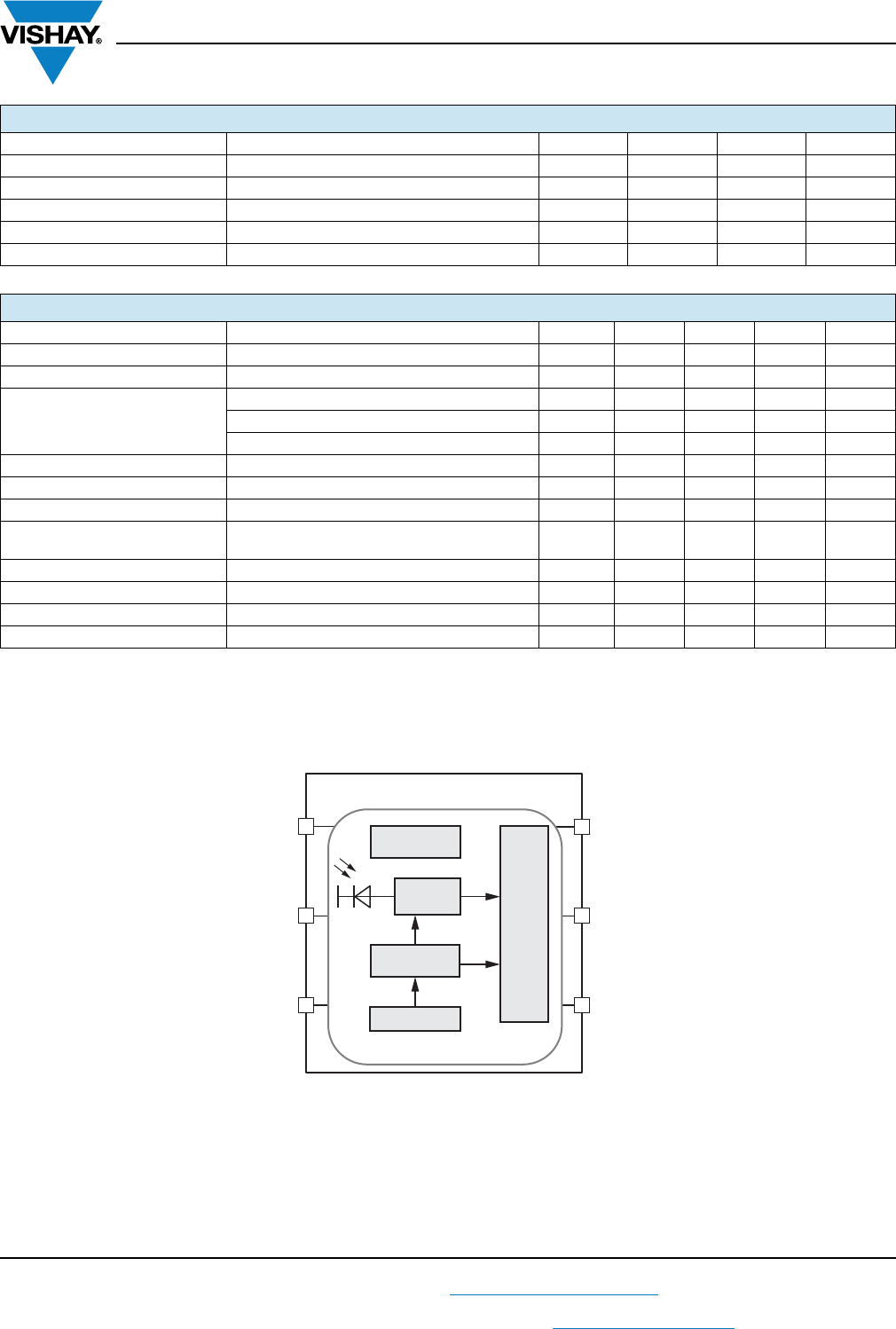

CIRCUIT BLOCK DIAGRAM
Fig. 1 - Block Diagram
ABSOLUTE MAXIMUM RATINGS (T
amb
= 25 °C, unless otherwise specified)
PARAMETER TEST CONDITION SYMBOL MIN. MAX. UNIT
Supply voltage V
DD
04V
Operation temperature range T
amb
-25 +85 °C
Storage temperature range T
stg
-25 +85 °C
Total power dissipation T
amb
≤ 25 °C P
tot
-50mW
Junction temperature T
j
- 110 °C
BASIC CHARACTERISTICS (T
amb
= 25 °C, unless otherwise specified)
PARAMETER TEST CONDITION SYMBOL MIN. TYP. MAX. UNIT
Supply voltage V
DD
2.5 3.3 3.6 V
Shut down current
(2)
V
DD
is 3.3 V I
sd
-0.5-μA
Operation mode current
(1)
V
DD
is 3.3 V, PSM = 11, refresh time 4100 ms I
DD
-2-μA
V
DD
is 3.3 V, PSM = 00, refresh time 600 ms I
DD
-8-μA
V
DD
is 3.3 V, PSM_EN = 0, refresh time 100 ms I
DD
-45-μA
I
2
C clock rate range f
SCL
10 - 400 kHz
I
2
C bus input H-level range V
DD
is 3.3 V V
ih
1.3 - 3.6 V
I
2
C bus input L-level range V
DD
is 3.3 V V
il
-0.4V
Digital current out
(low, current sink)
I
ol
3--mA
Digital resolution (LSB count) with ALS_GAIN = “01” - 0.0036 - lx/step
Detectable minimum illuminance with ALS_GAIN = “01” E
V min.
- 0.0072 - lx
Detectable maximum illuminance with ALS_GAIN = “10” E
V max.
- 120 000 - lx
Dark offset
(1)
with ALS_GAIN = “01” - 3 - step
SDA 2
INT 3
6 V
DD
5 SCL
4 ADDR
GND 1
ALS-PD
Output buffer
I
2
C interface
Low pass
lter
Temperature
sensor
Oscillator
Timing
controller
VEML6030
