VEML6030

www.vishay.com

Vishay Semiconductors

Rev. 1.3, 12-May-17

Document Number: 84366

For technical questions, contact: sensorstechsupport@vishay.com

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000

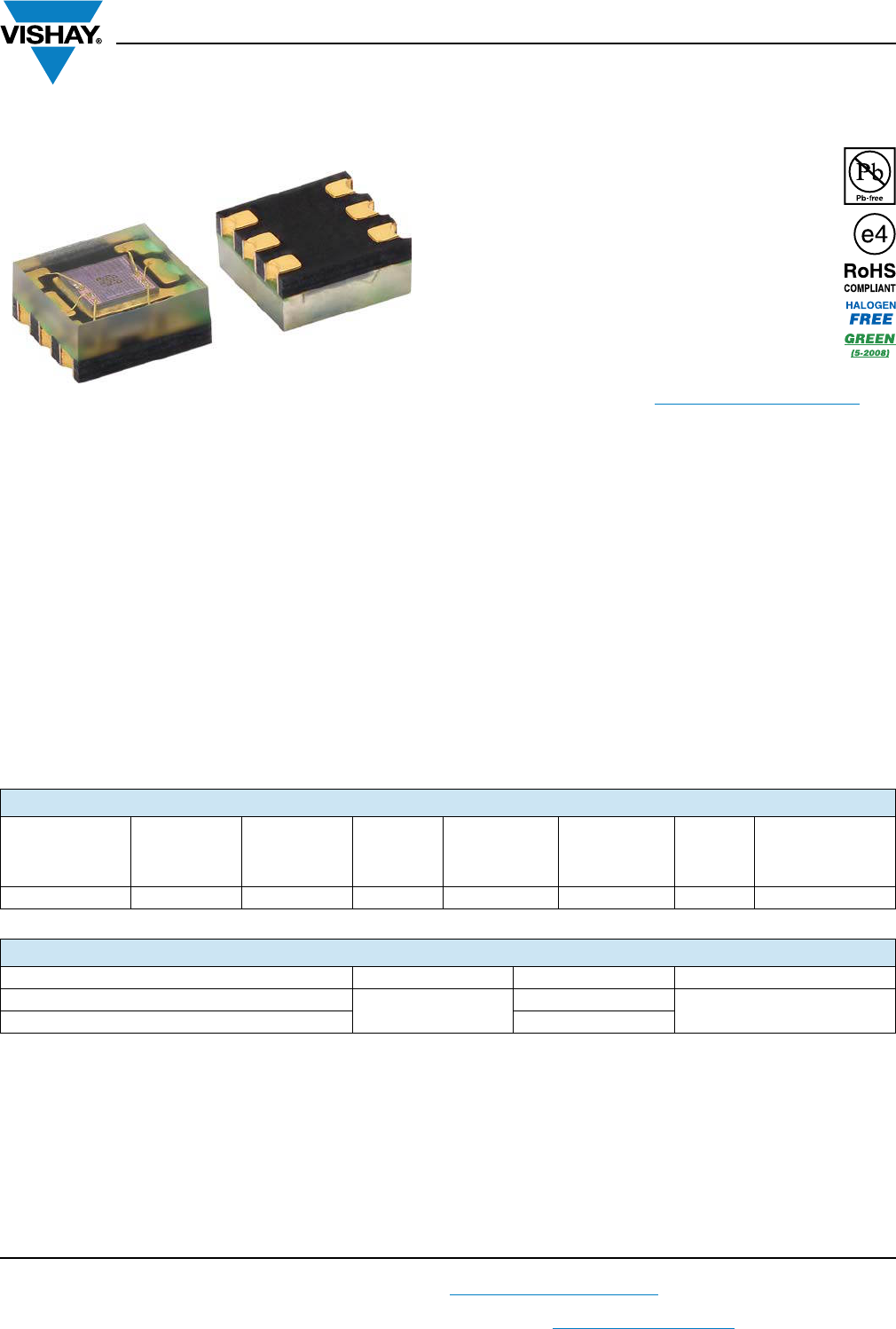

High Accuracy Ambient Light Sensor With I

C Interface

DESCRIPTION

VEML6030 is a high accuracy ambient light digital 16-bit

resolution sensor in a miniature transparent 2 mm x 2 mm

package. It includes a high sensitive photodiode, a low

noise amplifier, a 16-bit A/D converter and supports an

easy to use I

C bus communication interface and additional

interrupt feature.

The ambient light result is as digital value available.

APPLICATIONS

• Ambient light sensor for mobile devices (e.g. smart

phones, touch phones, PDA, GPS) for backlight dimming

• Ambient light sensor for industrial on- / off-lighting

operation

• Optical switch for consumer, computing, and industrial

devices and displays

FEATURES

• Package type: surface mount

• Dimensions (L x W x H in mm): 2 x 2 x 0.87

• Integrated modules: ambient light sensor (ALS)

• Supply voltage range V

: 2.5 V to 3.6 V

• Communication via I

C interface

•I

C bus H-level range: 1.7 V to 3.6 V

• Floor life: 72 h, MSL 4, according to J-STD-020

• Low stand by current consumption: typ. 0.5 μA

• Material categorization: for definitions of

compliance please see www.vishay.com/doc?99912

AMBIENT LIGHT FUNCTION

•Filtron

technology adaption: close to real human eye

response

•O-Trim

technology adoption: ALS output tolerance

≤ 10 %

• 16-bit dynamic range for ambient light detection from

0 lx to about 120 klx with resolution down to 0.0036 lx/ct,

supports low transmittance (dark) lens design

• 100 Hz and 120 Hz flicker noise rejection

• Excellent temperature compensation

• High dynamic detection resolution

• Software shutdown mode control

Note

(1)

MOQ: minimum order quantity

PRODUCT SUMMARY

PART NUMBER

OPERATING

RANGE

(mm)

OPERATING

VOLTAGE

RANGE

(V)

C BUS

VOLTAGE

RANGE

(V)

AMBIENT

LIGHT RANGE

(lx)

AMBIENT

LIGHT

RESOLUTION

(lx)

OUTPUT

CODE

ADC RESOLUTION

PROXIMITY /

AMBIENT LIGHT

VEML6030 n/a 2.5 to 3.6 1.7 to 3.6 0 to 120 000 0.0036 16 bit, I

C - / 0.0036

ORDERING INFORMATION

ORDERING CODE PACKAGING VOLUME

(1)

REMARKS

VEML6030

Tape and reel

MOQ: 3000

2.0 mm x 2.0 mm x 0.87 mm

VEML6030-GS15 MOQ: 10 000

Summary of content (14 pages)

PAGE 1
VEML6030 www.vishay.com Vishay Semiconductors High Accuracy Ambient Light Sensor With I2C Interface FEATURES • Package type: surface mount • Dimensions (L x W x H in mm): 2 x 2 x 0.87 • Integrated modules: ambient light sensor (ALS) • Supply voltage range VDD: 2.5 V to 3.6 V • Communication via I2C interface • I2C bus H-level range: 1.7 V to 3.6 V • Floor life: 72 h, MSL 4, according to J-STD-020 • Low stand by current consumption: typ. 0.
PAGE 2
VEML6030 www.vishay.com Vishay Semiconductors ABSOLUTE MAXIMUM RATINGS (Tamb = 25 °C, unless otherwise specified) PARAMETER SYMBOL MIN. MAX. UNIT Supply voltage TEST CONDITION VDD 0 4 V Operation temperature range Tamb -25 +85 °C Storage temperature range Tstg -25 +85 °C Ptot - 50 mW Tj - 110 °C Tamb ≤ 25 °C Total power dissipation Junction temperature BASIC CHARACTERISTICS (Tamb = 25 °C, unless otherwise specified) PARAMETER TEST CONDITION SYMBOL MIN. TYP. MAX.
PAGE 3
VEML6030 www.vishay.com Vishay Semiconductors I2C TIMING CHARACTERISTICS (Tamb = 25 °C, unless otherwise specified) PARAMETER SYMBOL Clock frequency STANDARD MODE (1) MIN. MAX. f(SMBCLK) 10 t(BUF) 4.7 t(HDSTA) Repeated start condition setup time Stop condition setup time Data hold time Data setup time I2C clock (SCK) low period I2C clock (SCK) high period UNIT MAX. 100 10 400 kHz - 1.3 - μs 4.0 - 0.6 - μs t(SUSTA) 4.7 - 0.6 - μs t(SUSTO) 4.0 - 0.
PAGE 4
VEML6030 www.vishay.com Vishay Semiconductors PARAMETER TIMING INFORMATION I2C bus clock (SCLK) I2C bus data (SDAT) SA7 SA6 SA5 SA4 SA3 SA2 SA1 SA7 W SA6 SA5 SA4 SA3 SA2 SA1 SA0 ACK Start by master ACK I2C bus slave address byte Command code I2C bus clock (SCLK) I2C bus data (SDAT) SA7 SA6 SA5 SA4 SA3 SA2 SA1 SA0 SA6 SA7 SA5 SA4 SA3 SA2 SA1 SA0 ACK ACK Data byte low Stop by master Data byte high Fig.
PAGE 5
VEML6030 www.vishay.com Vishay Semiconductors BASIC CHARACTERISTICS (Tamb = 25 °C, unless otherwise specified) 120 100 Normalized Responsivity Normalized Responsivity 120 VEML6030 80 60 V(λ) 40 20 0 100 80 60 40 20 0 400 500 600 700 800 900 1000 250 350 450 550 650 750 850 950 1050 λ - Wavelength (nm) λ - Wavelength (nm) Fig. 5 - Spectral Response Fig. 6 - White Channel Responsivity ALS sensitivity spectrum close to human eye photopic curve V(λ).
PAGE 6
VEML6030 www.vishay.com Vishay Semiconductors APPLICATION INFORMATION VEML6030 is a cost effective solution of ambient light sensor with I2C bus interface. The standard serial digital interface is easy to access “Ambient Light Signal” without complex calculation and programming by external controller. Beside the digital output also a flexible programmable interrupt pin is available. 1. Application Circuit 1.7 V to 3.6 V R1 R2 R3 GND (1) 2.5 V to 3.
PAGE 7
VEML6030 www.vishay.com Vishay Semiconductors Register Addresses Auto-Memorization VEML6030 has actual six user accessible 16 bit command codes. VEML6030 can memorize the last ambient data before shutdown and keep this data before waking up. The addresses are 00h to 06h (03h not defined / reserved). When VEML6030 is in shutdown mode, the host can freely read this data via read command directly. When VEML6030 wakes up, the data will be refreshed by new detection.
PAGE 8
VEML6030 www.vishay.com Vishay Semiconductors Command Code #1: High Threshold Windows Setting Command code address = 01h. Once enable INT function and use high / low windows threshold, bit 15:0 provides 16 bit register for high bound threshold windows setting.
PAGE 9
VEML6030 www.vishay.com Vishay Semiconductors Command Code #6: Interrupt Status Command code address = 06h. Bit 15 defines interrupt flag while trigger occurred due to data crossing low threshold windows. Bit 14 defines interrupt flag while trigger occurred due to data crossing high threshold windows. TABLE 7 - INTERRUPT STATUS #6 Bit 15 Bit 14 int_th_low int_th_high Bit 13 to 0 reserved Description int_th_low Read bit. Indicated a low threshold exceed int_th_high Read bit.
PAGE 10
VEML6030 www.vishay.com Vishay Semiconductors PACKAGE DIMENSIONS in millimeters (0.6) 0.87 2 1 ADD 4 3 INT SCL 5 2 SDA VDD 6 1 GND 1 2 Top View Pinning 2 Recommended Footprint Technical drawings according to DIN specification 1.6 0.3 (6 x) 0.35 (4 x) 0.65 (4 x) Pin 1 marking 0.55 (6 x) 2.3 0.45 (6 x) Drawing No.: 6.550-5348.01-4 Issue: 1; 19.02.16 Rev. 1.3, 12-May-17 0.4 (6 x) Not indicated tolerances ± 0.
PAGE 11
VEML6030 www.vishay.com Vishay Semiconductors TAPE AND REEL DIMENSIONS in millimeters 8.4 +2.5 Ø 177.8 max. Ø 55 min. 8.4 +0.15 Z 14.4 max. Form of the leave open of the wheel is supplier specific. Ø20.2 min. 1.5 min. +0.5 Ø13 -0.2 Z 2:1 Technical drawings according to DIN specification. Drawing-No.: 9.800-5096.01-4 Issue: 5; 20.12.2016 Fig. 11 - 7" Reel, 3000 Pieces Rev. 1.3, 12-May-17 Document Number: 84366 11 For technical questions, contact: sensorstechsupport@vishay.
PAGE 12
VEML6030 www.vishay.com Vishay Semiconductors 100 min. 330 max. Y Label Z Form of the leave open of the wheel is supplier specific. unreel direction 14.4 max. 8.4 +- 2.5 0 Z(2:1) Y(1:1) Ø 20.2 min. 1.5 mi n. Ø 13 +- 0.5 0.2 Drawing-No.: 9.800-5140.01-4 Issue: prel. 1; 02.03.2016 Technical drawings according to DIN specification. 8.4 +- 0.15 0 Fig. 12 - 13" Reel, 10 000 Pieces Rev. 1.3, 12-May-17 Document Number: 84366 12 For technical questions, contact: sensorstechsupport@vishay.
PAGE 13
VEML6030 www.vishay.com Vishay Semiconductors (Ø 1.5) (3.5) (4) (8) (Ø 1) (1.75) Y PIN 1 (2.3) (2) Reel off direction (4) Y Y-Y (2.3) (0.25) (1.25) technical drawings according to DIN specifications Drawing-No.: 9.700-5397.01-4 Issue: 1; 19.02.16 Fig. 13 - Taping REFLOW SOLDER PROFILE DRYPACK 300 Temperature (°C) max. 260 °C 245 °C 255 °C 240 °C 217 °C 250 200 150 Floor life: 72 h max. 100 s 100 max.
