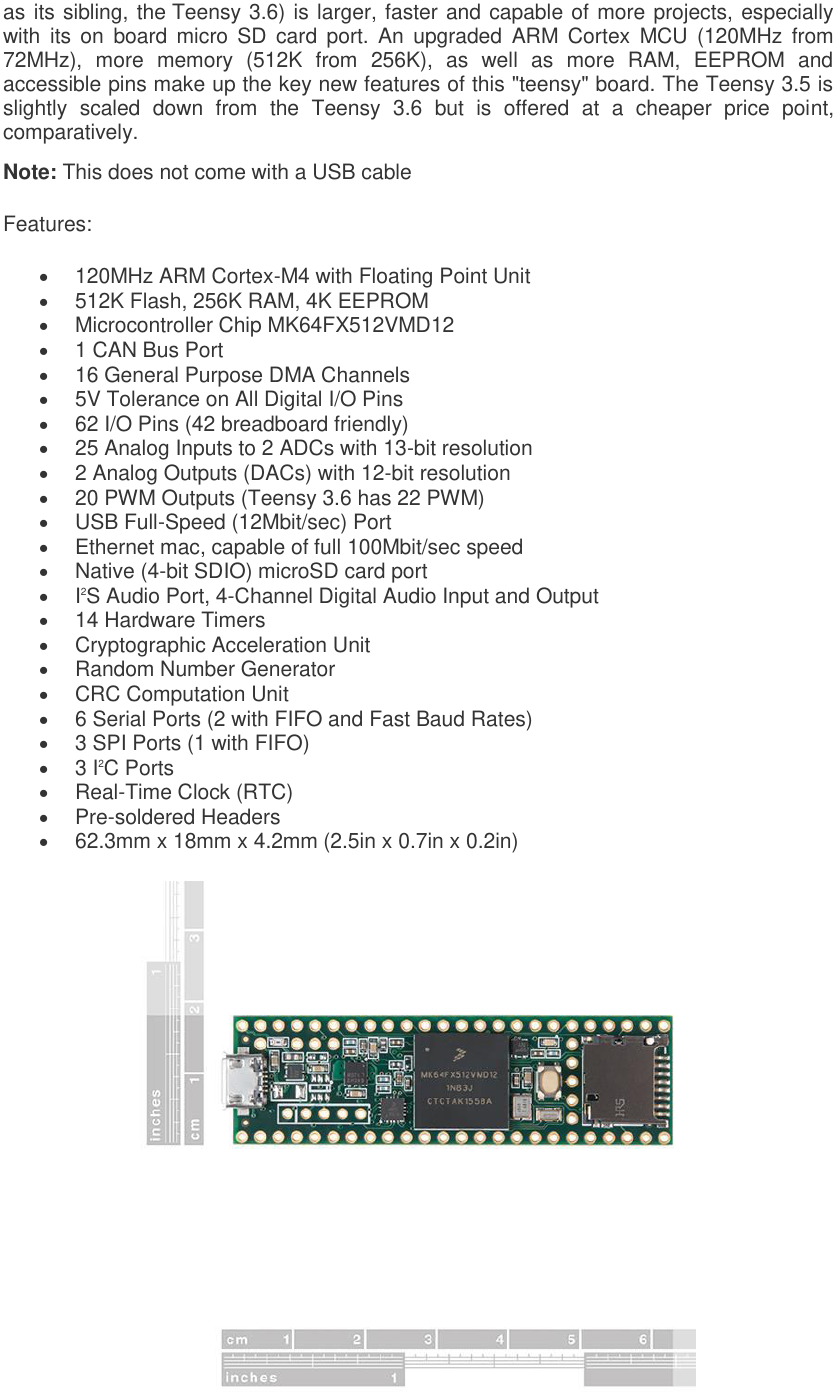

Datasheet

as its sibling, the Teensy 3.6) is larger, faster and capable of more projects, especially

with its on board micro SD card port. An upgraded ARM Cortex MCU (120MHz from

72MHz), more memory (512K from 256K), as well as more RAM, EEPROM and

accessible pins make up the key new features of this "teensy" board. The Teensy 3.5 is

slightly scaled down from the Teensy 3.6 but is offered at a cheaper price point,

comparatively.

Note: This does not come with a USB cable

Features:

 120MHz ARM Cortex-M4 with Floating Point Unit

 512K Flash, 256K RAM, 4K EEPROM

 Microcontroller Chip MK64FX512VMD12

 1 CAN Bus Port

 16 General Purpose DMA Channels

 5V Tolerance on All Digital I/O Pins

 62 I/O Pins (42 breadboard friendly)

 25 Analog Inputs to 2 ADCs with 13-bit resolution

 2 Analog Outputs (DACs) with 12-bit resolution

 20 PWM Outputs (Teensy 3.6 has 22 PWM)

 USB Full-Speed (12Mbit/sec) Port

 Ethernet mac, capable of full 100Mbit/sec speed

 Native (4-bit SDIO) microSD card port

 I

S Audio Port, 4-Channel Digital Audio Input and Output

 14 Hardware Timers

 Cryptographic Acceleration Unit

 Random Number Generator

 CRC Computation Unit

 6 Serial Ports (2 with FIFO and Fast Baud Rates)

 3 SPI Ports (1 with FIFO)

 3 I

C Ports

 Real-Time Clock (RTC)

 Pre-soldered Headers

 62.3mm x 18mm x 4.2mm (2.5in x 0.7in x 0.2in)
