B ASIC OPERATIONS
TELEMETRY TRANSMITTER (96281) OPERATIONS MANUAL 4-14
SpO
2
SpO
2
is only available with the 96281-C. SpO
2
data is obtained directly from the patient and may show
as in
Figure 4-7, depending on configuration of leads and available parameters.
The 96281-C auto-detects a sensor connection and activates or deactivates the SpO
2
option
accordingly.
Note:
SpO
2
view does not show if a SpO
2
adapter cable is not connected.

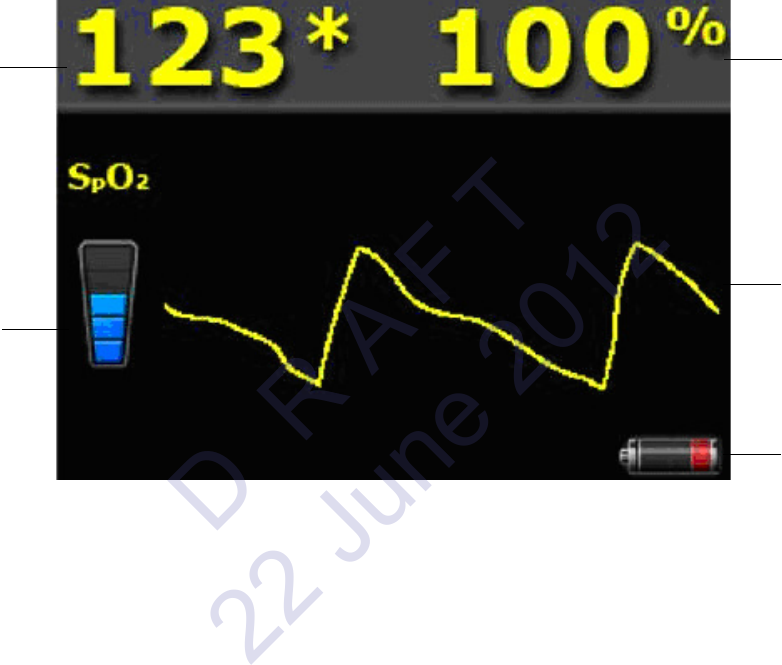

Figure 4-7: Typical SpO
2
display on 96281-C (shows a low battery state)
1 SpO
2
saturation percentage (96281-C only)
2 SpO
2
pulse waveform (96281-C only)
3 Battery charge indicator (defined by quartiles)
4 Signal quality/strength indicator (at least one color bar in the indicator is recommended for a
reliable SpO
2
value)
5 Pulse rate derived from SpO
2
(indicated by an asterisk)
4
1
2
5
3
