SD-Remote Overview
Phone Tablet
Navigation
Bar
Navigation
Bar
Recorder/
Wireless Tab
Recorder/Wireless
Tab
TX
List
TX
View
TX
View
Files
View
Settings
View
TX
List
Active
Transmitter
Active
Transmitter

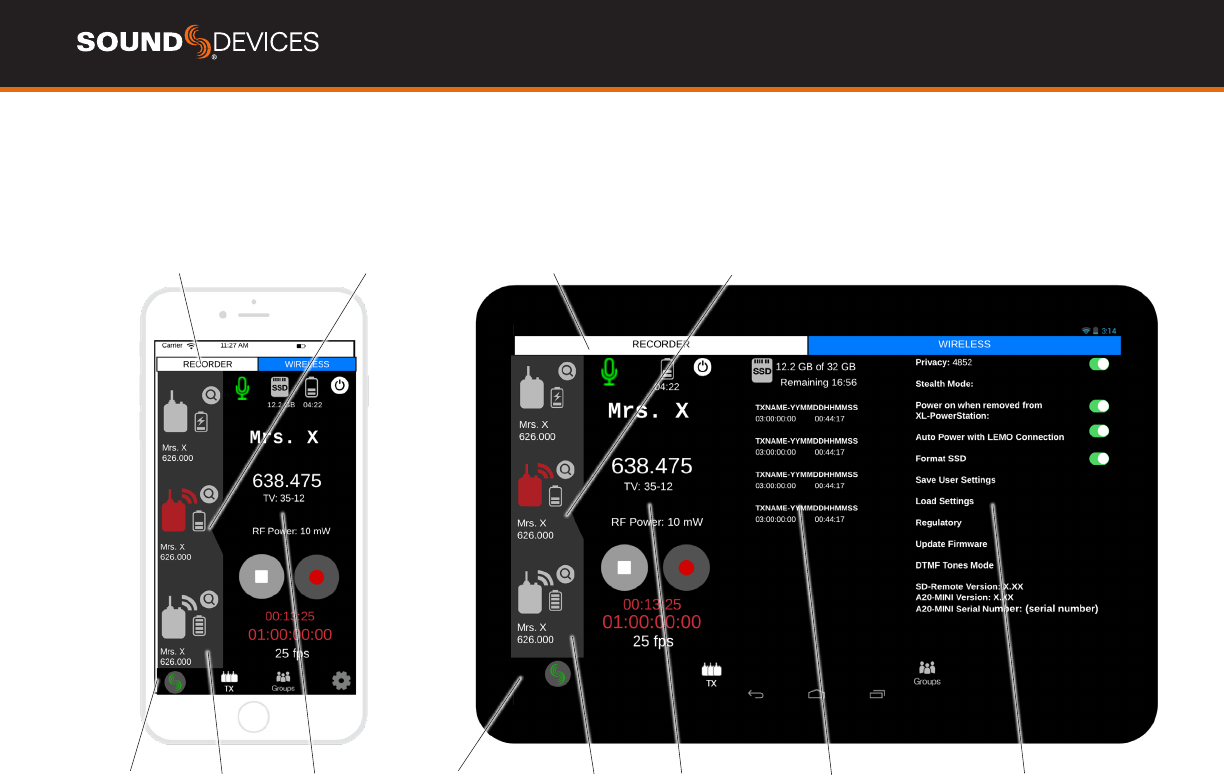

Recorder and Wireless Tabs
Active tab is highlighted in blue. The Wireless tab is shown as
the active tab in the example image and is described in this
guide.
TX List
Scroll to see all available transmitters in the TX List. Touch a
transmitter to select it to be the active transmitter for the TX
View. Transmitters are added and removed from the TX List from
the Device List. See TX List for more details.
Active Transmitter
The triangular indent in the TX List indicates the active transmit-
ter shown in the TX View.
TX View
Displays the active transmitter’s audio activity, battery life, and
timecode values. Allows control of transmitter’s power, RF set-
up, record and stop. See TX View for more details.
Files View (Tablet)
The A20-MINI Files View displays remaining time and space left
ontheinternalSSD.Displaysascrollablelistofrecordedles.
Touchalenameformoreoptions.FilesViewisavailableonthe
phone by touching the SSD icon in the TX View. See File View
for more details.
Settings View (Tablet)
Allows control of various A20-MINI settings. Displays the ver-
sionnumberofSD-Remoteandthermwareversionandserial
number of the active A20-MINI. Settings View is available on a
phone by touching the Settings (gear) icon in the Navigation Bar.
See Settings View for more details.
