User's Guide

A20-MINI User Guide
5
Panel Views
FRONT RIGHT
LEFT
TOP
BOTTOM
BACK
Dimensions - mm
SCALE 1 : 1
Dimensions - in
SCALE 1 : 1
.000
2.918
3.140
.717
1.882
.00
74.11
79.76
47.80
18.20
FRONT RIGHT
LEFT
TOP
BOTTOM
BACK
Dimensions - mm
SCALE 1 : 1
Dimensions - in
SCALE 1 : 1
.000
2.918
3.140
.717
1.882
.00
74.11
79.76
47.80
18.20
FRONT RIGHT
LEFT
TOP
BOTTOM
BACK
Dimensions - mm
SCALE 1 : 1
Dimensions - in
SCALE 1 : 1
.000
2.918
3.140
.717
1.882
.00
74.11
79.76
47.80
18.20
FRONT RIGHT
LEFT
TOP
BOTTOM
BACK
Dimensions - mm
SCALE 1 : 1
Dimensions - in
SCALE 1 : 1
.000
2.918
3.140
.717
1.882
.00
74.11
79.76
47.80
18.20
3 AAA Batteries
SCALE 1 : 1
No Batteries
SCALE 1 : 1

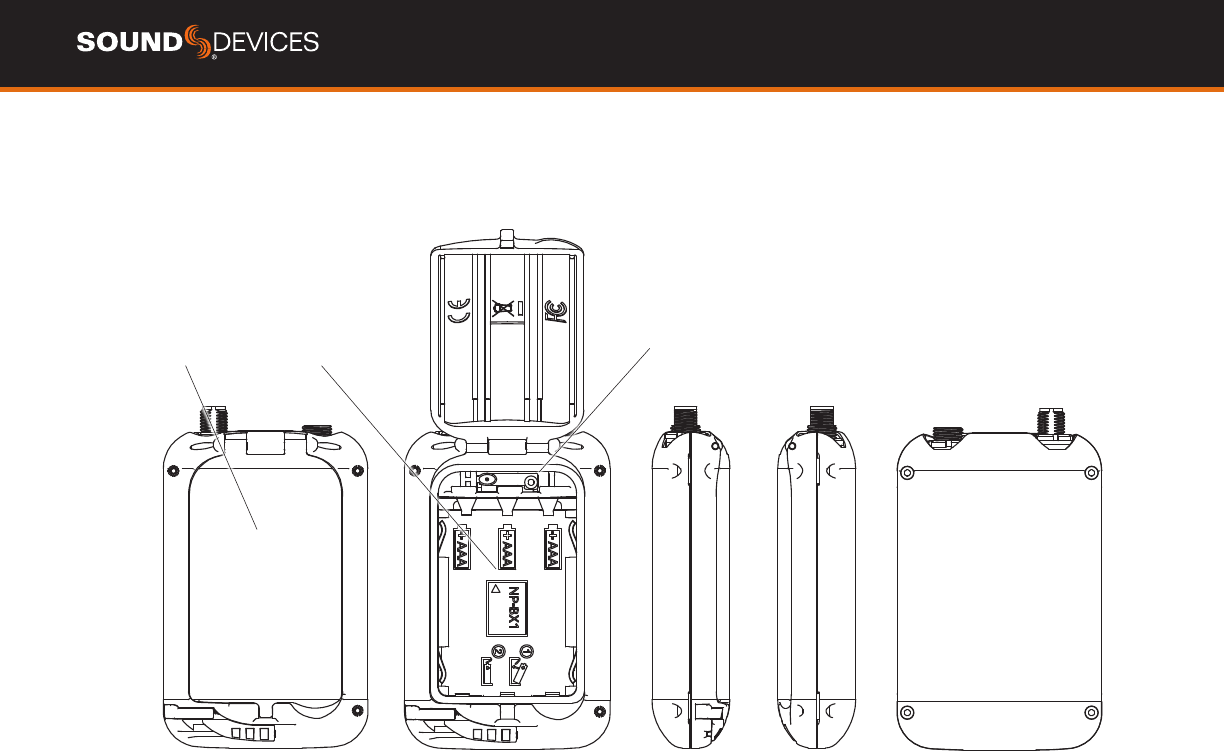

Sony NP-BX1 Battery
SCALE 1 : 1
Front
Front
Front
(Door Open)
RightLeft
Battery
Door
ButtonBattery
Compartment
Battery Door
Access to the battery compartment and button.
Battery Compartment
Accepts either 3x AAA Lithium batteries, or one rechargeable
Sony NP-BX1 Li-Ion battery. Sound Devices recommends using
Energizer Ultimate AAA batteries for best performance. Alkaline
and NiMH are not recommended because of compromised run
times.
Button
ThisbuttonisusedtopowertheA20-MINIonoroandenter
Bluetooth Pairing mode.
• Power On = Press and release button.
• PowerO=Pressandholdbuttonfor1second.
• PairingMode=WhileA20-MINIiso,pressandhold
button for 5 seconds. The Pairing LED on the bottom and
toppanelashesbluerapidlywhileinPairingmode.
