User Groups
The User Groups feature allows for easy, intuitive naming of
specicfrequenciesforeachA20-MINIorAudioLtdA10-TX
transmitters used on set, and grouped together for faster tuning.
The operator of an A10-RX receiver may then easily switch
between transmitters by choosing alphanumeric names, such
as “Jack” and “Diane”, instead of having to remember and man-
uallytunetodierent,specicnumericalfrequencies.
For instance, a producer or director may want to monitor several
dierentactors’wirelesstransmitters.Ratherthanhavingto
keep a list of all of their frequencies, each transmitter may be
pre-assigned a frequency and given an actor’s name. Then only
those pre-assigned frequencies that have been named will be
available as possible options for tuning.

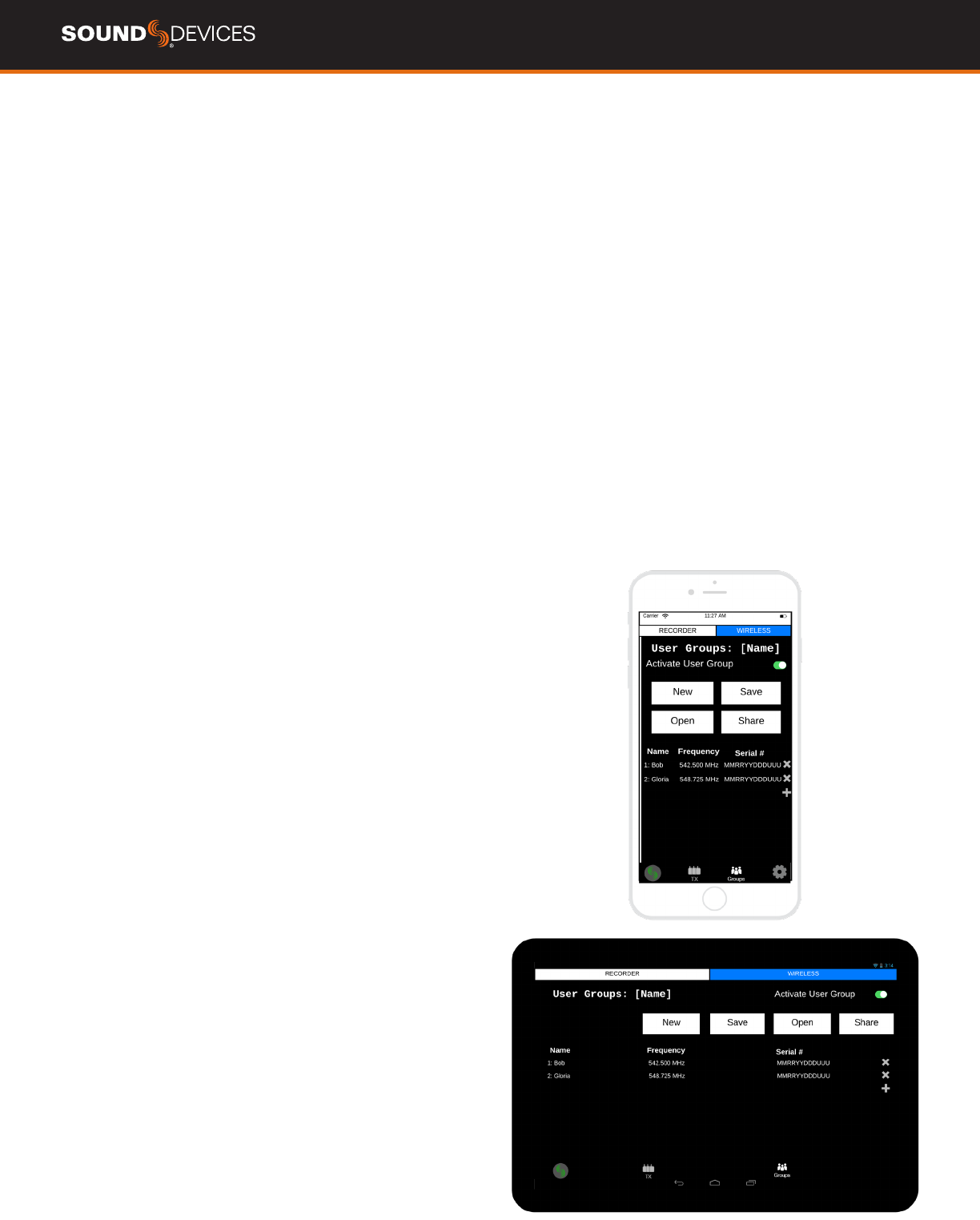

User Groups are created in the SD-Remote - Wireless Tab -
User Groups View. User Groups can also be created using the
Mic2Wav II Windows and Mac OS application. See Mic2Wav II
for more details.
Naming the User Group
TouchthenameeldtorenamethecurrentUserGroup.
Activate the User Group
When Activate User Group is on, the User Group is applied to
all A20-MINI transmitters within Bluetooth range that appear in
the TX List. This limits the frequencies available to only those
denedbytheUserGroupandliststhembytheirfriendlyname.
Unlike the A20-MINI, the Audio Ltd A10-TX and A10-RX do not
automatically update when Activate User Groups is on. ALUG
lesneedtobemanuallyloadedonthesedevices.Seethe
Audio Ltd A10-TX and A10-RX guides for details.
New
Creates a new User Group clearing existing entries.
Save
SavesthecurrentUserGroupasanALUGletothemobile
device.SavedALUGlescanberecalledlater,transferredtoan
A10-TX microSD card, or loaded onto an A10-RX via Mic2Wav
2.
Open
OpensstoredALUGlesonthemobiledeviceandloadsthem
in SD-Remote.
Share
SharestheactiveUserGroupasanALUGleviaemailorthird
partylesharingapplications.
Adding and Naming User Group Frequencies
• Touch + to add an entry to the User Group.
• Touch X to delete an entry from the User Group.
• Touchthenameeldtoeditthefrequency’sname.
• Touchthefrequencyeldtoassignafrequency.
• Touchtheserialnumbereldtoenteraspecic
A20-MINI or A10-TX serial number. This auto-deploys
the frequency to the A20-MINI or A10-TX without having
to change the frequency selection on each transmitter.
