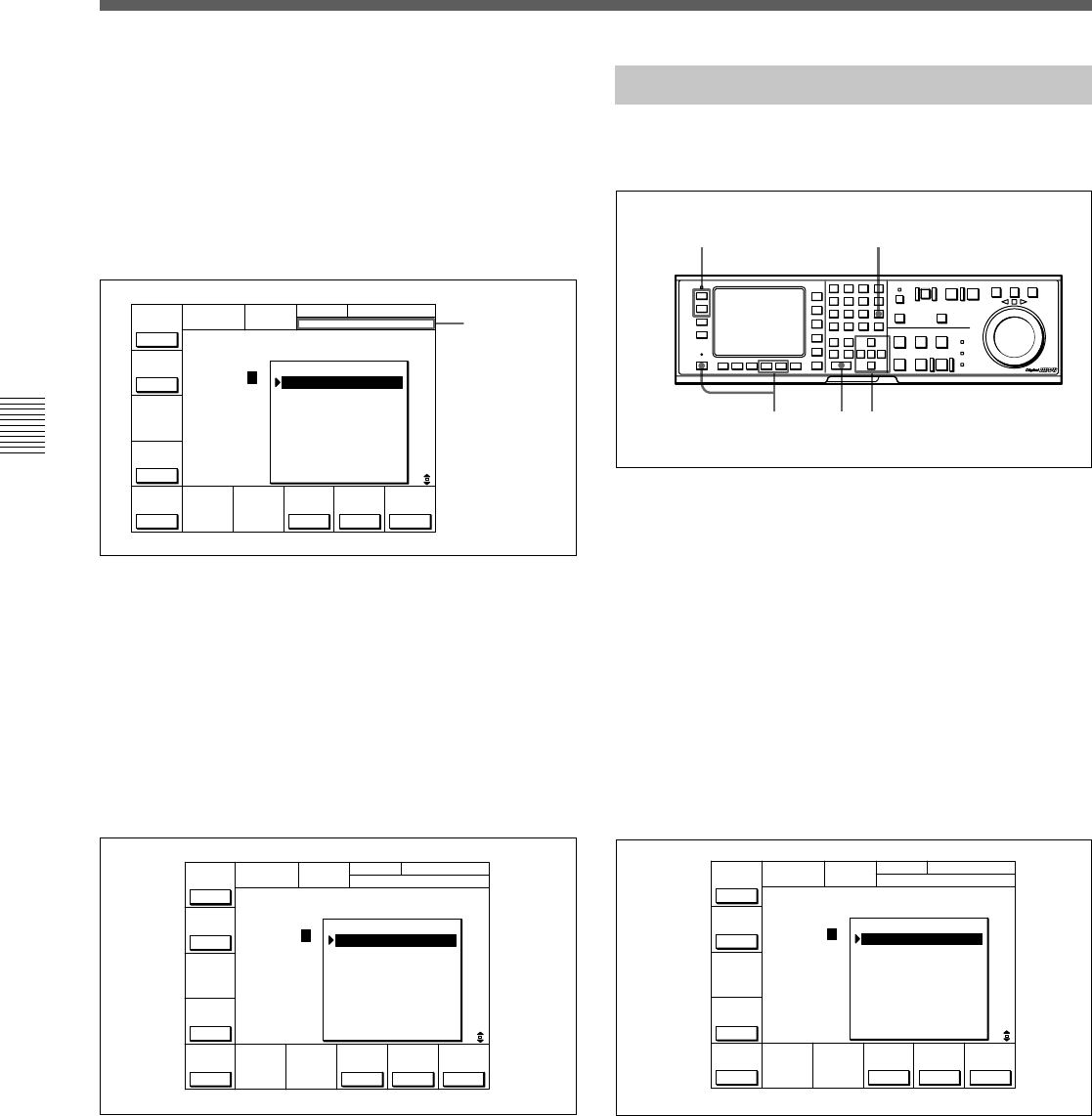

4-4 CUE Menu
4-38 Chapter 4 Menu Settings
Chapter 4 Menu Settings
4 Enter the cue point data in the data entry window
with the numeric buttons, then press the SET
button.
For example, to enter 00:01:30:00, press 0, 0, 1, 3,
0, 0, 0. (The leading 0 is not required. When the
entered value is less than eight digits, the leading
digit(s) is (are) set to 0 when you press the SET
button.)
To modify current cue point data
Press the + or – button, enter the value to be added
or subtracted, then press the SET button.
The computation is performed and the results
appear in the data entry window.
5 Press the ENTRY button to set the entered data.
The data are registered in the cue point data
indication.
4-4-3 Erasing Cue Point Data
To erase any cue point data, blank out the data entry
window, then do the cue point registration procedure.
Erasing cue point data
1 Press the ALT button, then the [F8] (PAGE
MODE) button or the [F9] (EXTEND MODE)
button.
2 If you selected PAGE mode, press the [F1] (PREV
PAGE) button or [F2] (NEXT PAGE) button (or
use the numeric buttons to enter the page number
in the data entry window, then press the [F8]
(PAGE SET) button).
3 Press the G or g button to move the cursor (z) to
the cue number to be erased.
To select the cue number directly by
the numeric buttons
Enter the cue number in the data entry window
with the numeric buttons, then press the [F9]
(CUENUM SET) button.
Entered data
SET 00 01 30 00
CUE
TCR 00:00:00:00
[I ÅM CUE TITLE ]
PÅGE: 0
1
2
3
4
5
6
7
8
9
NEXT
PÅGE
PREV
PÅGE
TELE
FILE
CUE
P-ROLL
PÅGE
SET
CUENUM
SET
M-CUE
CLEAR
REMAIN-T
L 113min
CH.COND
10 00:01:10:00
11 00:02:10:00
12 00:03:10:00
13 00:04:10:00
14 00:05:10:00
15 00:06:10:00
16 00:07:10:00
17 00:08:10:00
18 00:09:10:00
19 00:10:10:00
CUE
TCR 00:00:00:00
[I ÅM CUE TITLE ]
PÅGE: 0
1
2
3
4
5
6
7
8
9
NEXT
PÅGE
PREV
PÅGE
TELE
FILE
CUE
P-ROLL
PÅGE
SET
CUENUM
SET
M-CUE
CLEAR
REMAIN-T
L 113min
CH.COND
10 00:01:10:00
11 00:01:30:00
12 00:03:10:00
13 00:04:10:00
14 00:05:10:00
15 00:06:10:00
16 00:07:10:00
17 00:08:10:00
18 00:09:10:00
19 00:10:10:00
CUE
TCR 00:00:00:00EOS 00:00:00:00
[I ÅM CUE TITLE ]
PÅGE: 0
1
2
3
4
5
6
7
8
9
NEXT
PÅGE
PREV
PÅGE
TELE
FILE
CUE
P-ROLL
PÅGE
SET
CUENUM
SET
M-CUE
CLEAR
REMAIN-T
L 113min
CH.COND
10 00:01:10:00
11 00:02:10:00
12 00:03:10:00
13 00:04:10:00
14 00:05:10:00
15 00:06:10:00
16 00:07:10:00
17 00:08:10:00
18 00:09:10:00
19 00:10:10:00
1
3
2
5
4
