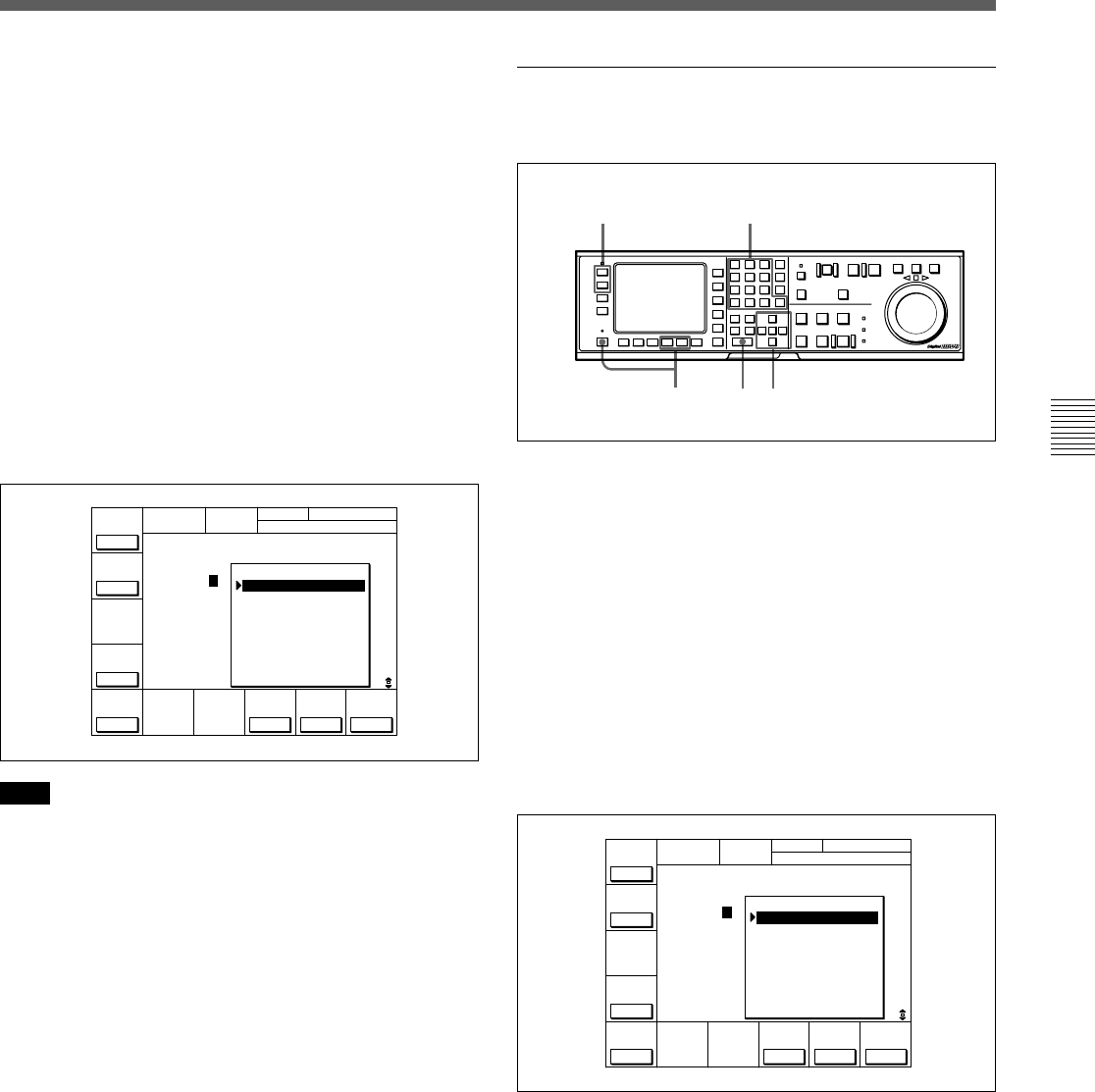

Chapter 4 Menu Settings 4-37
Chapter 4 Menu Settings
Registering cue points by the numeric
buttons
Registering cue points by the numeric buttons
1 Press the ALT button, then the [F8] (PAGE
MODE) button or the [F9] (EXTEND MODE)
button.
2 If you selected PAGE mode, press the [F1] (PREV
PAGE) button or [F2] (NEXT PAGE) button (or
use the numeric buttons to enter the page number
in the data entry window, then press the [F8]
(PAGE SET) button).
3 Press the G or g button to move the cursor (z) to
the cue number to be registered.
To select the cue number directly by the
numeric buttons
Enter the cue number in the data entry window
with the numeric buttons, then press the [F9]
(CUENUM SET) button.
(Continued)
To select the cue number directly by
numeric buttons
Enter the cue number in the data entry window
with the numeric buttons, then press the [F9]
(CUENUM SET) button.
4 Press the JOG or VAR button, then rotate the
search dial to find the position where you want to
register the cue point.
5 Press the ENTRY button at the selected position.
The current tape address of the position where the
button is pressed is registered as a cue point.
Press the ENTRY button repeatedly to register the
cue point repeatedly. The cue number will
automatically increment by one each time.
Note
In PAGE mode, the cue number advances only within
the current page when the ENTRY button is pressed
repeatedly. For example, after cue number 19 is
registered and the ENTRY button is pressed, the cue
point 10 comes up as the next cue point. In EXTEND
mode, if you press the ENTRY button after registering,
for example, cue point No.99, the next cue point is
registered to cue point No.99 again.
CUE
TCR 00:00:00:00EOS 00:00:00:00
[I ÅM CUE TITLE ]
PÅGE: 0
1
2
3
4
5
6
7
8
9
NEXT
PÅGE
PREV
PÅGE
TELE
FILE
CUE
P-ROLL
PÅGE
SET
CUENUM
SET
M-CUE
CLEAR
REMAIN-T
L 113min
CH.COND
10 00:01:10:00
11 00:02:10:00
12 00:03:10:00
13 00:04:10:00
14 00:05:10:00
15 00:06:10:00
16 00:07:10:00
17 00:08:10:00
18 00:09:10:00
19 00:10:10:00
CUE
TCR 00:00:00:00EOS 00:00:00:00
[I ÅM CUE TITLE ]
PÅGE: 0
1
2
3
4
5
6
7
8
9
NEXT
PÅGE
PREV
PÅGE
TELE
FILE
CUE
P-ROLL
PÅGE
SET
CUENUM
SET
M-CUE
CLEAR
REMAIN-T
L 113min
CH.COND
10 00:01:10:00
11 00:02:10:00
12 00:03:10:00
13 00:04:10:00
14 00:05:10:00
15 00:06:10:00
16 00:07:10:00
17 00:08:10:00
18 00:09:10:00
19 00:10:10:00
1
3
24
5
