Chapter 4 Menu Settings 4-35
Chapter 4 Menu Settings
Button Indication Function

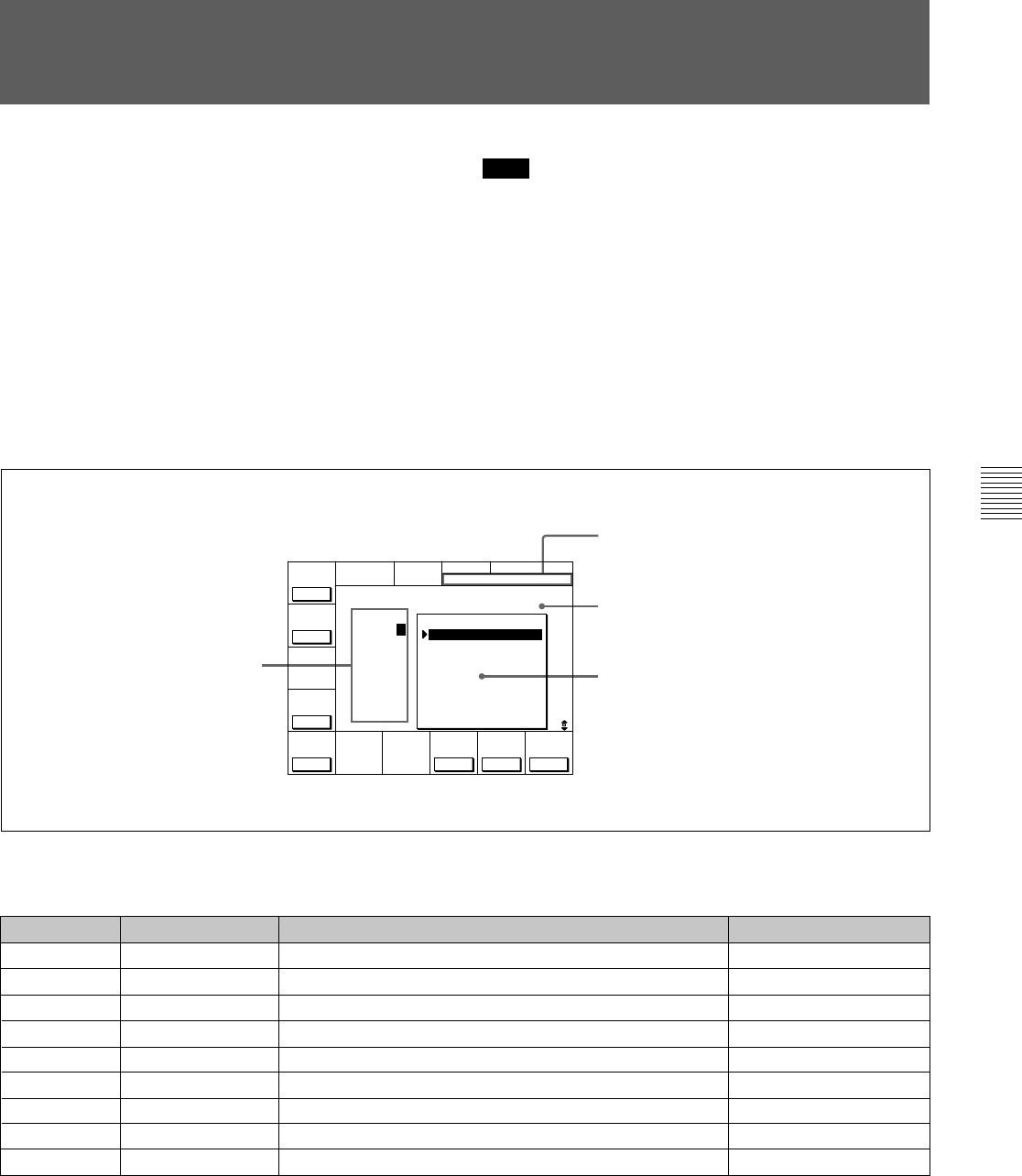

CUE menu display
4-4 CUE Menu
The HDW-F500 allows you to register up to 100 cue
points (0 to 99), and to manage cue points in groups of
10 (per page).
Cue point settings, deletions, and page settings are
done through the CUE menu.
For details on storing cue point data, refer to “4-1-5
Memory Card Function” on page 4-6.
To activate the CUE menu
Press the CUE button.
Note
Cue point data is factory set to be erased when a
cassette is inserted.
To select whether to erase cue point data
when a cassette is inserted.
Press the [F10] (M-CUE CLEAR) button to select
whether to erase cue point data when a cassette is
inserted.
on: Erase cue point data.
off: Do not erase cue point data.
[F1]
[F2]
[F4]
PREV PAGE Shows the previous page.
NEXT PAGE Shows the next page.
TELE FILE Opens the TELE FILE menu.
Settings
Data entry window
Title
Cue point indication
Page number indication
CUE menu
[F10]
[F9]
[F5]
[F8]
CUE P-ROLL
Specifies the preroll time to a cue point.
PAGE SET Specifies the page number.
CUENUM SET Specifies the cue number.
M-CUE CLEAR Erases cue point data when a cassette is inserted.
CUE
TCR 00:00:00:00EOS 00:00:00:00
[I ÅM CUE TITLE ]
PÅGE: 0
1
10 00:01:10:00
11 00:02:10:00
12 00:03:10:00
13 00:04:10:00
14 00:05:10:00
15 00:06:10:00
16 00:07:10:00
17 00:08:10:00
18 00:09:10:00
19 00:10:10:00
2
3
4
5
6
7
8
9
NEXT
PÅGE
PREV
PÅGE
TELE
FILE
CUE
P-ROLL
PÅGE
SET
CUENUM
SET
M-CUE
CLEAR
REMAIN-T
L 113min
CH.COND
ALT/[F8]
PAGE MODE Selects PAGE mode.
0 to 30 s
on, off
ALT/[F9]
EXTEND MODE
Selects EXTEND mode.
