4-3 TC Menu
4-34 Chapter 4 Menu Settings
Chapter 4 Menu Settings

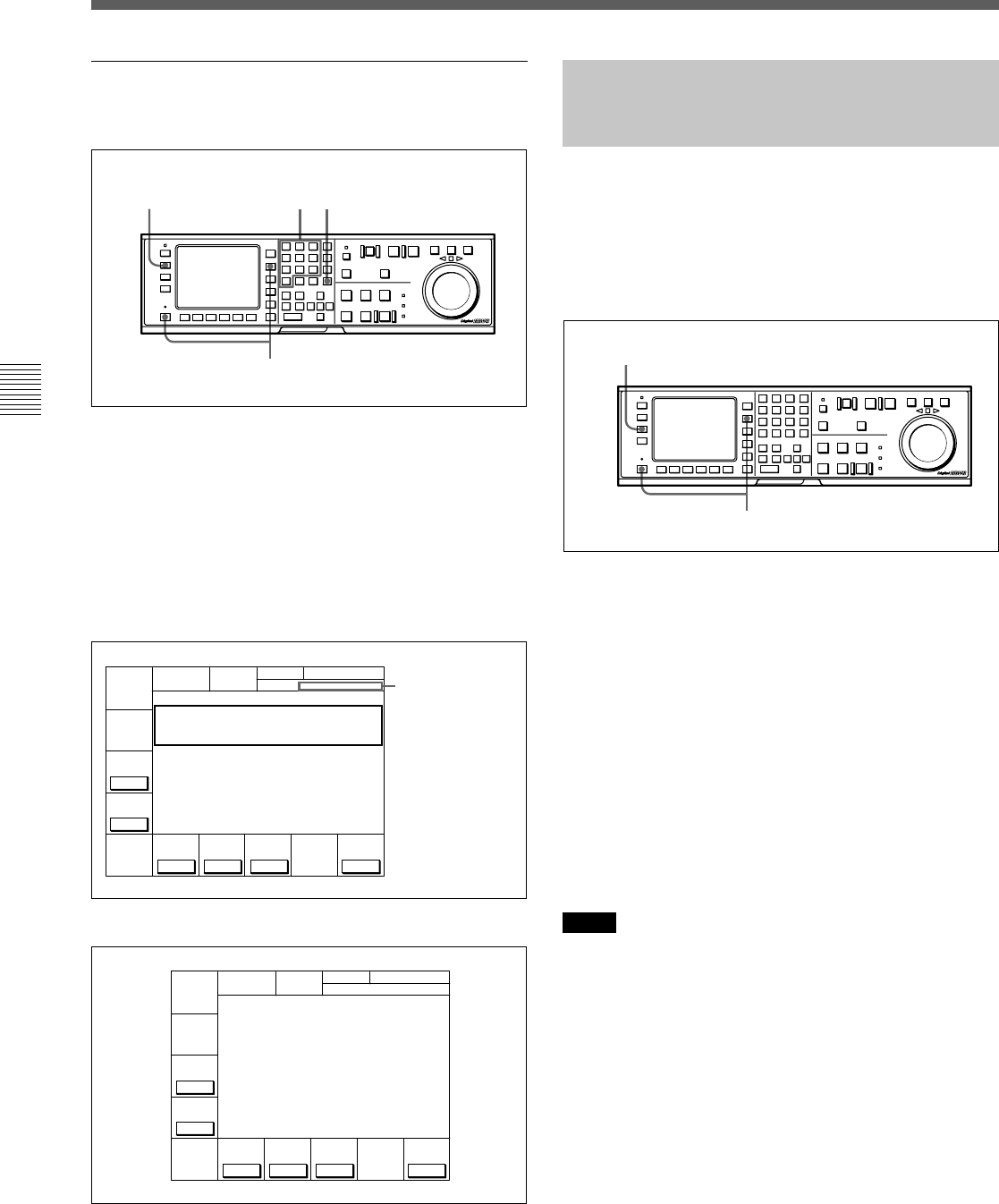

To preset the 25F STARTING TC using the
numeric buttons
1 Press the TC button, and then press the ALT
button.
The ALT+TC menu appears.
2 Press the [F3] (TCCONV MENU) button.
The TC CONVERT menu appears.
3 Enter the time code in the data entry window with
the numeric buttons.
4 Press the SET button to set the time code.
4-3-15 Conversion of Time Code
During Playback in 24F Mode (TC
CONV)
When the cassette tape recorded in 25F mode is played
back in 24F mode (off-speed playback), it is possible
to convert 25-frame time code to the 24-frame time
code.
To convert the time code, follow the steps below.
1 Press the TC button, and then press the ALT
button.
The ALT+TC menu appears.
2 Press the [F3] (TCCONV MENU) button.
The TC CONVERT menu appears.
3 Press the [F3] (TC CONV) button to select “on.”
Each time you press the button, “on” and “off”
alternate.
on: 25-frame time code is converted to 24-frame time
code.
off: 25-frame time code is not converted to 24-frame
time code.
Notes
• This setting is only active when the frame frequency
of the unit is 23.98PsF or 24PsF.
• This setting is effective only for the VITC and time
code of SONY 9PIN protocol. From the TIME
CODE OUT connector, 25 frames time code is
output.
1
234
CH.COND
GREEN
TC CONVERT
25F STARTING TC
01
Ó
00
µ
00
ß
00
ƒ
25F JUMPING TC
22
Ó
00
µ
00
ß
00
ƒ
25F CURRENT TC
00
Ó
00
µ
00
ß
00
ƒ
ORG TC
DISP
TC
CONV
REMAIN-T
L 113min
START
TC PST
EXIT
START
TC ENT
JUMP
TC SEL
-3H
on
on
TCR 00:00:00:00
1
2,3
CH.COND
GREEN
TC CONVERT
25F STARTING TC
00Ó 00µ 00ß 00ƒ
25F JUMPING TC
21Ó 00µ 00ß 00ƒ
25F CURRENT TC
00Ó 00µ 00ß 00ƒ
ORG TC
DISP
TC
CONV
REMAIN-T
L 113min
START
TC PST
EXIT
START
TC ENT
JUMP
TC SEL
-3H
on
on
TCR 00:00:00:00
01 00 00 00
Data entry window
