Chapter 4 Menu Settings 4-33
Chapter 4 Menu Settings

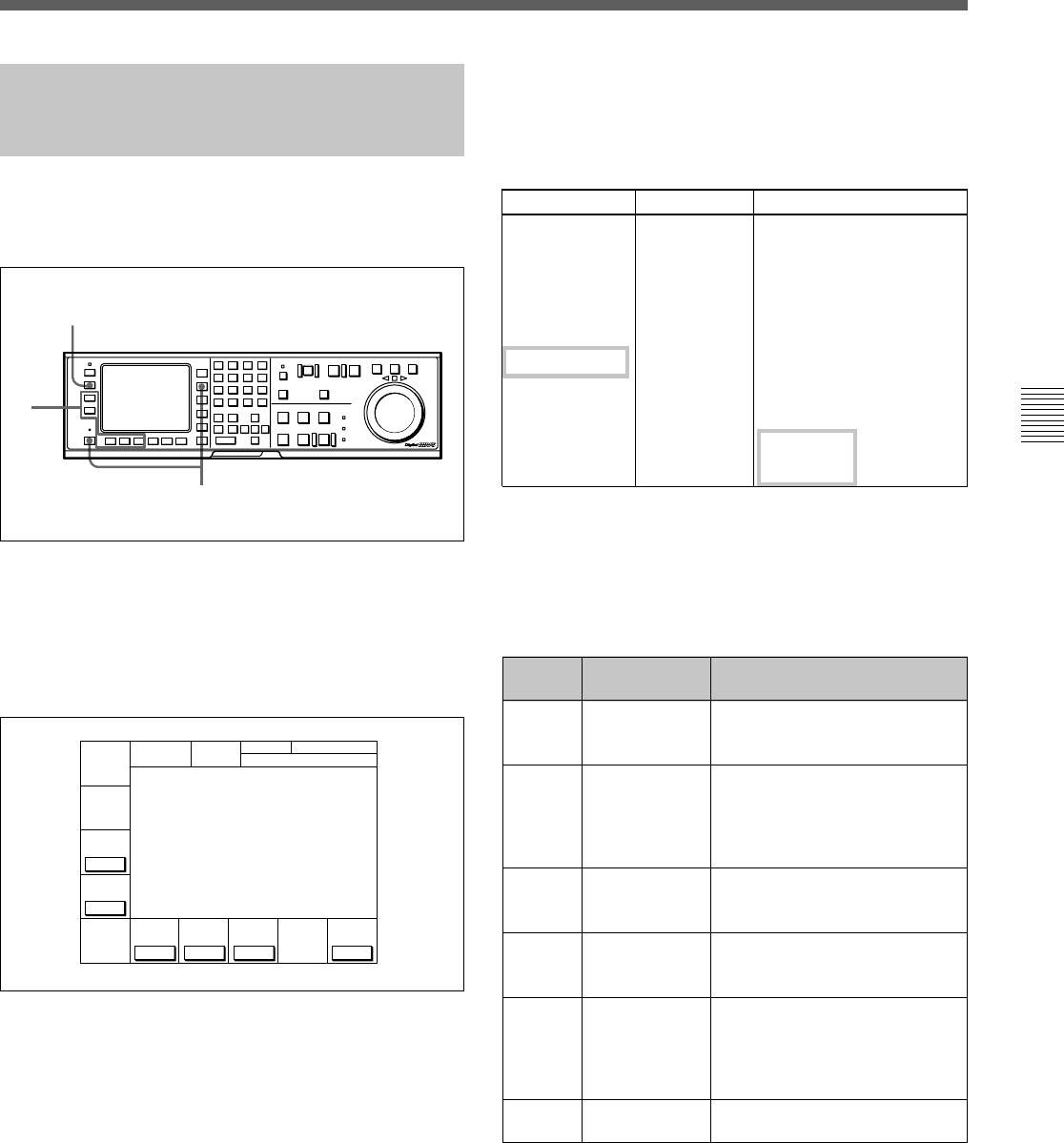

4-3-14 Presetting for Conversion
From 25-frame Into 24-frame
Time Code (TCCONV MENU)
When the VTR is operated in 23.98PsF/24PsF mode,
follow the steps below to make the settings for 24-
frame converted time code.
1 Press the TC button, and then press the ALT
button.
The ALT+TC menu appears.
2 Press the [F3] (TCCONV MENU) button.
The TC CONVERT menu appears.
25F STARTING TC: Time code used as a reference
when converting 25-frame time code into 24-
frame time code.
25F JUMPING TC: The loopback point for
converting 25-frame time code to 24-frame time
code with 25F STARTING TC as the reference
and the conversion done in both forward and
reverse directions. Note that the part of the 24-
frame time code before 25F JUMPING TC is not
consecutive with the part after 25F JUMPING TC.
The table below shows an example of how the 24-
frame time code is not consecutive when 25F
STARTING TC is set to 01:00:00:00 and 25F
JUMPING TC is set to 22:00:00:00 (i.e., JUMP TC
SEL is set to –3H).
25 Frames TC 24 Frames TC
JUMPING TC 22:00:00:00 22:52:30:00
::
01:00:01:24 01:00:01:00
01:00:00:23 01:00:00:23
::
STARTING TC 01:00:00:00 01:00:00:00
00:00:59:24 00:00:59:23
::
22:00:00:01 21:52:30:01
JUMPING TC 22:00:00:00 22:52:30:00
3 If necessary, use the function buttons to change the
settings.
For details on the settings made by these buttons,
see the table below.
TC CONVERT menu
Forward direction
Reverse direction
Non-consecutive
part
>
>
Button
Function
Indication
[F3] TC CONV Specifies whether the time code
is converted to 24-frame time
code or not.
[F4] ORG TC DISP Specifies whether the 25-frame
time code is displayed or not on
two lines in the HOME, TC, and
PF menus along with the
converted time code.
[F6] START TC
PST
Press to preset the 25F
STARTING TC using the
numeric buttons.
[F7] START TC
ENT
Press to enter the current time
code as the 25F STARTING
TC.
[F8] JUMP TC SEL Selects the 25F JUMPING TC
as an interval from 25F
STARTING TC.
Selectable values: –3H, –2H, –
1H, +1H, +2H, +3H, 0H
[F10] EXIT Select to exit the TC CONVERT
menu.
1
2
3
CH.COND
GREEN
TC CONVERT
25F STARTING TC
00
Ó
00
µ
00
ß
00
ƒ
25F JUMPING TC
21
Ó
00
µ
00
ß
00
ƒ
25F CURRENT TC
00
Ó
00
µ
00
ß
00
ƒ
ORG TC
DISP
TC
CONV
REMAIN-T
L 113min
START
TC PST
EXIT
START
TC ENT
JUMP
TC SEL
-3H
on
on
TCR 00:00:00:00
