4-3 TC Menu
4-32 Chapter 4 Menu Settings
Chapter 4 Menu Settings
When remaining time is 23 minutes.
When remaining time is five minutes.
When remaining time is 100 minutes or over.
To display remaining time on the tape
Use the 628.REMAIN TIME DISPLAY to display
remaining time on the tape.
off: Do not display remaining time.
10min: Display remaining time when it is 10
minutes or less.
on: Always display remaining time.

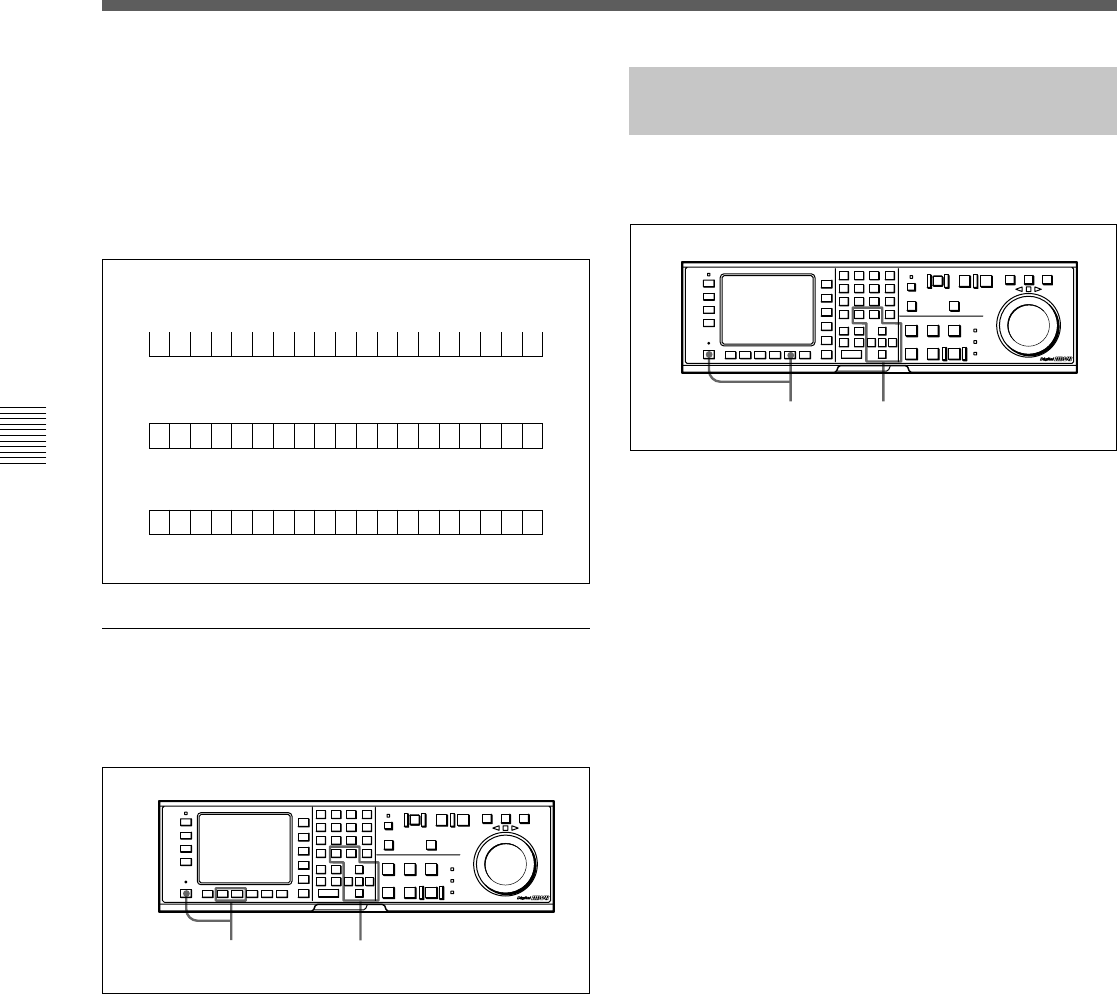

Examples of remaining time display
Changing the superimpose position
The superimpose position can be set to 16 different
positions in the horizontal directions (0-15) and 24
different positions in the vertical directions (0-23).
1 Press the ALT/[F7] (CHARA H-POS) button to
change the horizontal position and the [F8]
(CHARA V-POS) to change the vertical position.
The setting display part is lit.
2 Use the [<] and [>] buttons to change the value.
The + and – buttons can also be used.
3 Press the ALT/[F7] (CHARA H-POS) button or the
[F8] (CHARA V-POS) button. The positions are
set and the setting display disappears.
The positions are also set if another menu is
selected.
4-3-13 Setting the VITC Insertion
Line (VITC POS-1/POS-2)
VITC signals can be inserted at two positions in the
output signal from the HD-SD converter.
Setting the VITC insertion line (VITC POS-1/POS-2)
1 Press the ALT button, then the [F9] (VITC POS-1)
button.
The setting display part is lit.
2 Press the G or g button to change the value.
You can also use the + or – button.
3 Press the [F9] (VITC POS-1) button.
The data setting is completed and the setting
display disappears. Switching to another menu also
completes the setting display disappears.
Following the same steps but using the [F10] (VITC
POS-2) button, VITC can be inserted on another line.
TCR23594018.:::
*
TCR23594018.:::
*
TCR23594018.:::
*
R2
3
R
5
R -
-
1,3
2
2
1,3
