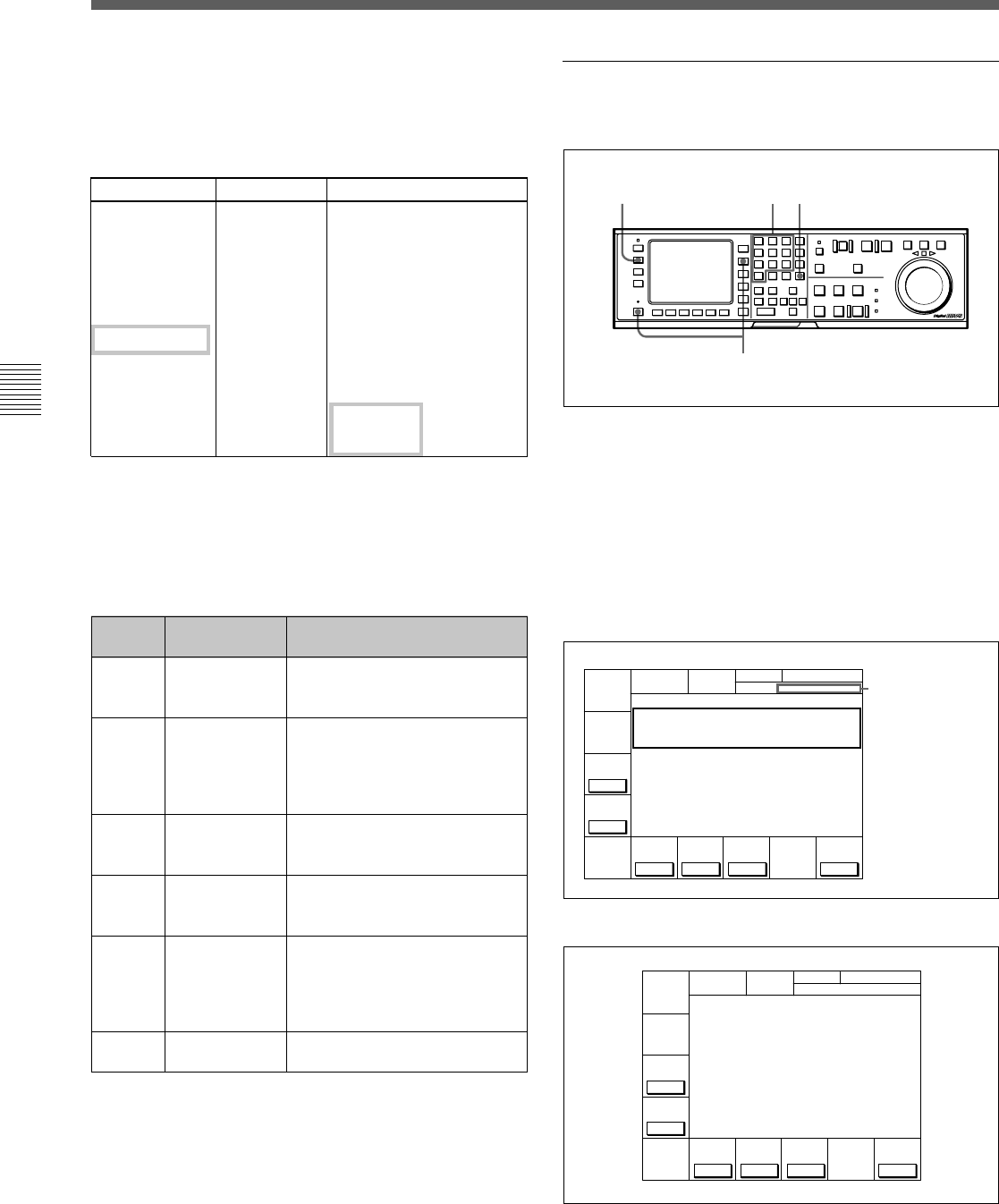

4-3 TC Menu
4-28 Chapter 4 Menu Settings
Chapter 4 Menu Settings
The table below shows an example of how the 25-
frame time code is not consecutive when 24F
STARTING TC is set to 01:00:00:00 and 24F
JUMPING TC is set to 22:00:00:00 (i.e., JUMP TC
SEL is set to –3H).
24 Frames TC 25 Frames TC
JUMPING TC 22:00:00:00 20:09:36:00
::
01:00:01:01 01:00:01:00
01:00:01:00 01:00:00:24
::
STARTING TC 01:00:00:00 01:00:00:00
00:59:59:23 00:59:59:24
::
22:00:00:01 22:07:12:01
JUMPING TC 22:00:00:00 21:09:36:00
3 If necessary, use the function buttons to change the
settings.
For details on the settings made by these buttons,
see the table below.
TC CONVERT menu
Forward direction
Reverse direction
Non-consecutive
part
>
>
Button
Function
Indication
[F3] TC CONV Specifies whether the time code
is converted to 25-frame time
code or not.
[F4] ORG TC DISP Specifies whether the 24-frame
time code is displayed or not on
two lines in the HOME, TC, and
PF menus along with the
converted time code.
[F6] START TC
PST
Press to preset the 24F
STARTING TC using the
numeric buttons.
[F7] START TC
ENT
Press to enter the current time
code as the 24F STARTING
TC.
[F8] JUMP TC SEL Selects the 24F JUMPING TC
as an interval from 24F
STARTING TC.
Selectable values: –3H, –2H, –
1H, +1H, +2H, +3H, 0H
[F10] EXIT Select to exit the TC CONVERT
menu.
To preset the 24F STARTING TC using the
numeric buttons
1 Press the TC button, and then press the ALT
button.
The ALT+TC menu appears.
2 Press the [F3] (TCCONV MENU) button.
The TC CONVERT menu appears.
3 Enter the time code in the data entry window with
the numeric buttons.
4 Press the SET button to set the time code.
1
234
CH.COND
GREEN
TC CONVERT
24F STARTING TC
00Ó 00µ 00ß 00ƒ
24F JUMPING TC
21Ó 00µ 00ß 00ƒ
24F CURRENT TC
00Ó 00µ 00ß 00ƒ
ORG TC
DISP
TC
CONV
REMAIN-T
L 113min
START
TC PST
EXIT
START
TC ENT
JUMP
TC SEL
-3H
on
on
TCR 00:00:00:00
01 00 00 00
Data entry window
CH.COND
GREEN
TC CONVERT
24F STARTING TC
01
Ó
00
µ
00
ß
00
ƒ
24F JUMPING TC
22
Ó
00
µ
00
ß
00
ƒ
24F CURRENT TC
00
Ó
00
µ
00
ß
00
ƒ
ORG TC
DISP
TC
CONV
REMAIN-T
L 113min
START
TC PST
EXIT
START
TC ENT
JUMP
TC SEL
-3H
on
on
TCR 00:00:00:00
