4-3 TC Menu
4-20 Chapter 4 Menu Settings
Chapter 4 Menu Settings
4-3 TC Menu
The TC menu allows you to set time code-related
items through a single menu. The HOME, TC, PF1
and PF2 menus show information that includes the
VTR operation mode, time code of the current
position, and the time code type, etc.
To activate the TC menu
Press the TC button.
To change the TC menu page
Press the ALT button.

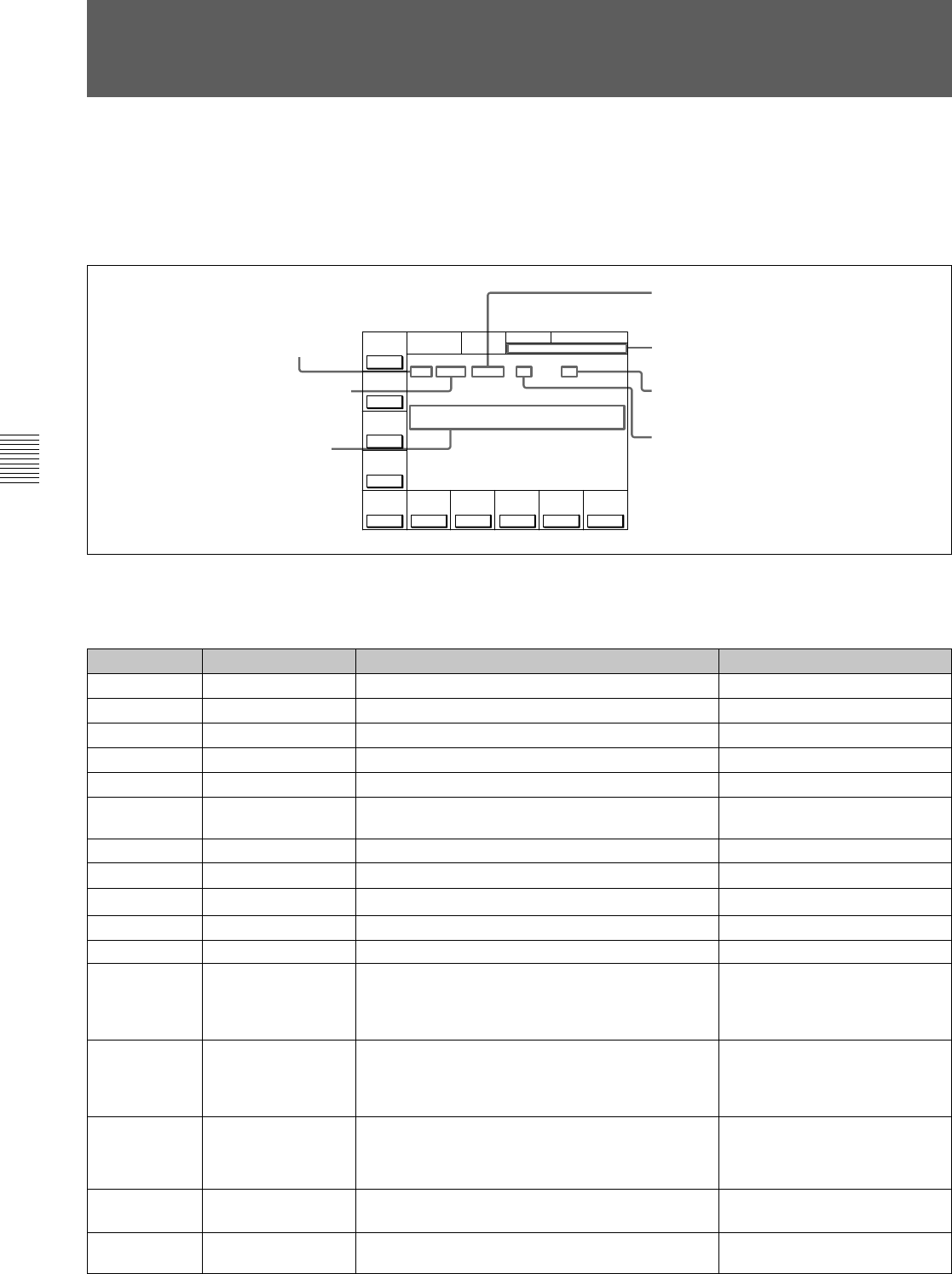

TC Menu
TCR: Time data type
(CTL/TCR/UBR/TCG/UBG/DUR)
DF: This appears when drop frame
mode data is being recorded or played
(DF/NDF).
F1: Field number (F1/F2)
For details on operation modes, refer to “4-2 HOME
Menu” on page 4-14.
INTRP (interpolation): This appears when time
code cannot be read correctly and correction
has been performed.
Data entry window
TC menu
Button
[F1]
[F2]
[F3]
[F4]
[F5]
[F6]
[F7]
[F8]
[F9]
TIMER SEL
TIMER RESET
TIMER SET
TIMER HOLD
TCR SEL
TCG SOURCE
TCG MODE
RUN MODE
DF/NDF
Function
Selects time data type.
Resets the time counter.
Sets the time data.
Holds the time counter.
Sets the time code reader.
Selects the internal/external time code generator.
Selects the running mode of the time code.
Selects drop frame mode.
Sets the time code generator.
Indication
[F10]
ALT/[F1]
ALT/[F2]
(when 23.98PsF/
24PsF mode is
selected)
VITC
TAPE TIMER
PDPSET MENU
Selects VITC input source
Selects the CTL display mode.
Activates the menu for presetting the pull-down
time code.
ALT/[F3]
(when 25PsF/50i
mode is
selected)
TCCONV MENU Activates the menu for converting the time code
(24F to 25F).
Settings
CTL, TC, UBIT
VITC, auto, LTC
int-LTC, int-VITC
ext-LTC, ext-VITC
regene, prst, auto
free, rec
DF, NDF, auto
TCG, V IN
+/–12H, 24H
ALT/[F3]
(when 23.98PsF/
24PsF mode is
selected)
TCCONV MENU Activates the menu for converting the time code
(25F to 24F).
ALT/[F4] PDTC DISP on, offSpecifies whether or not to display pull down time
code.
ÅIN 00:01:10:00 ÅOUT 00:02:10:00
PLAY LOCK
TIMER
SEL
TC
CH.COND
GREEN
TC
TCR VITC INTRP DF 2FD F1
IN 00:01:10:00 OUT 00:02:10:00
01Ó 04µ 58ß 00ƒ
TIMER
RESET
TIMER
SET
TIMER
HOLD
TC
SEL
VITC
TCG
SOURCE
int-L
TCG
MODE
prst
RUN
MODE
rec
DF/NDF
DF
VITC
TCG
REMAIN-T
L 113min
VITC: Time code type (LTC/VITC)
AIN: Time data for an AUDIO IN point
AOUT: Time data for an AUDIO OUT point
IN: Time data for an IN point
OUT: Time data for an OUT point
ALT/[F5] PD CHARA Specifies superimposition of character information
to the pull down output.
on, off
