Chapter 3 Setting Up the VTR 3-5
Chapter 3 Setting Up the VTR
This section describes how reference signals for the
video output and servo system are selected.
3-2 Reference Signals for Video Output and Servo
System
3-2-1
Reference Signals for Output Video

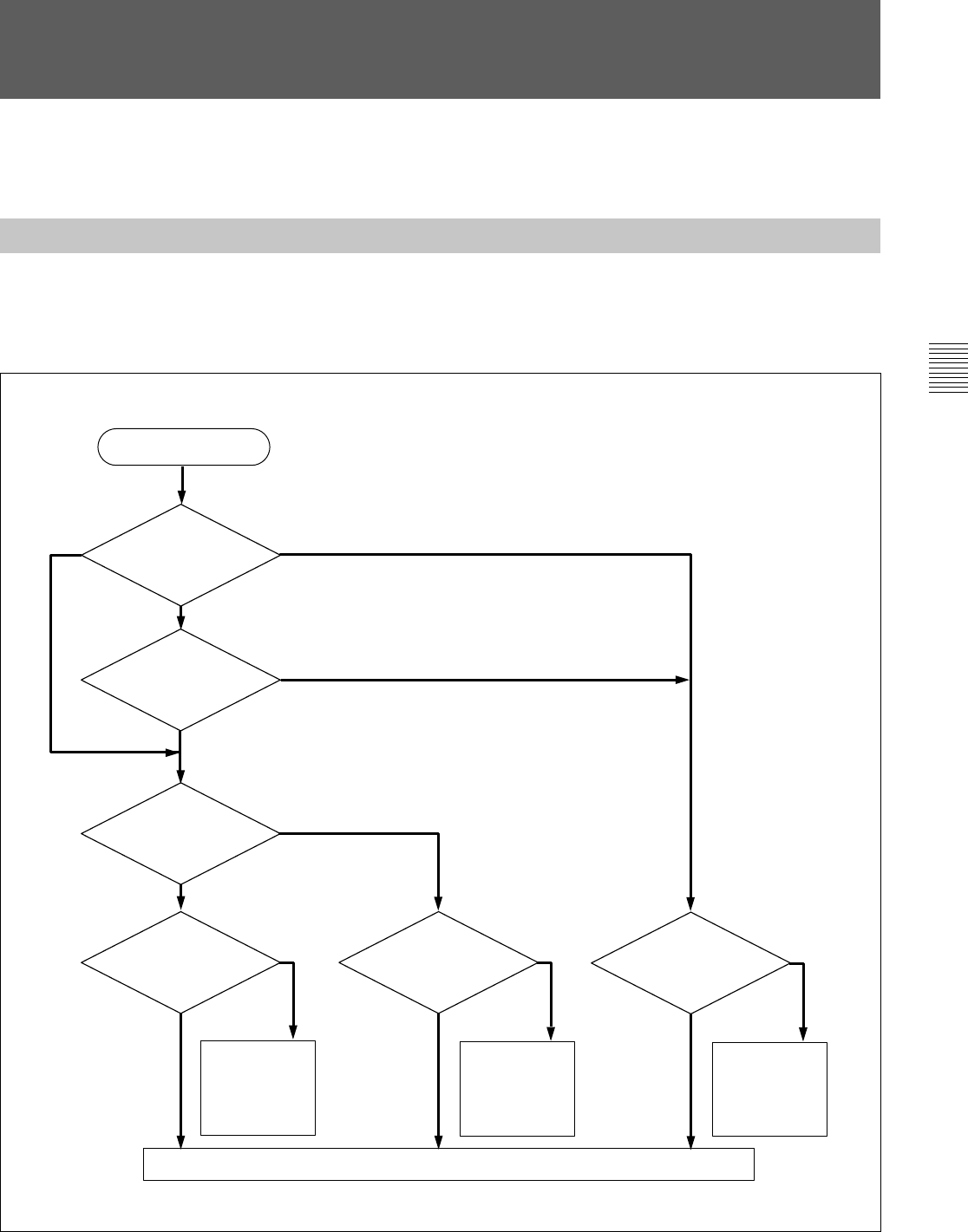

Depending on the operating condition, VTR SETUP
menu setting, and the input signal, the video output
signal from the VTR can be synchronized as follows.
Start
What is
the 005.SERVO/AV
REFERENCE select setting
in the VTR SETUP
menu?
ext
auto
input
Is the VTR currently
recording or is EDIT
PRESENT on?
Yes
No
What is the 006.
EXTERNAL REFERENCE
select setting in the VTR
SETUP menu?
extrn SD
extrn HD
Is there a signal of the
correct frequency on the
REF. IN HD connector?
Yes
No
Synchronization
with the reference
video signal input
to the REF. IN HD
connector
No external synchronization (synchronization is internal)
Is there a signal of the
correct frequency on the
REF. IN SD connector?
Yes
No
Synchronization
with the video
signal input to the
REF. IN SD
connector
Is there an input
signal on the connector
selected by the 701.VIDEO
INPUT select setting
in the VTR
SETUP?
Yes
No
Synchronization
with the video
signal input
designated by the
701.VIDEO INPUT
select setting
