Chapter 2 Locations and Functions of Parts and Controls 2-11
Chapter 2 Locations and Functions of Parts and Controls

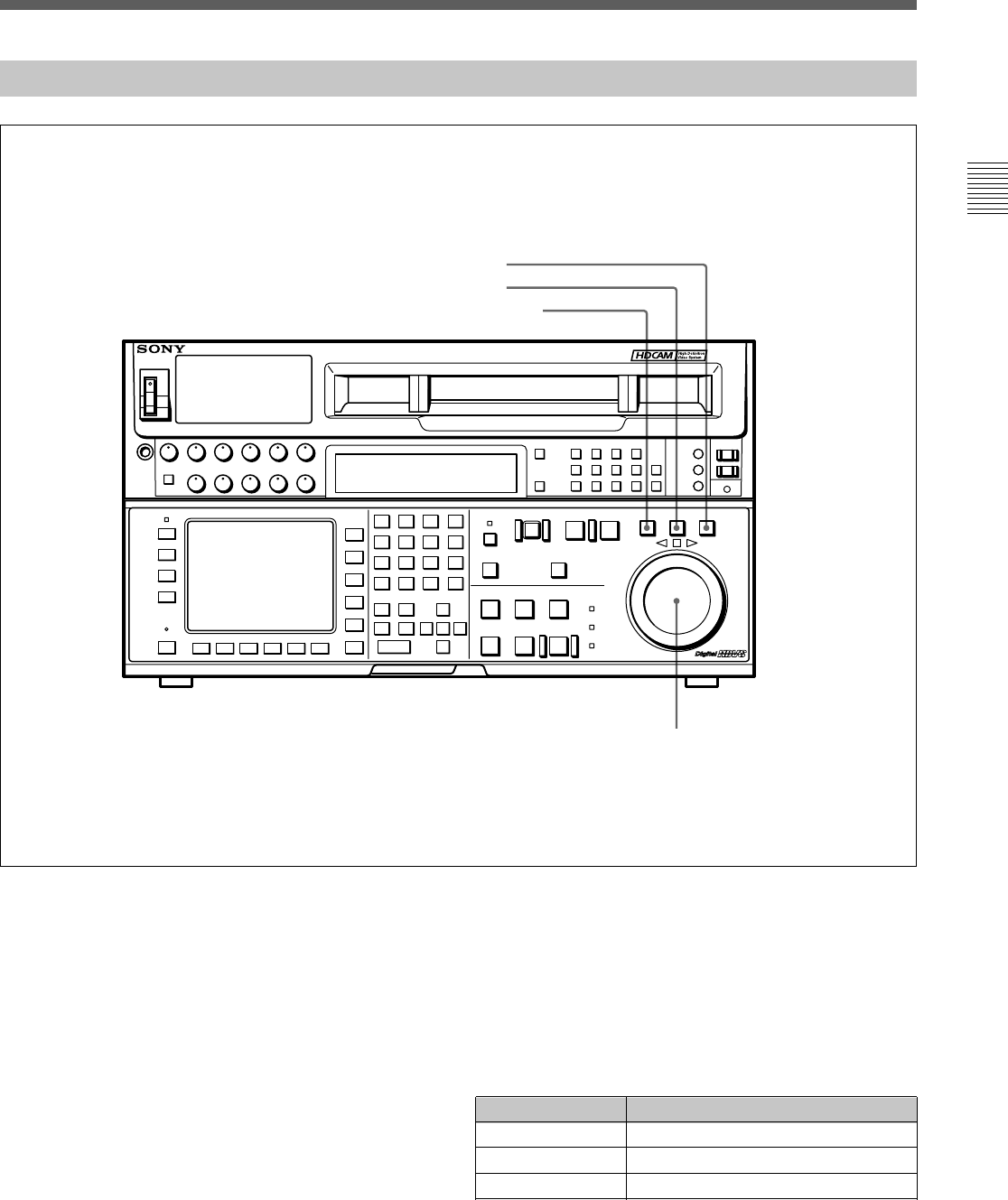

2-1-5 Lower Control Panel (Search Operations Section)
Lower control panel (search operations section)
#™ VAR button
Press to select variable speed playback mode for
noiseless playback in a maximum range of –1 to +2
times normal playback speed, in 51 steps. Playback
exceeding this speed range is not possible. The search
dial clicks at the positions for still-picture and normal
playback speed.
#£ JOG button
Press to select jog mode. In this mode, the button
lights up and playback at –1 to +1 or –2 to +2 times
normal playback speed is possible (determined by the
107. JOG DIAL RESPONSE setting in the VTR
SETUP menu). In this mode, the search dial does not
click.
#¢ SHUTTLE button
Press to enter shuttle mode. In this mode, the button
lights and playback corresponding to the angle of
rotation of the search dial. The playback speed is
different depending on the frame frequency of the unit.
In this mode, the search dial clicks at the positions for
0 (still-picture), –10 and +10 times normal playback
speed.
Frame frequency Playback speed
23.98/24 Hz Ranging from –60 to +60
25 Hz Ranging from –58 to +58
29.97/30 Hz Ranging from –50 to +50
DIGITAL VIDEO CASSETTE RECORDER HDW-F500
#™ VAR button
#£ JOG button
#¢ SHUTTLE button
#∞ Search dial
