MAINTENANCE INFOMATION DISPLAY
OPERATION
CH.COND DIAGNOSTICS
ERR
LOG
ROM
VER
MAINTE
EXEC
OPTION
INFO
EXIT
TCR 00;00;00;00
DRUM RUNNING
THREADING
TAPE TRAVEL
529HOURS
34HOURS
20HOURS
780TIMES
[ 26H]
[ 16H]
[ 449H]
WARNING - 02
LOST LOCK

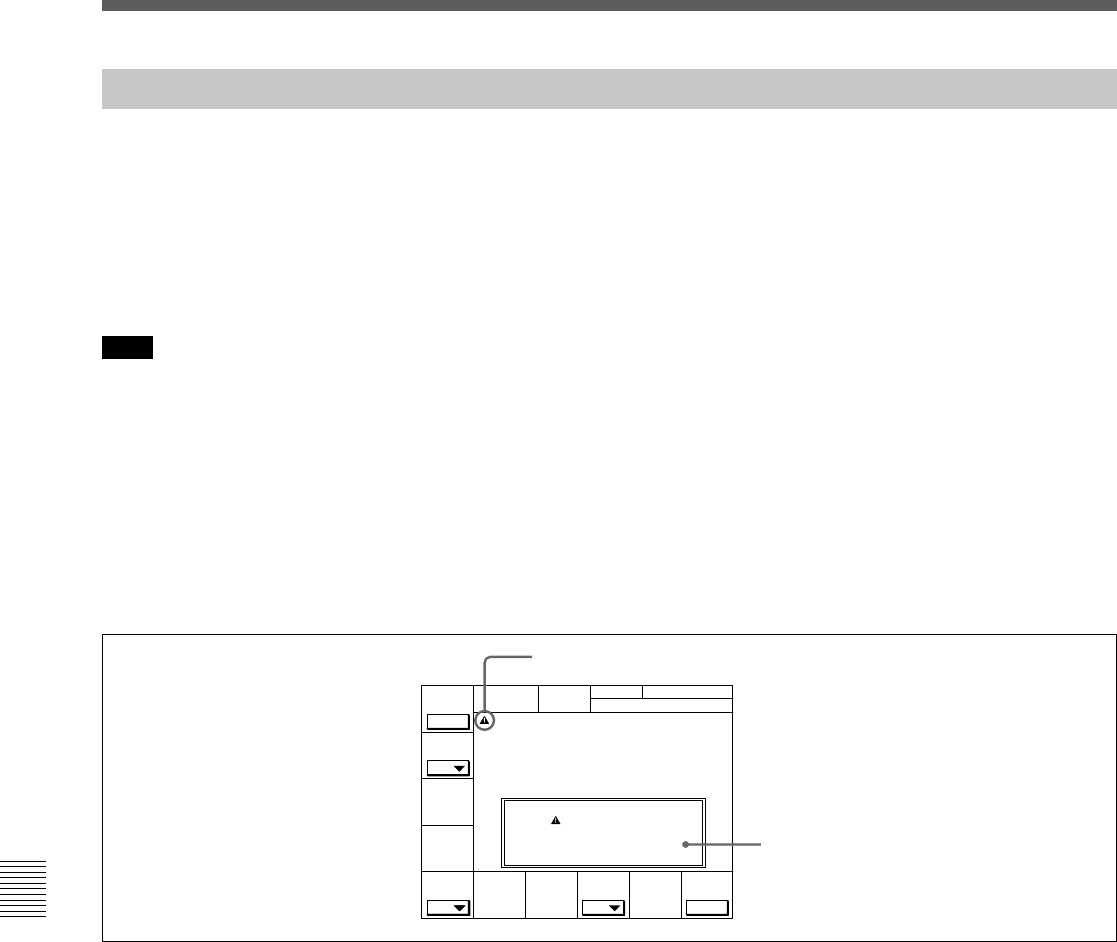

Warning mark
Warning message
Error Messages and Warning Messages
Warning Messages
When one of the problems described below is detected,
a warning mark is displayed in the upper left corner of
the display. Operation can continue even when the
mark is flashing.
When the mark is flashing, the warning message can
be displayed by using the tip of a small pointed object
to press the MAINTENANCE switch.
Note
The warning messages can be viewed in any menu
except the CUE or SET UP menu.
Only one message will be displayed even if there are
multiple messages, but a history of errors is kept in the
error log menu.
For more information about warning messages, refer to the
Maintenance Manual.
Use the displayed warning information to eliminate the
cause of the warning.
For more information about eliminating the cause of
warning, refer to the Maintenance Manual.
To automatically display a warning message
Whenever a warning occurs, change item
120.WARNING DISPLAY in the VTR SETUP menu
to on.
To clear a warning message
To cancel the display of a warning message, refer to
“Clearing warning messages” on page A-12.
01 NO EXTERNAL REFERENCE: There is no reference signal on the selected REF INPUT connector. The VTR is using an internal reference
signal.
02 LOST LOCK: Capstan servo lock was lost during playback, recording, or editing.
03 NO EXTERNAL SD REFERENCE ON PD: When item A05. PD EXT SD REF LOCK MODE in the VTR SETUP menu is set to “lock1” or
“lock2,” no external SD reference signal is input (only when the HKDV-507D is installed).
04 HD & SD REF ASYNCHRONOUS: When item A05. PD EXT SD REF LOCK MODE in the VTR SETUP menu is set to “lock1” or “lock2,”
HD reference signal and external SD reference signal are not synchronized (only when the HKDV-507D is installed).
08 NO SDI INPUT: A SDI input signal cannot be detected.
09 NO SDI AUDIO INPUT: No audio data detected in the SDI input signal.
10 VITC NOT READ: VITC cannot be correctly read from the tape.
11 AUDIO PLL UNLOCKED: Audio lock generator PLL not locked to the video reference signal.
14 NO PB RF SIGNAL: Playback heads cannot correctly read digital data from the tape.
15 INCONSISTENT EMPHASIS: Emphasis information on the tape is inconsistent with the system emphasis status.
16 INCONSISTENT FORMAT OF META DATA: The meta data being input and the meta data recorded on the tape have different formats.
17 PB FREQUENCY IS UNSUITABLE: The cassette is ejected automatically in line with the setting of item 018.AUTO EJECT LEVEL in the
VTR SETUP menu because the system frequency of the VTR and the frequency of the signal recorded on the tape do not match.
1C NO A1/A2 INPUT: No carrier detected on digital audio input on channels 1 and 2
20 NO A3/A4 INPUT: No carrier detected on digital audio input on channels 3 and 4
2D INVALID SDI DATA: SDI input signal data is invalid.
34 NO CASSETTE COMPARTMENT MODE: The cassette compartment does not operate during no cassette compartment mode.
3B NO LTC REPRODUCED: LTC signal not detected on the tape.
45 DT UNLOCKED: DT cannot be correctly traced during playback, recording, or editing.
50 PROCESSOR IS IN TEST MODE: The processor is in test mode.
55 VIDEO PLL UNLOCKED: Video lock generator PLL not locked to the video reference signal.
