A-6 Appendix
Appendix
Information on the operational status of the unit and
discrepancies between the field frequency of the tape
and that of the unit can be shown in the display.
Note
The operation information can be viewed in any menu
except the CUE or SET UP menu.
Selecting items to be displayed
Use 121.INFORMATION DISPLAY in the VTR
SETUP menu to select the items to be displayed.
The items and the functions that can be set by
item 121. are as follows:
SYSTEM FREQUENCY
off: The field frequency of both the unit and the tape
are not displayed.
diff: The field frequency of both the unit and the
tape are displayed only when they do not match.
ever: The field frequency of both the unit and the
tape are always displayed.
ACTIVE LINE (HD)
off: The effective scanning line number to be input
or played back, and to be output are not displayed.
diff: The effective scanning line number to be input
and output are displayed only when they do not
match.
ever: The effective scanning line number to be input
and output are always displayed.
EOS DISPLAY
off: EOS is not displayed.
on: EOS is displayed.
Operation Information Display
VIDEO INT SG
off:
The type of the test signal generated by the
internal video test signal generator is not displayed.
on: The type of the test signal generated by the
internal video test signal generator is displayed.
AUDIO INT SG
off: The operating status of the internal audio test
signal generator is not displayed.
on: The operating status of the internal audio test
signal generator is displayed.
META DATA
off: Settings are not displayed during the recording
of meta data.
on: Settings are displayed during the recording of
meta data.
Information displayed for each item
The information displayed for ACTIVE LINE (HD),
VIDEO INT SG and AUDIO INT SG are specified by
T02.INTERNAL VIDEO SIGNAL GENERATOR
(HD), T03.INTERNAL VIDEO SIGNAL
GENERATOR LINE SELECT and T04.INTERNAL
AUDIO SIGNAL GENERATOR.
The T02.INTERNAL VIDEO SIGNAL
GENERATOR (HD) settings and display
information
Setting of item T02 Displayed information
off off
COLOR BARS CB
MULTIBURST MB
10 STEPS 10STP
PULSE & BAR P&BAR
RAMP RAMP
BLACK BLACK
The T03.INTERNAL VIDEO SIGNAL GENERATOR
LINE SELECT settings and display information
Setting of item T03 Displayed information
1035 1035
1080 1080
Note
This setting is only active when the frame frequency of
the unit is 29.97 Hz or 30 Hz.

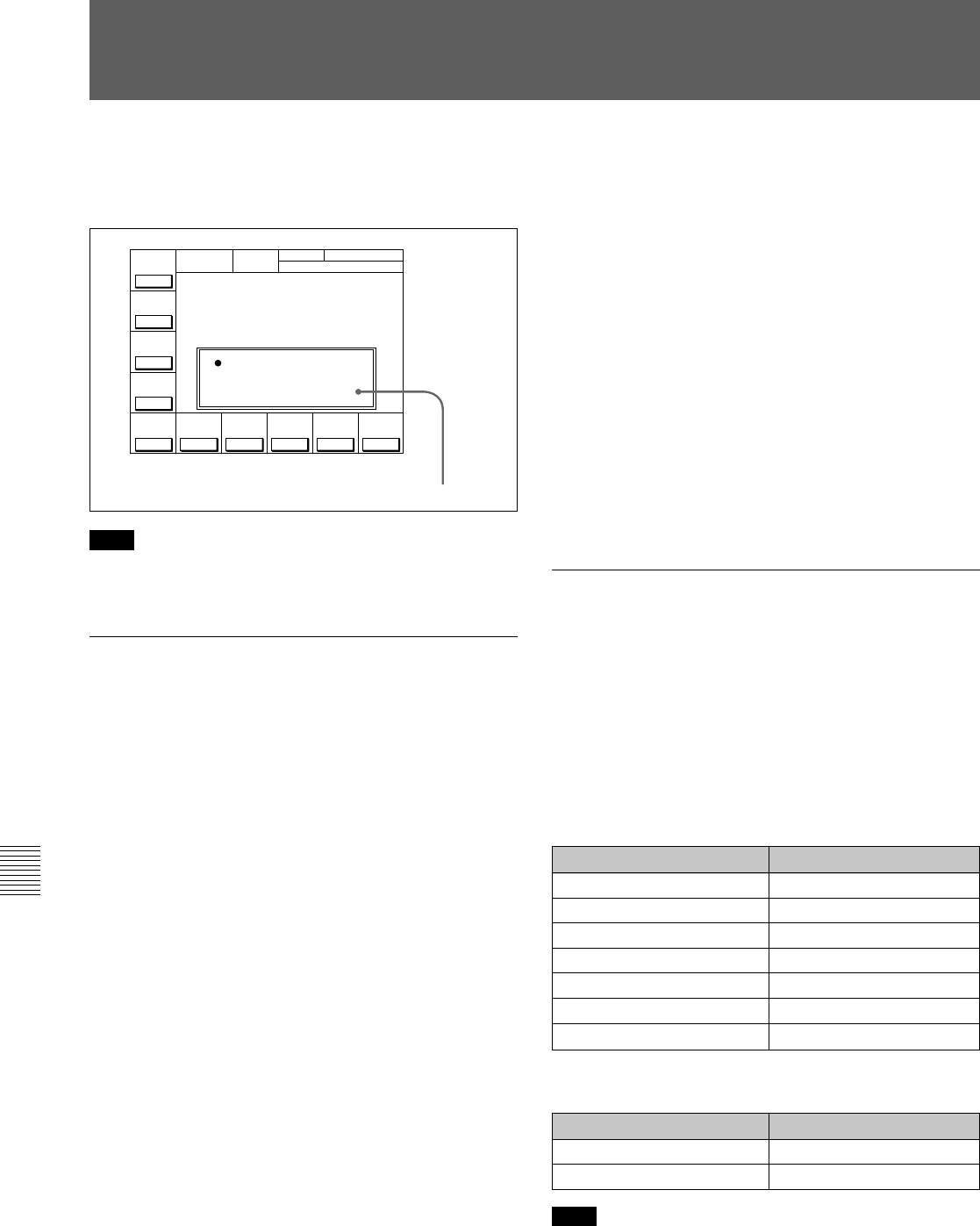

Operation information
ÅIN 00:00:00:00 ÅOUT 00:00:00:00
LOCK
PB/EE
CH.COND
GREEN
DIGITÅL HOME
TCR PLÅY 4FD F1
IN 00:00:00:00 OUT 00:00:00:00
01Ó 04µ 58ß 00ƒ
RECINH
off
ÅSSEM-
BLE
off
INS
TC
off
INS
VIDEO
off
INS
Å-CH1
off
INS
Å-CH2
off
INS
Å-CH3
off
INS
Å-CH4
off
INS
CUE
off
OPERATION INFO
FREQ: 60Hz∫ 60Hz
VIDEO INT SG: CB
AUDIO INT SG: silnc
