6-1 Basic Automatic Editing
6-6 Chapter 6 Editing
Chapter 6 Editing
$$
44
$$
44
4 Press the SET button to set the input data.
5 Press the IN (OUT, AUDIO IN or AUDIO OUT)
button.
The time data for the IN (OUT, AUDIO IN or
AUDIO OUT) point appears in the menu display.

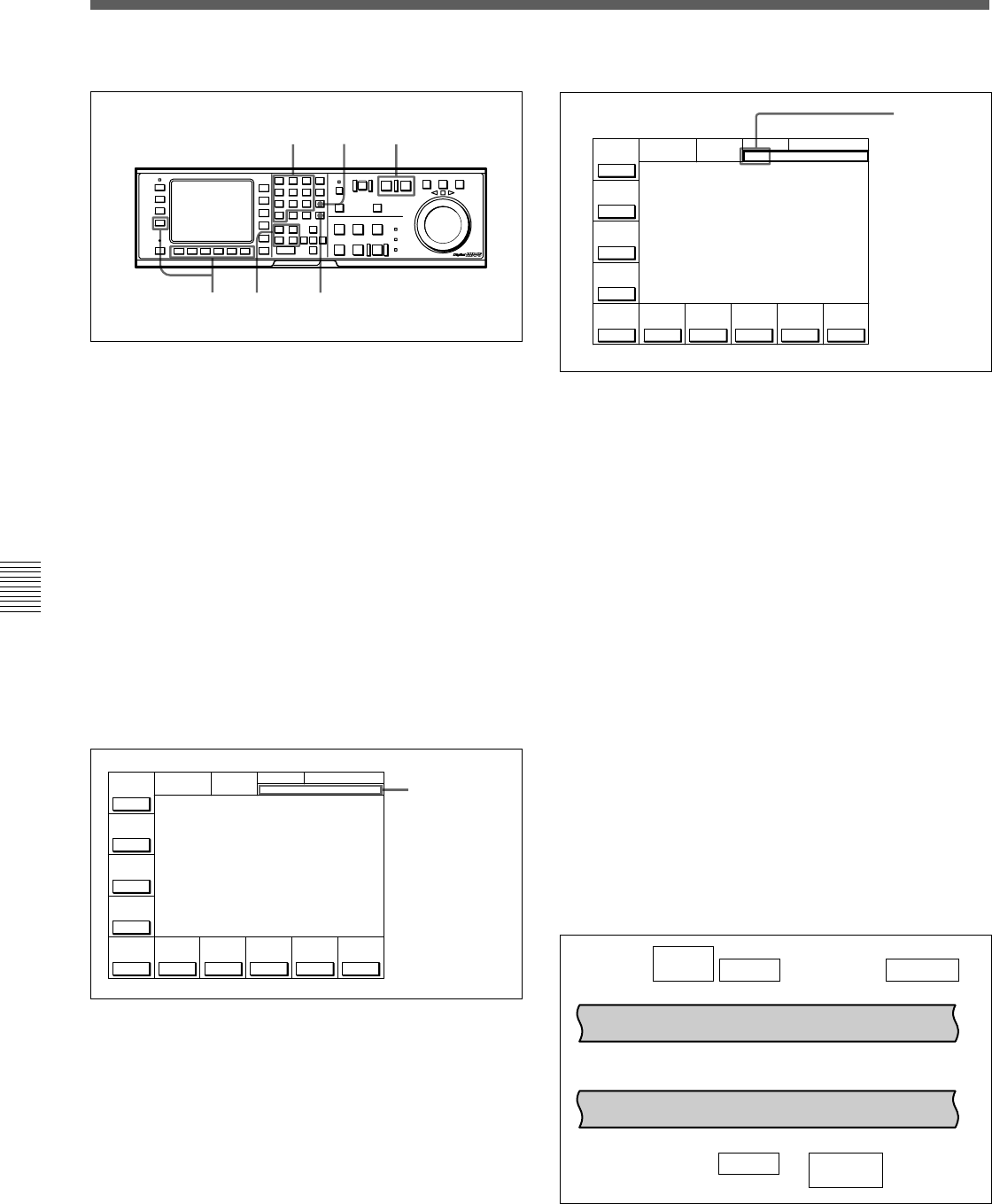

About automatic split edit point setting
Split editing requires a total of eight edit points: four
edit points for video editing (IN and OUT points for
both the recorder and player VTRs) and four edit points
for audio editing (AUDIO IN and OUT points for both
the recorder and player VTRs). However, as soon as
you set five edit points, the VTR automatically sets the
remaining three points. For example, if you set three
edit points for video (or audio) and two for audio (or
video), the remaining three points are automatically set,
regardless of whether these points are for the recorder
or player.
In the following example, the points enclosed in a box
have been set manually and the AUDIO OUT point for
the recorder VTR, and the AUDIO IN and OUT points
for the player VTR have been set automatically.
Note that whether set manually or automatically, all
edit points can be changed or deleted at any time.
Automatic split edit point setting
Setting edit points with the numeric buttons
Setting edit points with the numeric buttons
1 Press the appropriate INSERT button in HOME
menu ([F4] (INS TC), [F5] (INS VIDEO),
[F6] (INS A-CH1), [F7] (INS A-CH2), [F8] (INS
A-CH3), [F9] (INS A-CH4), [F10] (INS CUE)).
2 Press the RECORDER or PLAYER button to
select the VTR for which edit points are to be set.
The button lights up.
3 Enter the edit point data with the numeric buttons.
For example, to enter 01H00M30S00F, press 1, 0,
0, 3, 0, 0, 0. (The leading 0 is not required. When
the entered value is less than eight digits, the
leading digit(s) are set to 0 when you press the
SET button.)
To delete entered data
Press the CLR button.
CLR button
Input data
are displayed.
ÅIN 00:01:10:00 ÅOUT 00:02:10:00
PLAY LOCK
PB/EE
CH.COND
GREEN
HOME
TCR 2FD F1
IN 00:01:20:00 OUT 00:02:20:00
01Ó 04µ 58ß 00ƒ
RECINH
off
PB
ÅSSEM-
BLE
off
INS
TC
off
INS
VIDEO
off
INS
Å-CH1
off
INS
Å-CH2
off
INS
Å-CH3
off
INS
Å-CH4
off
INS
CUE
off
ÅIN 00:01:10:00 ÅOUT 00:02:10:00
PLÅYER
IN 00:01:20:00 OUT 00:02:20:00
01Ó 04µ 58ß 00ƒ
SET is
displayed.
PLAY LOCK
PB/EE
CH.COND
GREEN
SET 01 00 30 00
HOME
TCR 2FD F1
01Ó 04µ 58ß 00ƒ
RECINH
off
PB
ÅSSEM-
BLE
off
INS
TC
off
INS
VIDEO
off
INS
Å-CH1
off
INS
Å-CH2
off
INS
Å-CH3
off
INS
Å-CH4
off
INS
CUE
off
PLÅYER
01Ó 04µ 58ß 00ƒ
ÅIN 00:01:10:00 ÅOUT 00:02:10:00
IN 00:01:20:00 OUT 00:02:20:00
ÅIN 00:01:10:00 ÅOUT 00:02:10:00
IN 00:01:20:00 OUT 00:02:20:00
Recorder VTR
Player VTR
AUDIO
IN point
OUT point
AUDIO
IN point
IN point
IN point
OUT point
AUDIO
OUT point
AUDIO
OUT point
1
2
45
3
