6-1 Basic Automatic Editing
6-4 Chapter 6 Editing
Chapter 6 Editing
$$
44

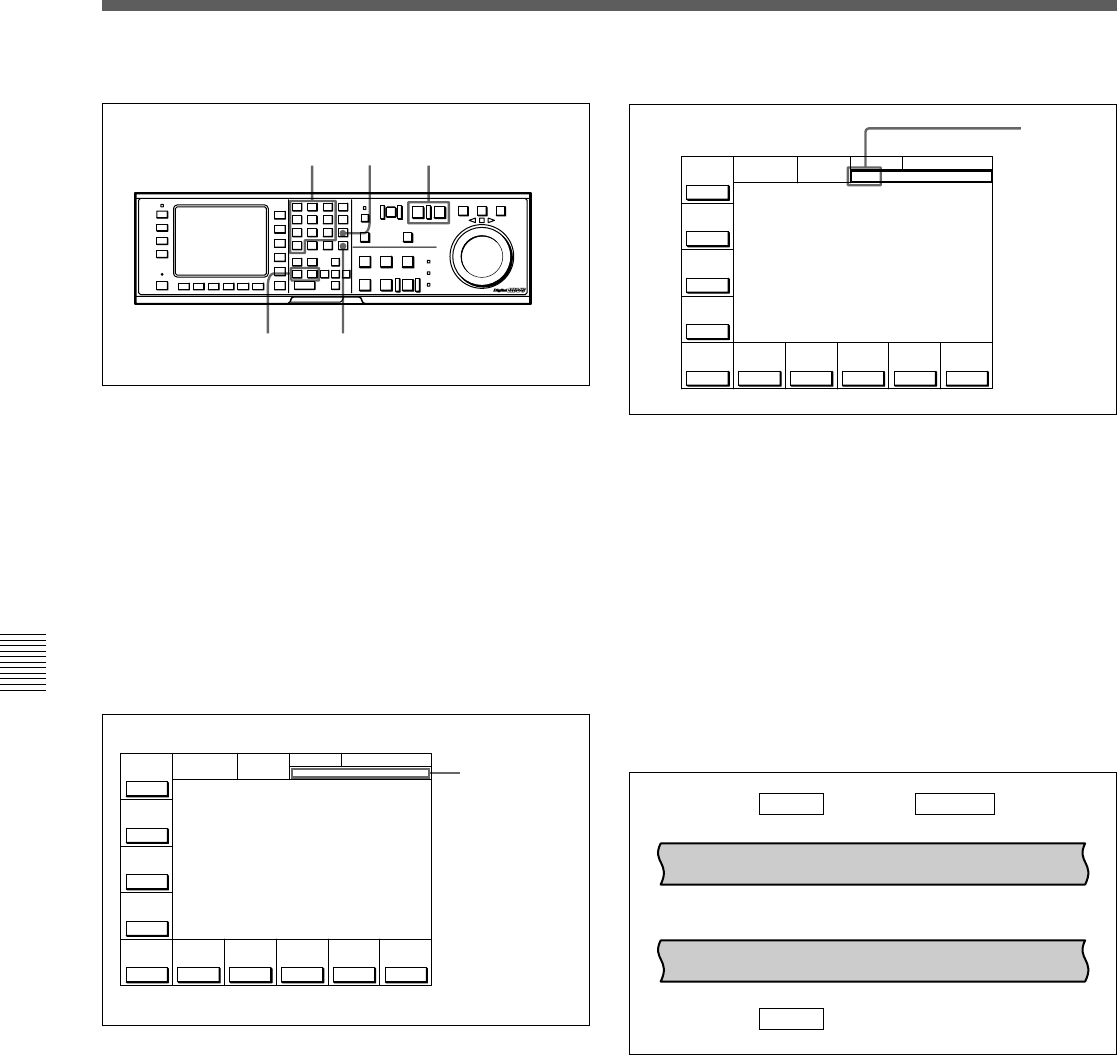

Setting edit points with the numeric buttons
Setting edit points with the numeric buttons
1 Press the RECORDER or PLAYER button to
select the VTR for which edit points are to be set.
The button lights up.
2 Enter the edit point data with the numeric buttons.
For example, to enter 01H00M30S00F, press 1, 0,
0, 3, 0, 0, 0. (The leading 0 is not required. When
the entered value is less than eight digits, the
leading digit(s) are set to 0 when you press the
SET button.)
To delete entered data
Press the CLR button.
3 Press the SET button to set the input data.
4 Press the IN (or OUT) button.
The time data for the IN (or OUT) point appears in
the menu display.
About automatic edit point setting
Editing requires a total of four edit points: IN and
OUT points for both the recorder and player VTRs.
However, as soon as you set three edit points, the VTR
automatically sets the fourth point.
In the figure below, the points enclosed in a box have
been set manually, while the OUT point for the player
VTR has been set automatically.
Automatic edit point setting
Whether set manually or automatically, all edit points
can be changed or deleted at any time.
SET is
displayed.
Recorder VTR
Player VTR
CLR button
IN point OUT point
IN point
OUT point
Entered data are
displayed.
ÅIN 00:01:10:00 ÅOUT 00:02:10:00
PLAY LOCK
PB/EE
CH.COND
GREEN
HOME
TCR 2FD F1
IN 00:01:10:00 OUT 00:02:10:00
01Ó 04µ 58ß 00ƒ
RECINH
off
PB
ÅSSEM-
BLE
off
INS
TC
off
INS
VIDEO
off
INS
Å-CH1
off
INS
Å-CH2
off
INS
Å-CH3
off
INS
Å-CH4
off
INS
CUE
off
ÅIN 00:01:10:00 ÅOUT 00:02:10:00
PLÅYER
IN 00:01:10:00 OUT 00:02:10:00
01Ó 04µ 58ß 00ƒ
ÅIN 00:01:10:00 ÅOUT 00:02:10:00
PLAY LOCK
PB/EE
CH.COND
GREEN
SET 01 00 30 00
HOME
TCR 2FD F1
IN 00:01:10:00 OUT 00:02:10:00
01Ó 04µ 58ß 00ƒ
RECINH
off
PB
ÅSSEM-
BLE
off
INS
TC
off
INS
VIDEO
off
INS
Å-CH1
off
INS
Å-CH2
off
INS
Å-CH3
off
INS
Å-CH4
off
INS
CUE
off
ÅIN 00:01:10:00 ÅOUT 00:02:10:00
PLÅYER
IN 00:01:10:00 OUT 00:02:10:00
01Ó 04µ 58ß 00ƒ
