5-10 Chapter 5 Recording/Playback
Chapter 5 Recording/Playback
4 Press the [F9](SYSTEM MENU) button.
5 Press the [F1](ACTIVE LINE) button to select off.
Pressing the button cycles the settings from 1035,
1080, off.
1035 and 1080 are used to activate the function to
convert the effective scanning line number.
6 Press the [F9](EXEC).
A message asking you to confirm the operation
appears in the display.
To cancel the execution
Press the [F8](CANCEL) button.
7 Press the [F9](EXEC).
The HDW-F500 is restarted automatically.
8 Press the SET UP button.
The VTR SETUP menu appears in the display.
9 Select on in the
732.SLOW PROCESS MODE of
the VTR SETUP menu.
on: Improve the vertical resolution during slow-
motion playback.
off: Do not improve the vertical resolution during
slow-motion playback.
5-3 Preparing for Playback

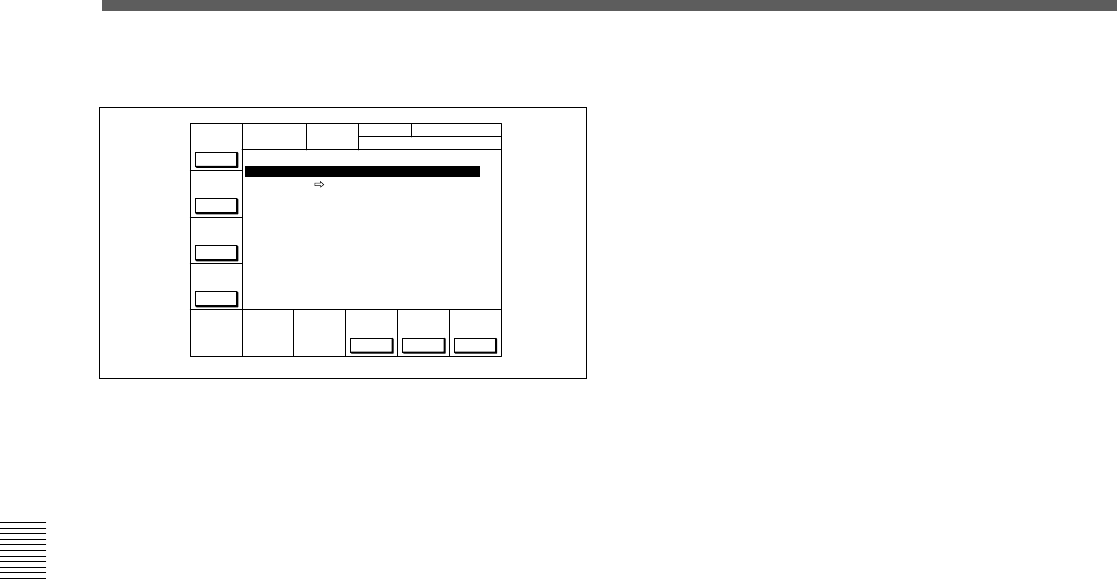

[F1]1080 1035 (CONVERT)
CH.COND
SYSTEM MENU
SYSTEM
FREQ
ACTIVE
LINE
D-CONV
SDI
EXIT
EXEC
CANCEL
[F2]SYSTEM FREQUENCY
[F8]Cancel
[F3]SDI OUT. ( D1 / D2 )
[F4]META DATA(FILM/C.C./USER)
SYSTEM MENU
[F9]Execute of Reset VTR System.
with conditions
STOP & not STANDBY
EJECT Tape.
off
MODE7
D1
META
DATA
FILM
MODE7 59.94i
