Chapter 5 Recording/Playback 5-7
Chapter 5 Recording/Playback

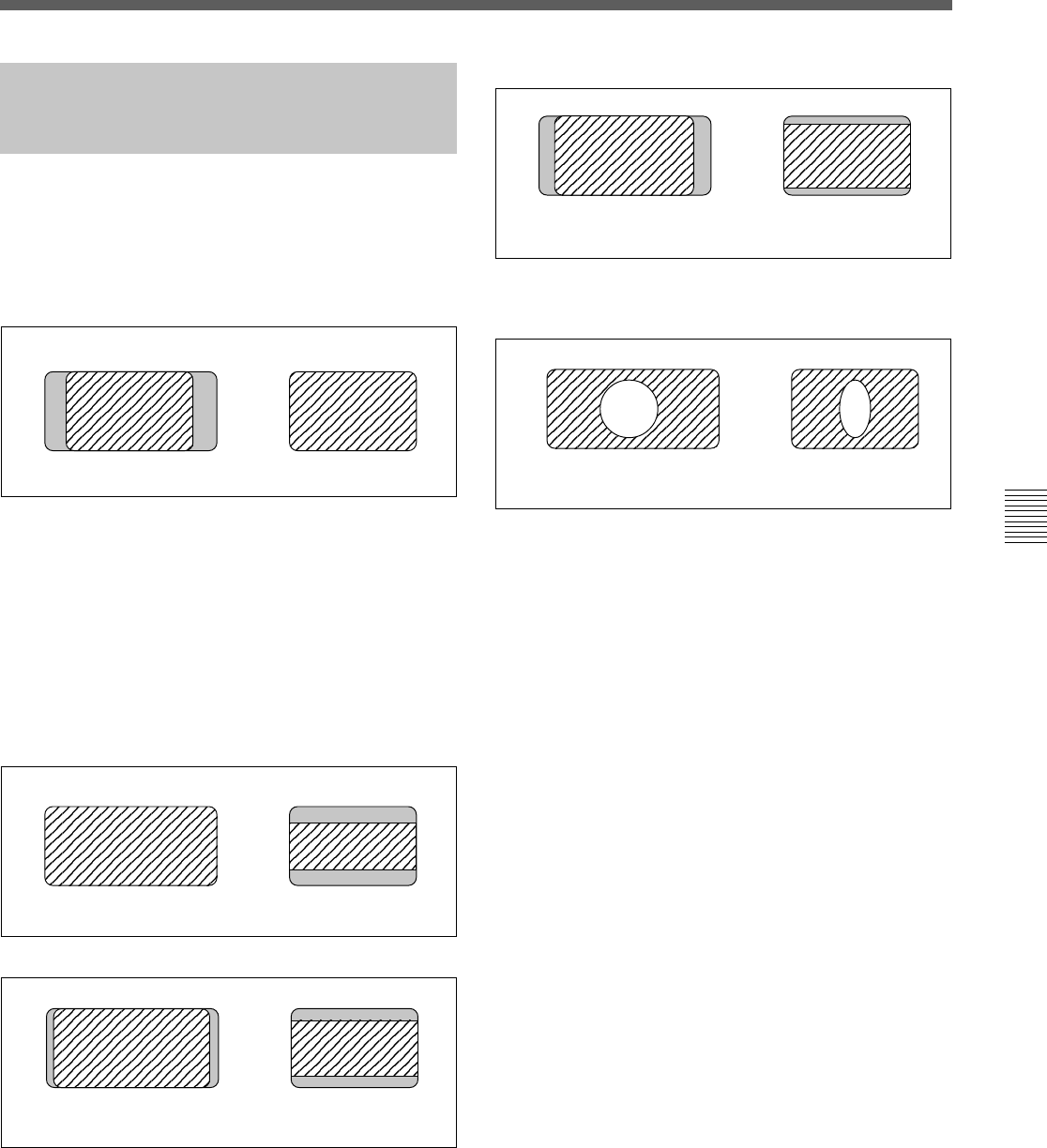

5-3-3
Selecting the HD-SD
Conversion Mode
(when HKDV-501A is installed)
When the optional HKDV-501A HD-SD Converter
Board is installed in the HDW-F500, the conversion
mode can be selected with setting the VTR SETUP
menu 754. DOWNCONVERTER MODE.
• Edge crop (CROP)
Horizontal adjustment of the edge cropping
Adjust the 766.H CROP POSITION setting in VTR
SETUP menu.
• Letter box mode (LETTER BOX)
When the letter box mode is selected, you can select
one of the following conversion methods through item
778.LETTER BOX MODE in the VTR SETUP menu.
When 16:9 is selected
When 14:9 is selected
When 13:9 is selected
• Squeeze mode (SQUEEZE)
HD SD
The signal is compressed, maintaining an aspect ratio of 16:9.
/
HD SD
One-fourth of the HD screen on each side is cut off.
,
/
HD SD
The sides of the HDVS image are cut and the signal is
compressed, changing the aspect ratio to 13:9.
/
HD SD
The sides of the HDVS image are cut and the signal is
compressed, changing the aspect ratio to 14:9.
/
HD SD
The sides of the HDVS image are cut and the signal is
compressed, changing the aspect ratio to 13:9.
/
